Intel Desktop Board DZ77GA-70K Technical Product Specification

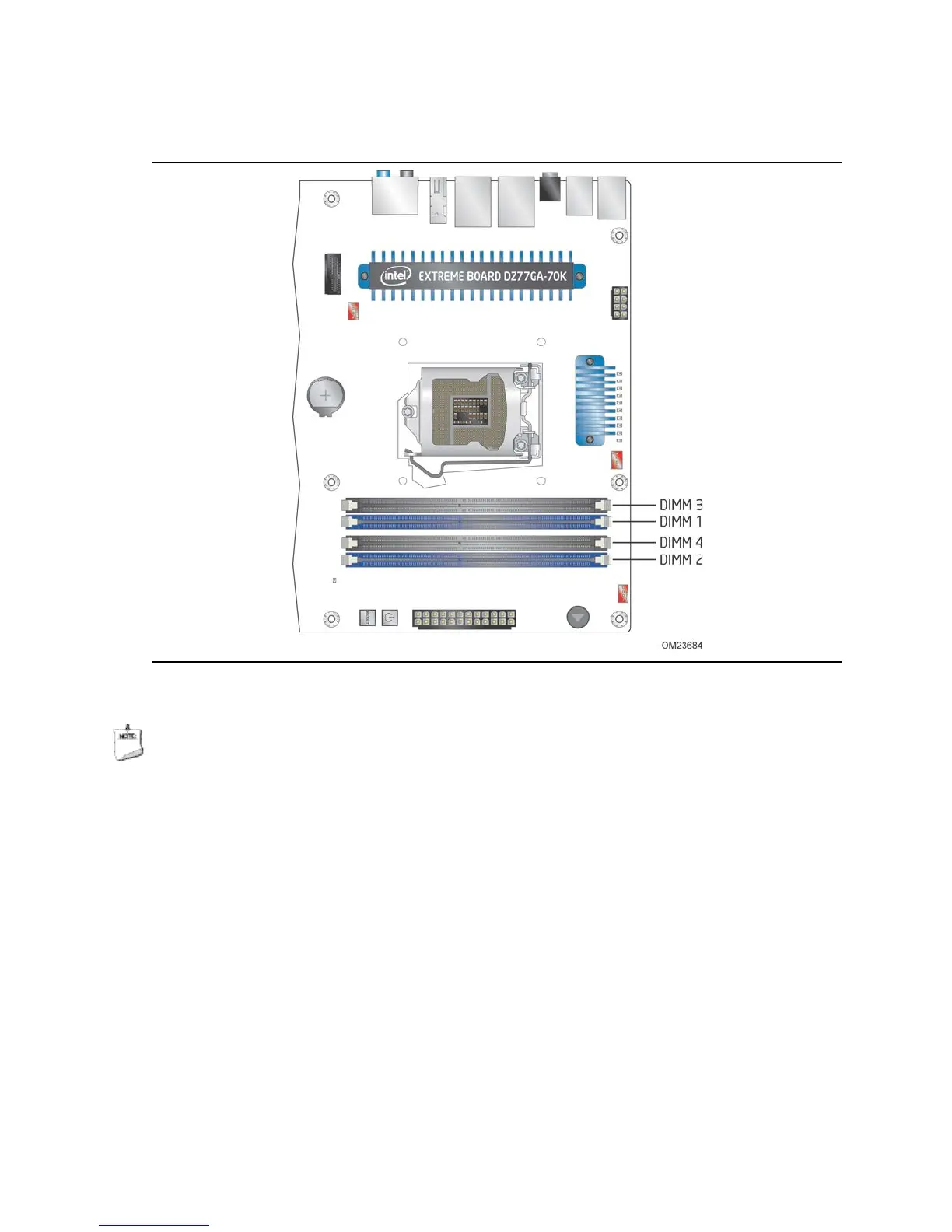

Figure 3 illustrates the DIMM configuration.

Figure 3. DIMM Configuration

NOTE

For best memory performance always install memory in the blue DIMM sockets if

installing only two DIMMs on your board.

Other manuals for Intel DZ77GA-70K

Need help?

Do you have a question about the Intel DZ77GA-70K and is the answer not in the manual?

General

Form Factor	ATX
Chipset	Intel Z77
Socket	LGA 1155
Memory Slots	4
Max Memory	32 GB
SATA 6Gb/s Ports	4
SATA 3Gb/s Ports	4
USB 3.0 Ports	4
USB 2.0 Ports	8
CrossFire Support	Yes
SLI Support	Yes
Memory Speed	DDR3 1600/1333/1066
PCI Express x16 Slots	2
PCI Express x1 Slots	2
LAN	Intel 82579V Gigabit Ethernet
Audio	7.1 Channel High Definition Audio
RAID Support	RAID 0, 1, 5, 10
PCI Slots	2
