Intel DZ77GA-70K User Manual

Product Description
45
1.12.2.12 Voltage Regulator (VR) Status LEDs
The VR status LEDs provide a real-time indication of how many processor VR phases
are active. During normal system operation the power requirements of the processor
can vary due to its power saving features. When the processor is in a low-power or
idle state it requires less power to be provided by the VR. The VR responds to the
lower power demand by shutting down unneeded phases thereby increasing overall
power efficiency. Each VR phase has an LED connected to it that indicates when that
phase is active. Figure 9 shows the location of the VR status LEDs.

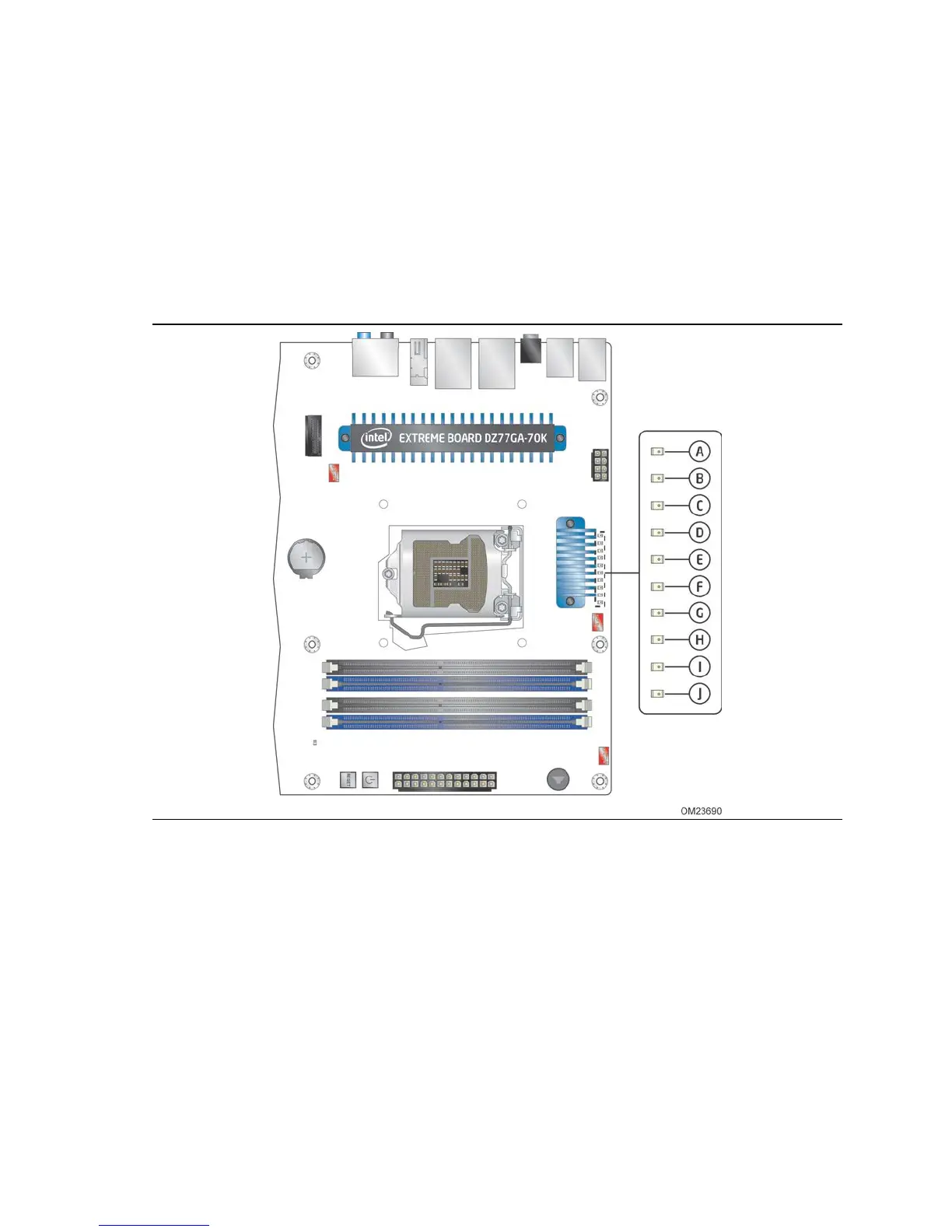

Figure 9. Location of the VR Status LEDs

Intel DZ77GA-70K Specifications

General

Form Factor	ATX
Chipset	Intel Z77
Socket	LGA 1155
Memory Slots	4
Max Memory	32 GB
SATA 6Gb/s Ports	4
SATA 3Gb/s Ports	4
USB 3.0 Ports	4
USB 2.0 Ports	8
CrossFire Support	Yes
SLI Support	Yes
Memory Speed	DDR3 1600/1333/1066
PCI Express x16 Slots	2
PCI Express x1 Slots	2
LAN	Intel 82579V Gigabit Ethernet
Audio	7.1 Channel High Definition Audio
RAID Support	RAID 0, 1, 5, 10
PCI Slots	2
