Intel DZ77GA-70K

Technical Reference
53
2.2.2 Component-side Connectors and Headers
Figure 14 shows the locations of the component-side connectors and headers.

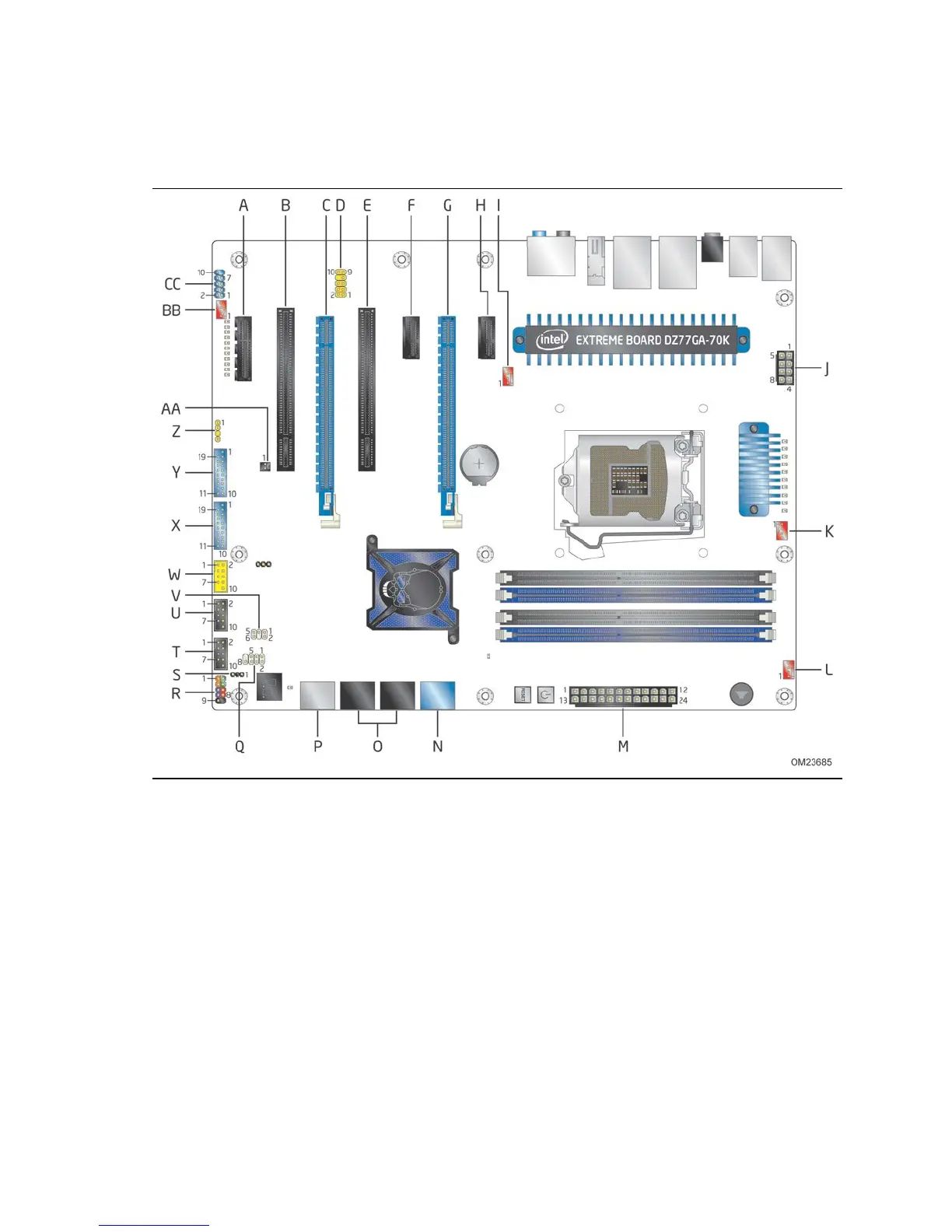

Figure 14. Component-side Connectors and Headers
Table 13 lists the component-side connectors and headers identified in Figure 14.
