Intel DZ77GA-70K

Product Description
15
1.1.2 Board Layout
Figure 1 shows the location of the major components on Intel Desktop Board
DZ77GA-70K.

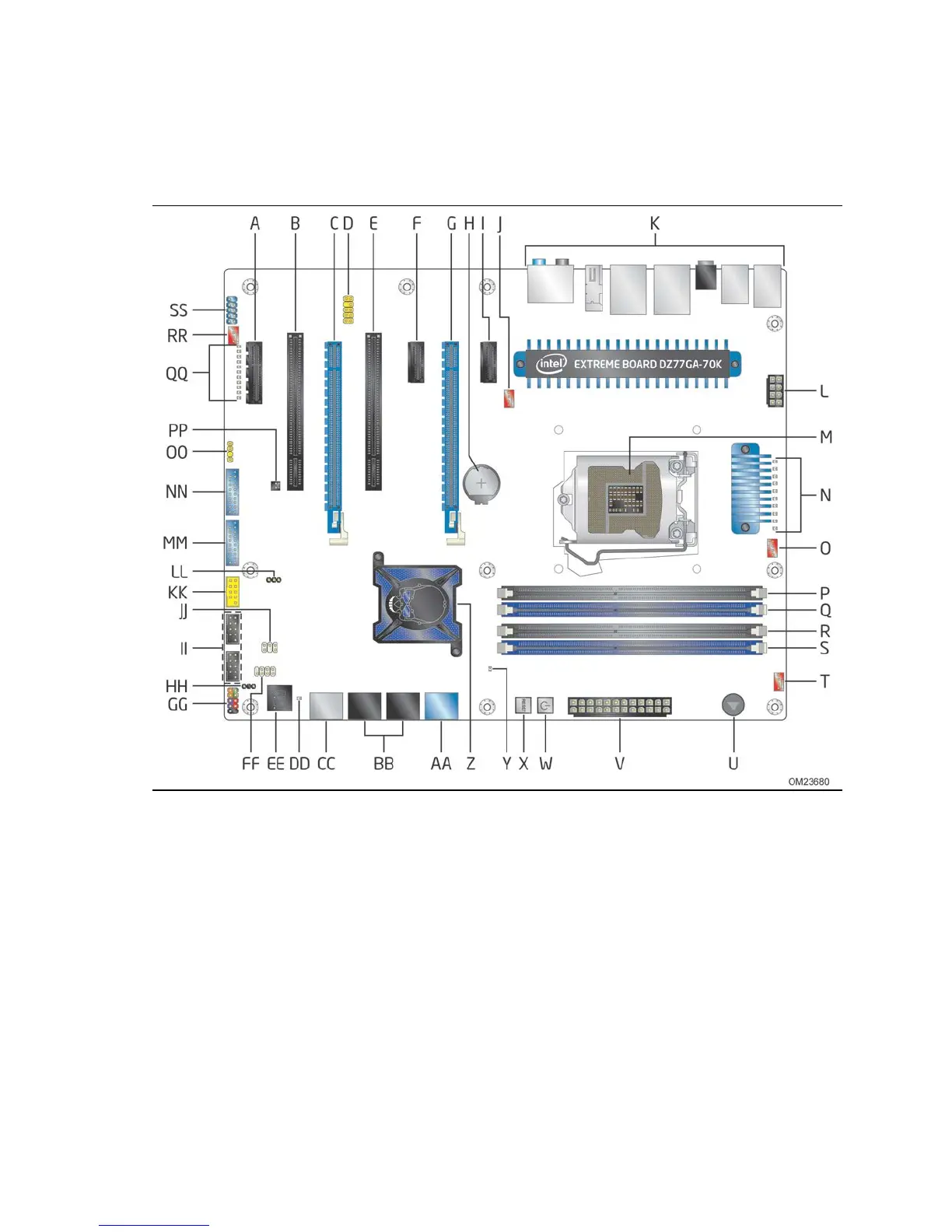

Figure 1. Major Board Components
Table 3 lists the components identified in Figure 1.
