Intel DZ77GA-70K

Technical Reference
69

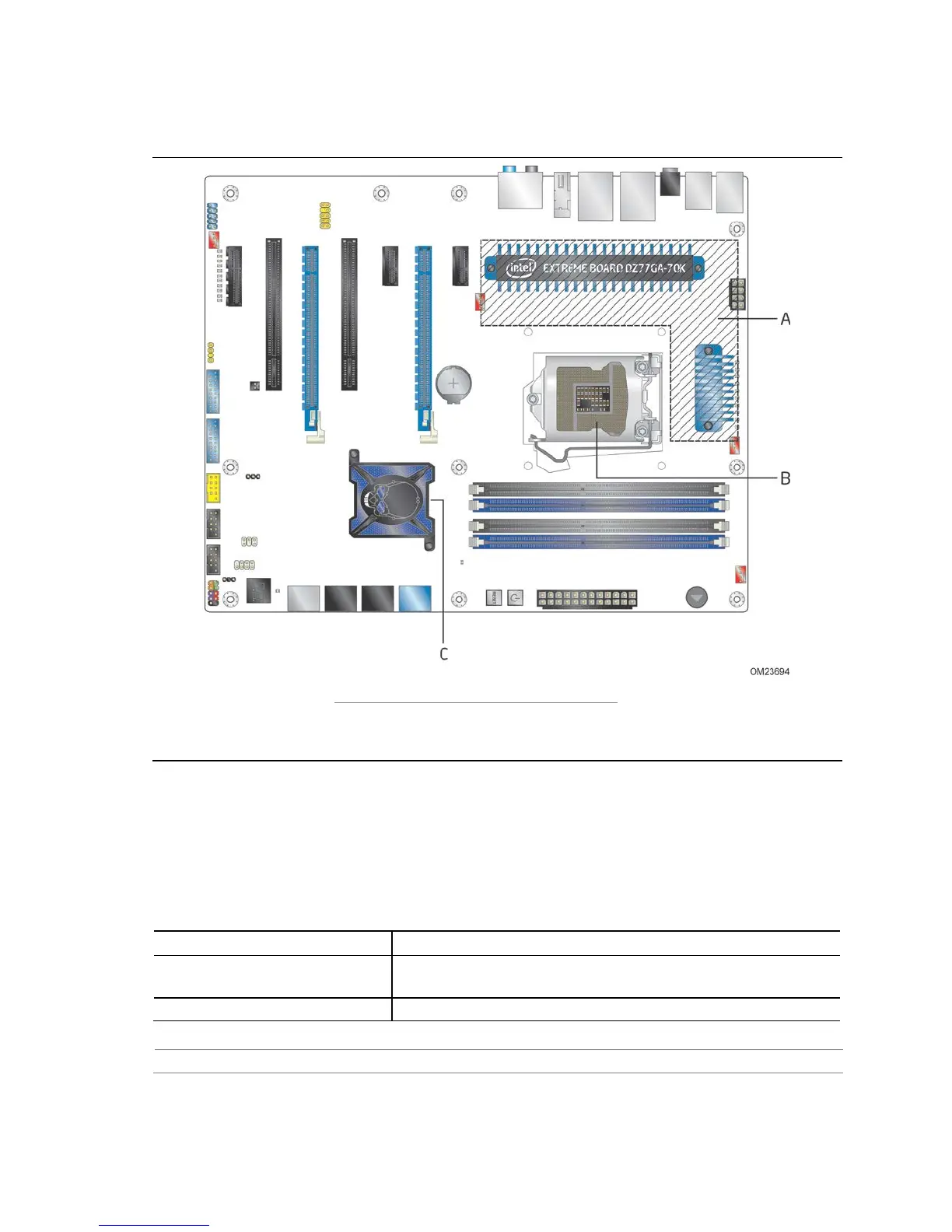

Figure 19 shows the locations of the localized high temperature zones.
Item Description
A Processor voltage regulator area
B Processor
C Intel Z77 Express Chipset
Figure 19. Localized High Temperature Zones
Table 34 provides maximum case temperatures for the components that are sensitive
to thermal changes. The operating temperature, current load, or operating frequency
could affect case temperatures. Maximum case temperatures are important when
considering proper airflow to cool the board.
Table 34. Thermal Considerations for Components
Component Maximum Case Temperature
Processor For processor case temperature, see processor datasheets and
processor specification updates
Intel Z77 Express Chipset 104
o
C (under bias)
For information about
Refer to
Processor datasheets and specification updates Section 1.2, page 19
