Intel DZ77GA-70K

Product Description
37
1.11.4 Thermal Monitoring

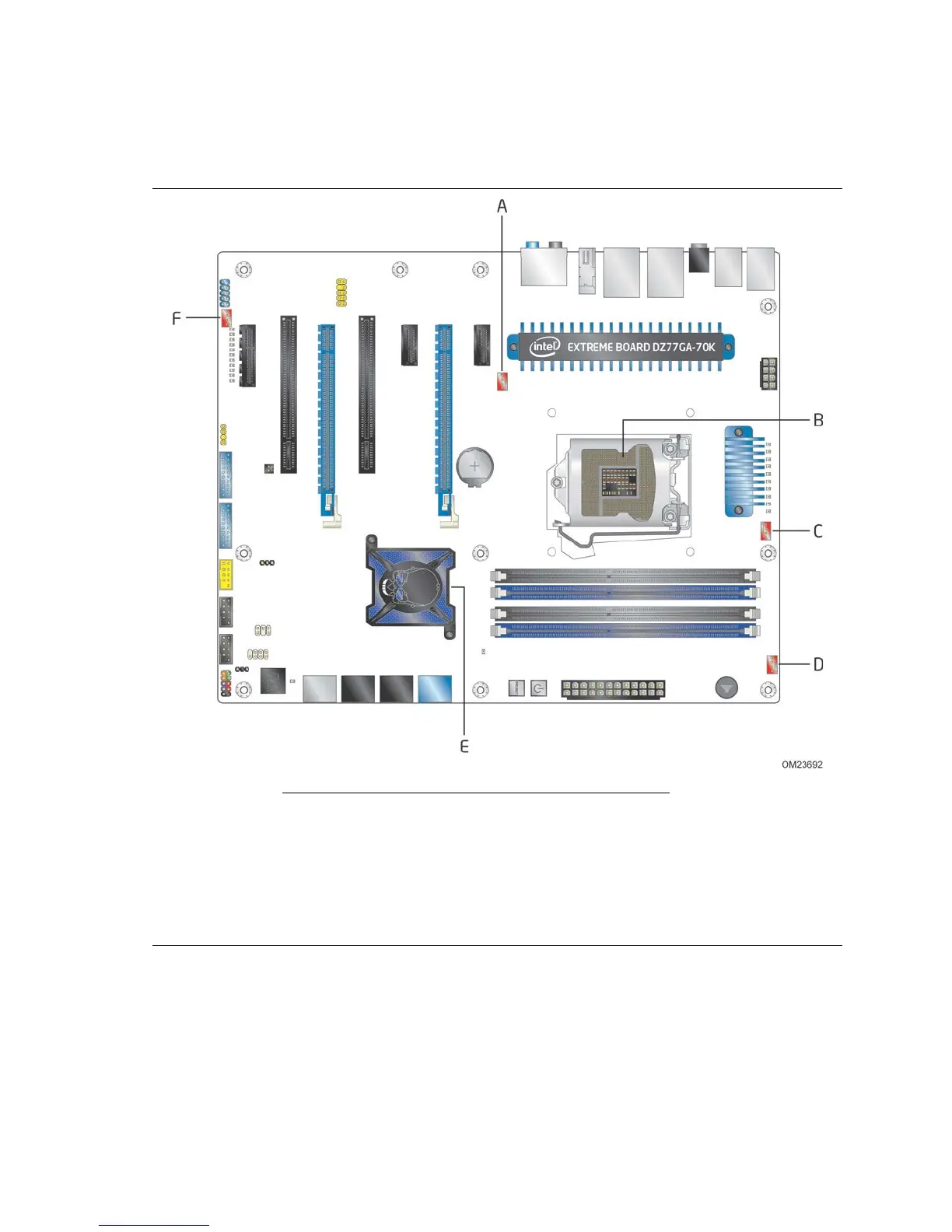

Figure 7 shows the locations of the thermal sensors and fan headers.
Item Description
A Rear chassis fan header
B Thermal diode, located on processor die
C Processor fan header
D Front chassis fan header
E Thermal diode, located on the Intel Z77 Express
Chipset
F Auxiliary fan header
Figure 7. Thermal Sensors and Fan Headers
