1-6 PRO/100 LAN+Modem PC Card User’s Guide
Note
The PRO/100 PC Card may feel hot to the touch, after
prolonged periods of normal use in some environments. This is
normal and is not known to affect operation of the Intel card,
the host computer, or any other peripheral device. However, to
avoid discomfort, use caution when removing the card from your
computer after extended use (see your computer manual for
removal procedures).
PRO/100 Modem and Ethernet Connections
Connecting the Modem Cable to the PRO/100
Hold the PC Card with the top (card label and network graphic)
facing you. Grasp the flat connector on the end of the Modem
Cable with the network graphic on top, and plug it in to the
matching receptacle on the right side of the PRO/100 PC Card.
The cable connector will click into place. Do not force the connec-
tion.

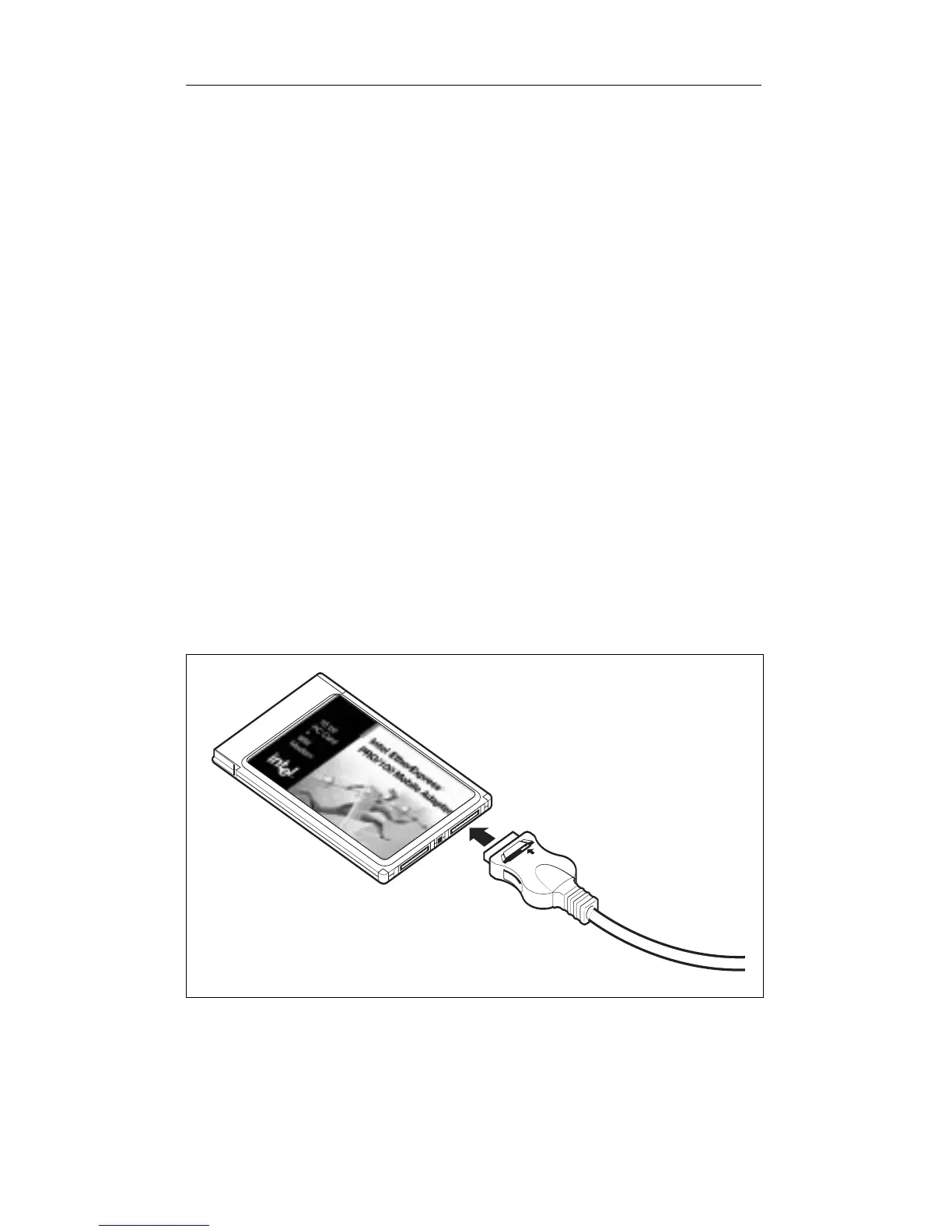

Attaching the Modem Cable to the PRO/100.
Connecting the Modem Cable to the Telephone Line
Plug one end of a male analog telephone line cable into the RJ-11
jack on the Modem Cable, and the other end into an analog (single-
line) RJ-11 telephone wall jack.
MODEM CABLE
