Intel ETHEREXPRESS PRO/100 User Manual

3-4 PRO/100 LAN+Modem PC Card User’s Guide
7 Select the Adapters tab and click Add.
8 On the Select Network Adapters screen, click Have Disk. Insert
Intel Disk 1, Installation Disk and make sure the specified path is
correct, for example: A:\. Click OK.
9 Select Intel EtherExpress PRO/100 LAN+Modem PC Card and
click OK.
10 At the PRO/100 PC Card Setup screen, choose appropriate
settings. Click OK.
11 At the Network screen click Close.
12 At the Network Settings Change screen, remove the Intel disk from
the disk drive and click Yes. The computer will shut down and
restart.
Modem Setup
After the computer has been restarted, use the following procedure to
install the modem:
13 Select Modems from the Control Panel.

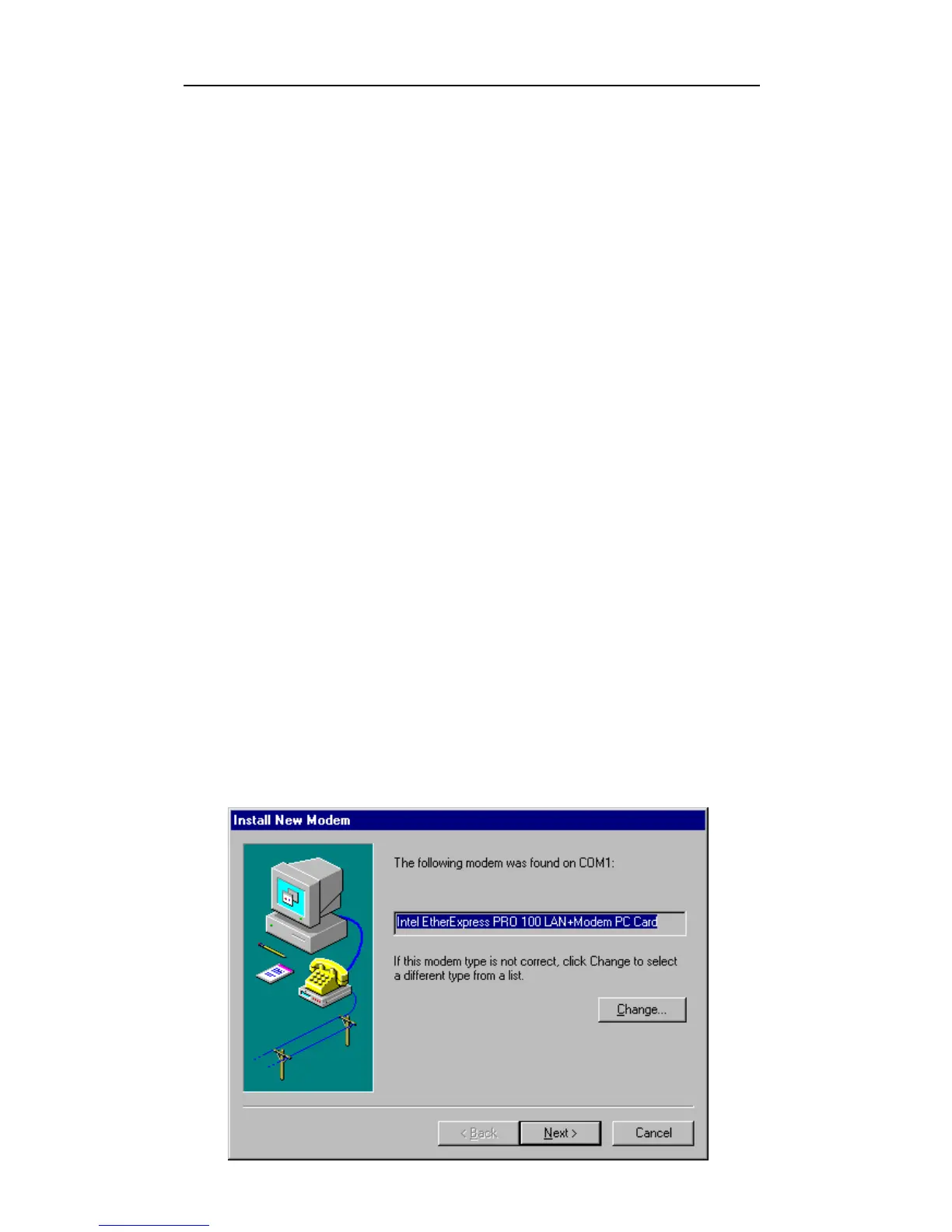

14 At the Install New Modem screen make sure that the "Dont detect
my modem; I will select it from a list" checkbox is NOT checked.
Click Next. NT will query the COM ports looking for the Intel
modem. It should find the Intel modem as shown below. Click
Next>.

Intel ETHEREXPRESS PRO/100 Specifications

General

Device Type	Network adapter
Form Factor	Plug-in card
Data Link Protocol	Ethernet, Fast Ethernet
Data Transfer Rate	100 Mbps
Compliant Standards	IEEE 802.3, IEEE 802.3u
Connector Type	RJ-45
Bus Type	PCI
Chipset	Intel 82557
Full Duplex Support	Yes
Wake-on-LAN Support	Yes
Ports	1 x RJ45
Data Rate	10 Mbps / 100 Mbps
Operating Systems Supported	Linux, Windows
