5

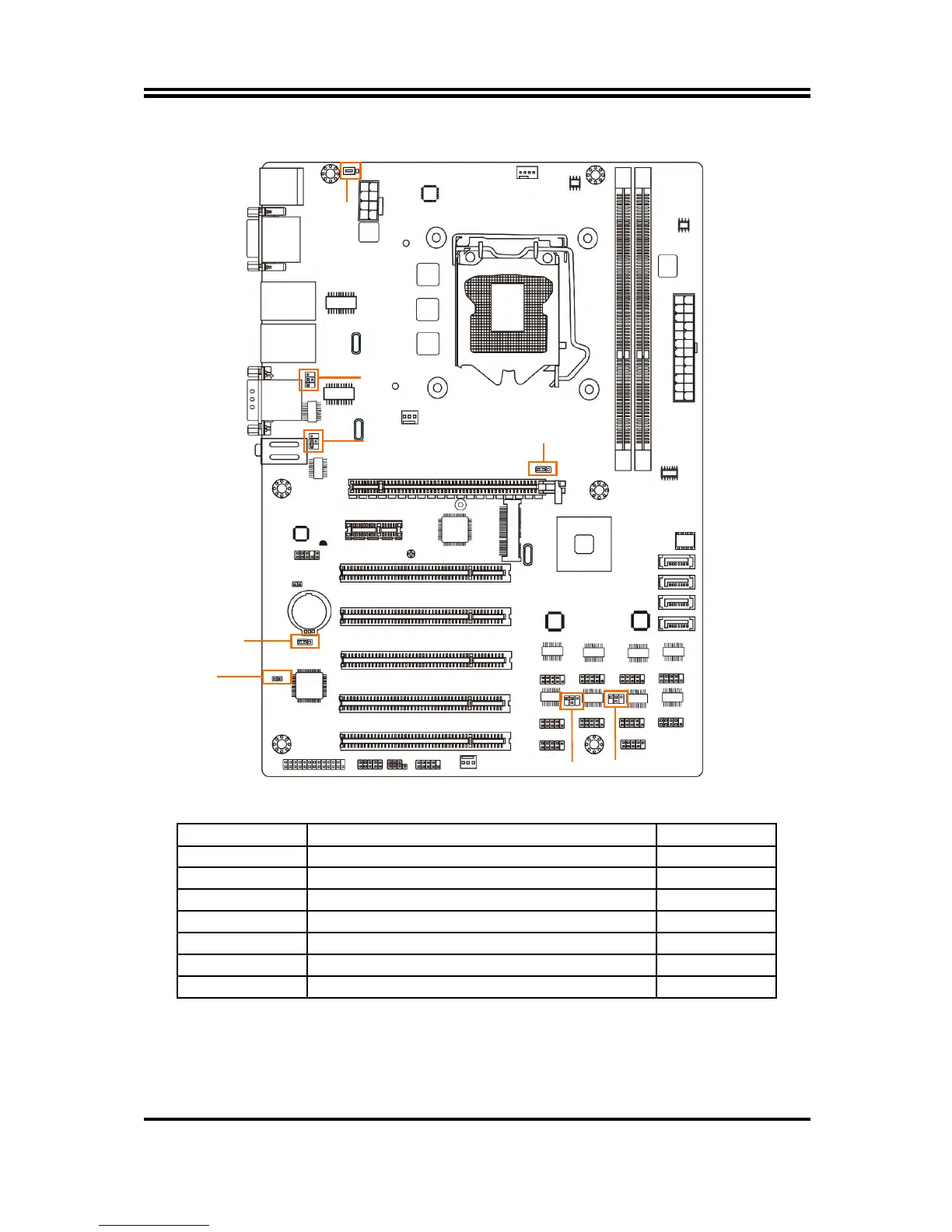

Motherboard Jumper Position
Jumper
Jumper Name Description
JBAT CMOS RAM Clear Function Setting 3-pin Block
JP1 KB/MS Power on Function Setting 3-pin Block
JP2 COM3 Port Pin9 Function Select 4-pin Block
JP3 COM1 Port Pin9 Function Select 4-pin Block
JP4 Mini PCI-E Slot VCC3.3V/3.3VSB Select 3-pin Block
JP6 COM2 Header Pin9 Function Select 4-pin Block
JP7 COM4 Header Pin9 Function Select 4-pin Block
JP2
JP1
JP4
JP7
JBAT
JP
5
JP6
JP3
