Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List
36

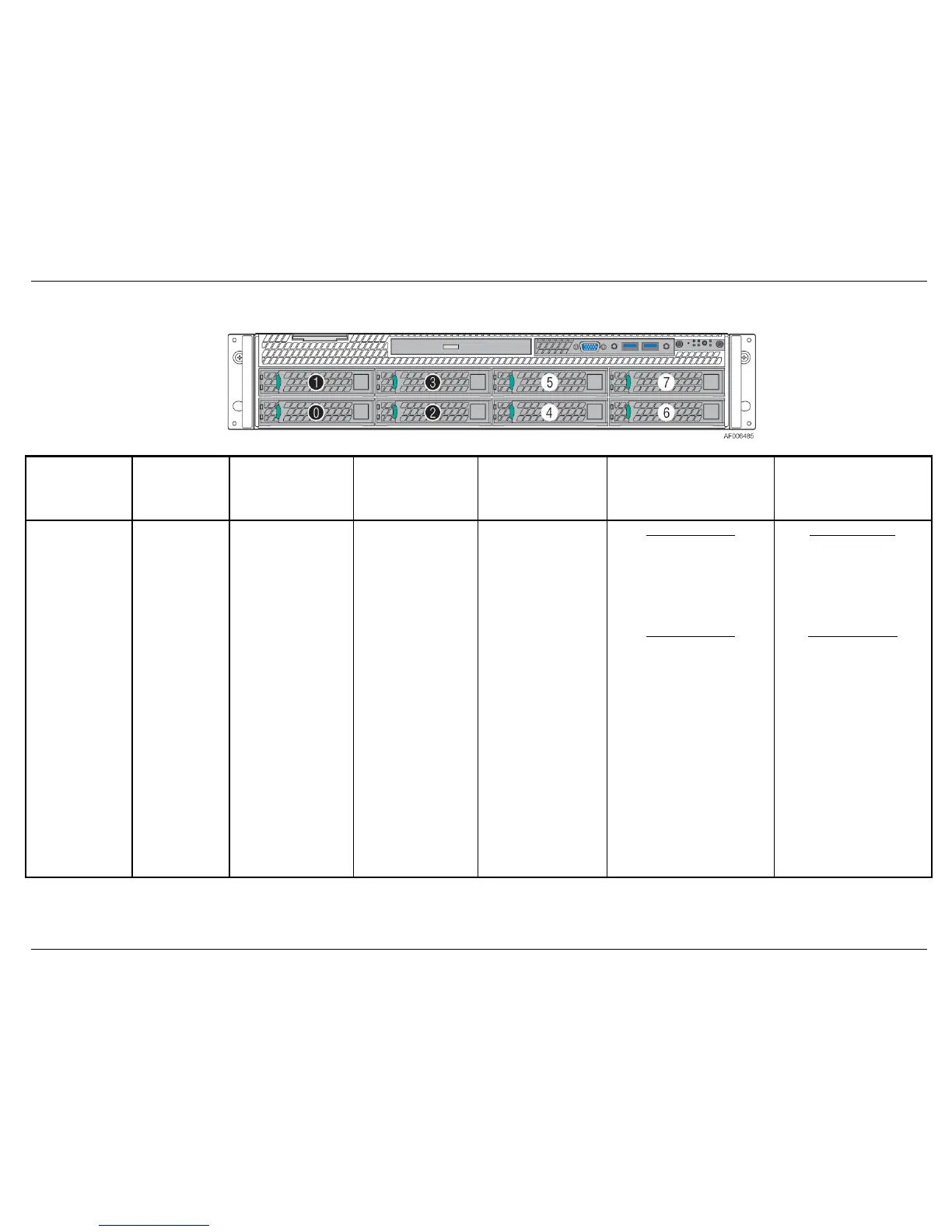

4.2.3 2U 8 x 3.5” – R2308WTxxx Cable Guide
System
Configuration
Drive Support
Cables for On-
board Multi-port
SATA Ports to
Backplane
Cables for
Mezzanine 12 Gb
SAS ROC Module to
Backplane
Cables for
Mezzanine 6 Gb SAS
RAID module to
Backplane
Cables for 12 Gb SAS RAID
PCIe* add-in card to
Backplane
Cables for 6 Gb SAS RAID
PCIe* add-in card to
Backplane
R2308WTTYS
8 x 3.5”
12 Gb SAS
Capable
Cable Connections:
SATA -> BP 0-3
800 mm HD --- HD
sSATA -> BP 4-7
950 mm HD --- HD
From data above,
select appropriate
cable kits from list
below:
AXXCBL800HDHD
AXXCBL950HDHD
1 of each cable
included with L6
Integrated systems
Cable Connections:
SAS Mezz -> BP 0-3
800 mm HD --- HD
SAS Mezz -> BP 4-7
950 mm HD --- HD
From data above,
select appropriate
cable kits from list
below:
AXXCBL800HDHD
AXXCBL950HDHD
1 of each cable
included with L6
Integrated systems
Cable Connections:
SAS Mezz -> BP 0-3
800 mm HD --- MS
SAS Mezz -> BP 4-7
950 mm HD --- MS
From data above, select
appropriate cable kits
from list below:
AXXCBL800HDMS
AXXCBL950HDMS
From Riser #1:
Cable Connections:
SAS PCIe -> BP 0-3 **
650 or 730 mm HD --- HD
SAS PCIe -> BP 4-7 **
800 or 950 mm HD --- HD
From Riser #2:
Cable Connections:
SAS PCIe -> BP 0-3 **
730 or 800 mm HD --- HD
SAS PCIe -> BP 4-7 **
730 or 800 mm HD --- HD
From data above, select
appropriate cable kits from list
below:
See ** Notes below
AXXCBL650HDHD
AXXCBL730HDHD
AXXCBL800HDHD
(1) 800mm Included in L6
AXXCBL950HDHD
(1) 950mm Included in L6
From Riser #1
Cable Connections:
SAS PCIe -> BP 0-3 **
650 or 730 mm HD --- MS
SAS PCIe -> BP 4-7 **
800 or 950 mm HD --- MS
From Riser #2:
Cable Connections:
SAS PCIe -> BP 0-3 **
730 or 800 mm HD --- MS
SAS PCIe -> BP 4-7 **
730 or 800 mm HD --- MS
From data above, select
appropriate cable kits from
list below:
See ** Notes below
AXXCBL650HDMS
AXXCBL730HDMS
AXXCBL800HDMS
AXXCBL950HDMS
** 1 or 2 cable lengths may be specified for a PCIe add-in card. Generally, if the cable connector of the add-in card is located on the back edge of the card, a shorter
cable is specified. Cable connectors on the top edge or near the front of the add-in card will require the longer cable length.
