Intel S2600WT2

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List
53
5.1.1 1U 8x2.5” – Intel® Accessory Kit A1U44X25NVMEDK Cable Guide

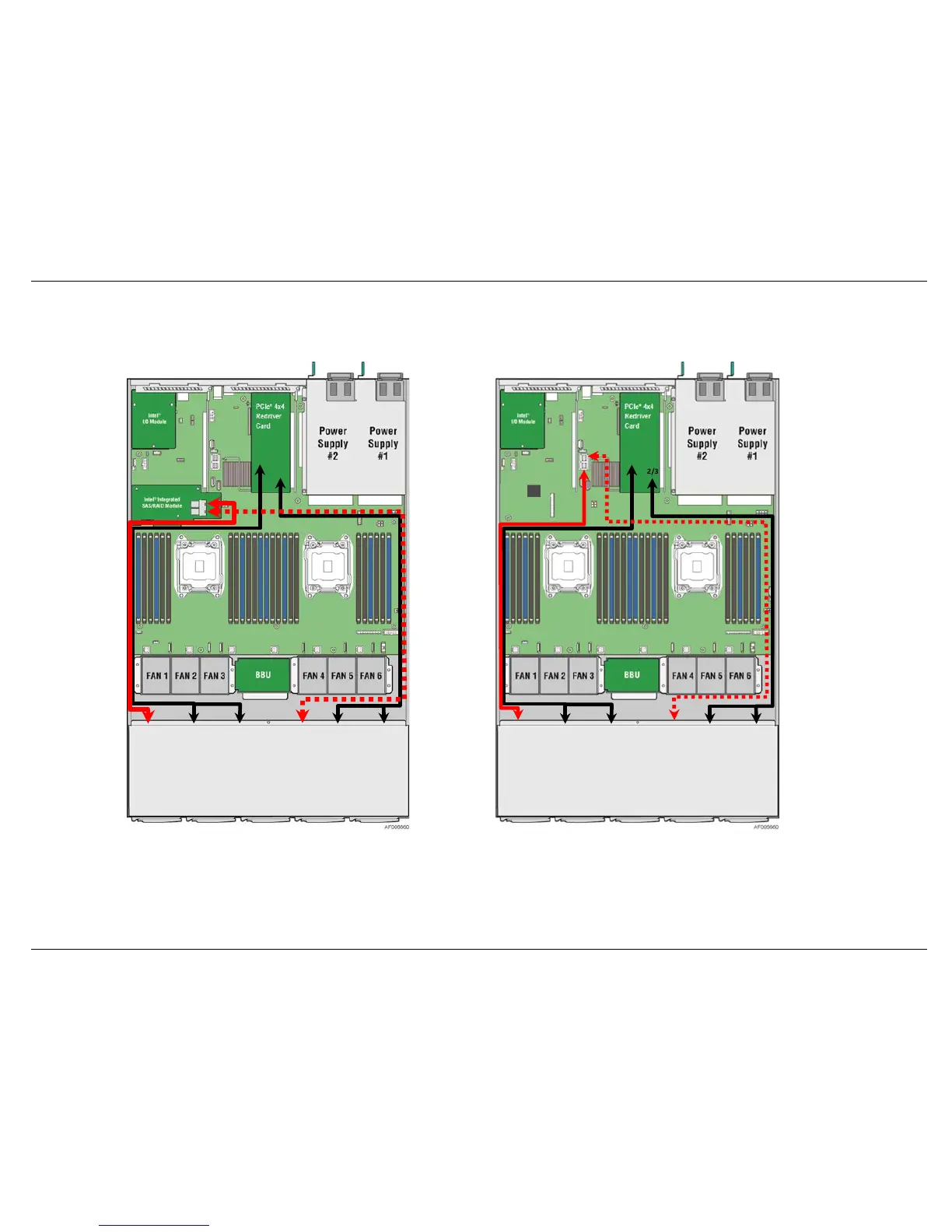

Figure 11. 1U Combo Backplane (iPC – A1U44X25NVMEDK) Cable Routing
PCIe*
Port
0/1
PCIe*
SFF
Device 3
PCIe* SFF
Device 2
PCIe*
Port
2/3
PCIe*
SFF
Device 1
PCIe* SFF
Device 0
SAS Ports
0-3
SAS
Ports 4
-7
PCIe*
Port
0/1
PCIe* SFF
Device 3
PCIe* SFF
Device 2
PCIe*
Port
2/3
PCIe* SFF
Device 1
PCIe* SFF
Device 0
SATA
Ports
0-3
SATA
Ports
4-7
