Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List
58
5.2.2 2U 16x2.5” / 24x2.5” –– Intel® Accessory Kit A2U44X25NVMEDK SAS / SATA Cable Guide

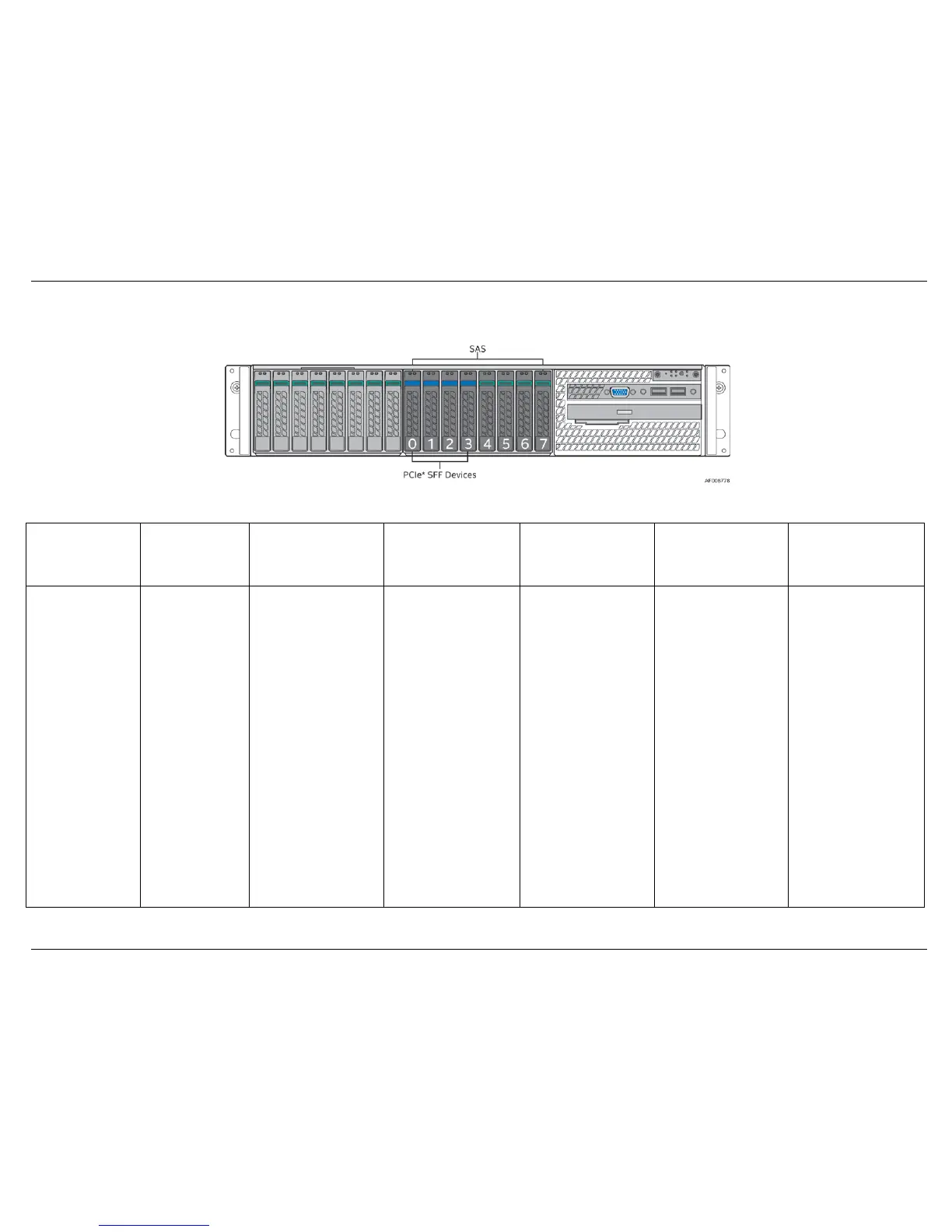

Figure 14. Combo Backplane Module Placement - 16 x 2.5” and 24 x 2.5” front drive configurations
System
Configuration
Cables for Drive
Bay #1
Drive Bay #2
Backplane Type
Cables for Mezzanine
12 Gb SAS ROC
Module to Drive Bay
#2
Cables for
Mezzanine 6 Gb SAS
RAID module to Drive
Bay #2
Cables for 12 Gb SAS
RAID PCIe* add-in
card to Drive Bay #2
Cables for 6 Gb SAS
RAID PCIe* add-in
card to Drive Bay #2
R2216WT…
R2224WT…
See section 4.7.1
8 x 2.5” Combo
SAS / SATA + PCIe* SSD
SFF (NVMe)
iPC
A2U44X25NVMEDK
PCIe* cables included in
accessory kit.
For SAS/SATA support
see the following
options
730mm HD --- HD
Connect cable to:
SAS Mezz -> BP 0-3
and/or
800mm HD --- HD
Connect cable to:
SAS Mezz -> BP 4-7
One or both cable kits
for building block
integration:
(1) AXXCBL730HDHD
(1) AXXCBL800HDHD
Use PCIe* cables
included with Combo
backplane kit for PCIe*
SSD / NVMe drive
support
730mm HD --- MS
Connect cable to:
SAS Mezz -> BP 0-3
and/or
800mm HD --- MS
Connect cable to:
SAS Mezz -> BP 4-7
One or both cable kits
for building block
integration:
(1) AXXCBL730HDMS
(1) AXXCBL800HDMS
Use PCIe* cables
included with Combo
backplane kit for PCIe*
SSD / NVMe drive
support
From Riser #1
730 mm HD --- HD
Connect cable to:
SAS PCIe -> BP 0-3
and/or
800 mm HD --- HD
Connect cable to:
SAS PCIe -> BP 4-7
One or both cable kits
for building block
integration:
(1) AXXCBL730HDHD
(1) AXXCBL800HDHD
Use PCIe* cables
included with Combo
backplane kit for PCIe*
SSD SFF / NVMe drive
support
From Riser #1
730 mm HD --- MS
Connect cable to:
SAS PCIe -> BP 0-3
and/or
800 mm HD --- MS
Connect cable to:
SAS PCIe -> BP 4-7
One or both cable kits
for building block
integration:
(1) AXXCBL730HDMS
(1) AXXCBL800HDMS
Use PCIe* cables
included with Combo
backplane kit for PCIe*
SSD SFF / NVMe drive
support
