Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List
45

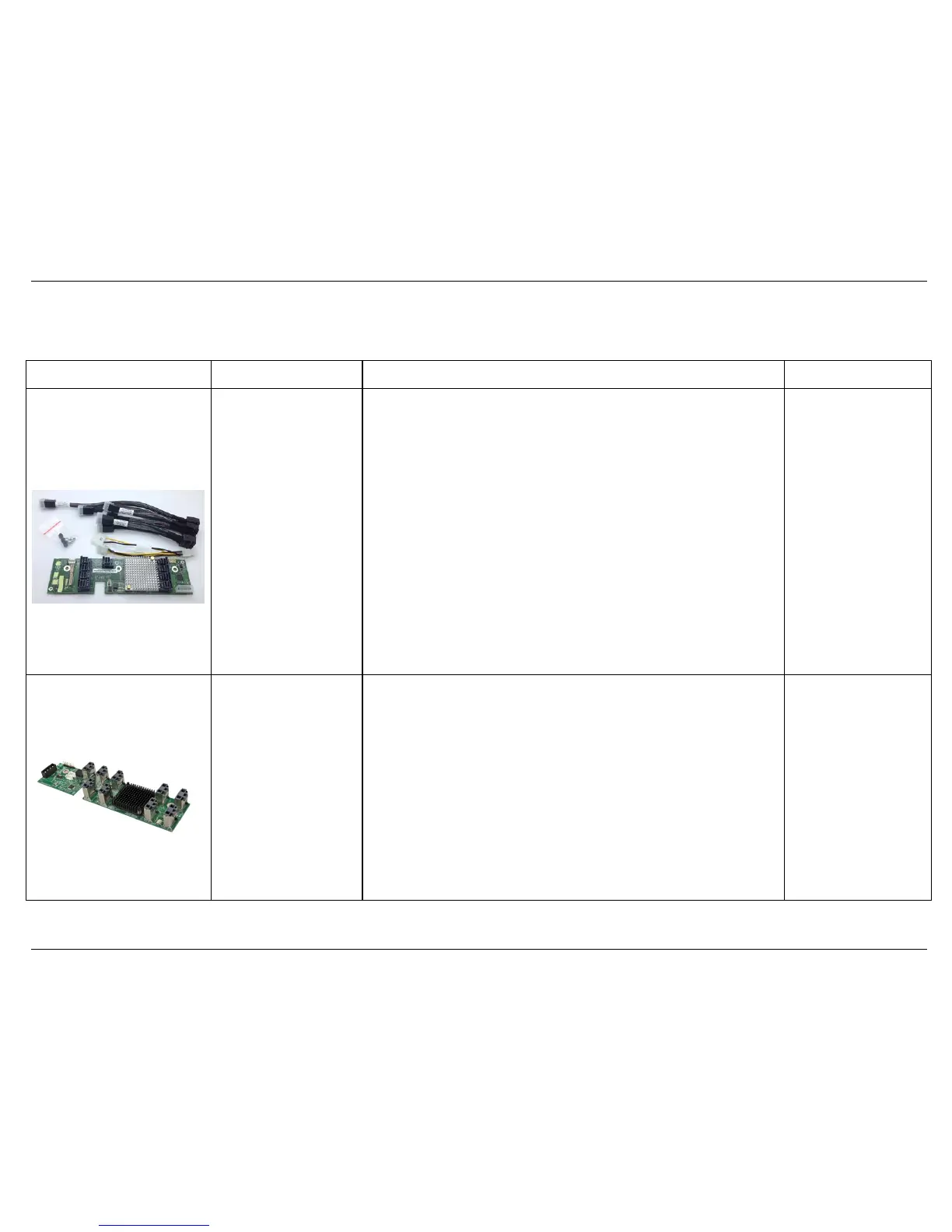

2U 2.5” Front Mount Drive Configurations – SAS Data Cable Guide (with SAS Expander)
SAS drive configurations consisting of more than 8 drives may require the addition of a SAS Expander card. In the 2U 16x2.5” or 24x2.5” system configurations, a
SAS expander can be mounted in the area directly behind the drive bays. Intel provides two SAS expander options to support these drive configurations:
Intel Product Code Order Information
Product Description Product Type
iPC – RES3TV360
Intel® RAID Expander RES3TV360
MM# – 932894
UPC – 00735858287364
EAN – 5032037067102
MOQ - 5
•
SAS 3.0 12 Gb/s expander featuring 6Gbps data aggregation for
12Gbps data transferwith 6Gb/s devices
• Internal mount mid-plane form factor
• 36 internal ports supporting point-to-pont 12, 6, and 3 Gb/s data
transfer rates
• RA 4-pin power connector
• HD Mini-SAS 8643 Connectors
Kit includes: (1) SAS expander card; (1) 130mm Power cable; (1 set)
Expander-to-backplane cables: (4) HD-HD 165mm, (1) HD-HD 300mm, (1)
HD-HD 250mm; (3) Rubber Pads; mounting screws
Required (sold separately)
• HD-HD 12 Gb/sec Raid Controller-to-Expander cables – See table
section 4.7.3
• HD-MS 6 Gb/s RAID Controller-to-Expander cables – See table
section 4.7.3
•
2U Accessory Kit
iPC – RES2CV360
Intel® RAID Expander RES2CV360
MM# – 918935
UPC –
00735858241168
EAN –
5032037035897
MOQ - 1
• SAS 2.0 6 Gb/s expander
• Internal mount mid-plane form factor
• 36 Port 6Gb expander card with ports configurable for input or output
• Power from 4-pin connector
• Mini-SAS 8087 connectors
Kit includes: (1) 6 Gb/s SAS Expander card; (1) 130mm power cable; (3)
rubber mounting pads; (1 set) 6 Gb Expander to 6 Gb bacplane cables: (3)
MS-MS 165mm, (2) MS-MS 185mm, (1) MS-MS 245mm (NOTE: included
data cables not compatible in R2312WT… system)
Required (sold separately): iPC – AXXCBLEXPHDMS - MS-HD 6Gb
Expander to 12 Gb Backplane Data Cable kit, SAS Data Cables from 6 Gb
SAS RAID PCIe/Mezz Card to expander. See Table 10.
•
2U Accessory Kit
Note: The onboard SATA ports are not compatible with SAS Expander cards. The onboard SATA ports can only be cabled directly to a specified backplane.
