Back Panel Connectors

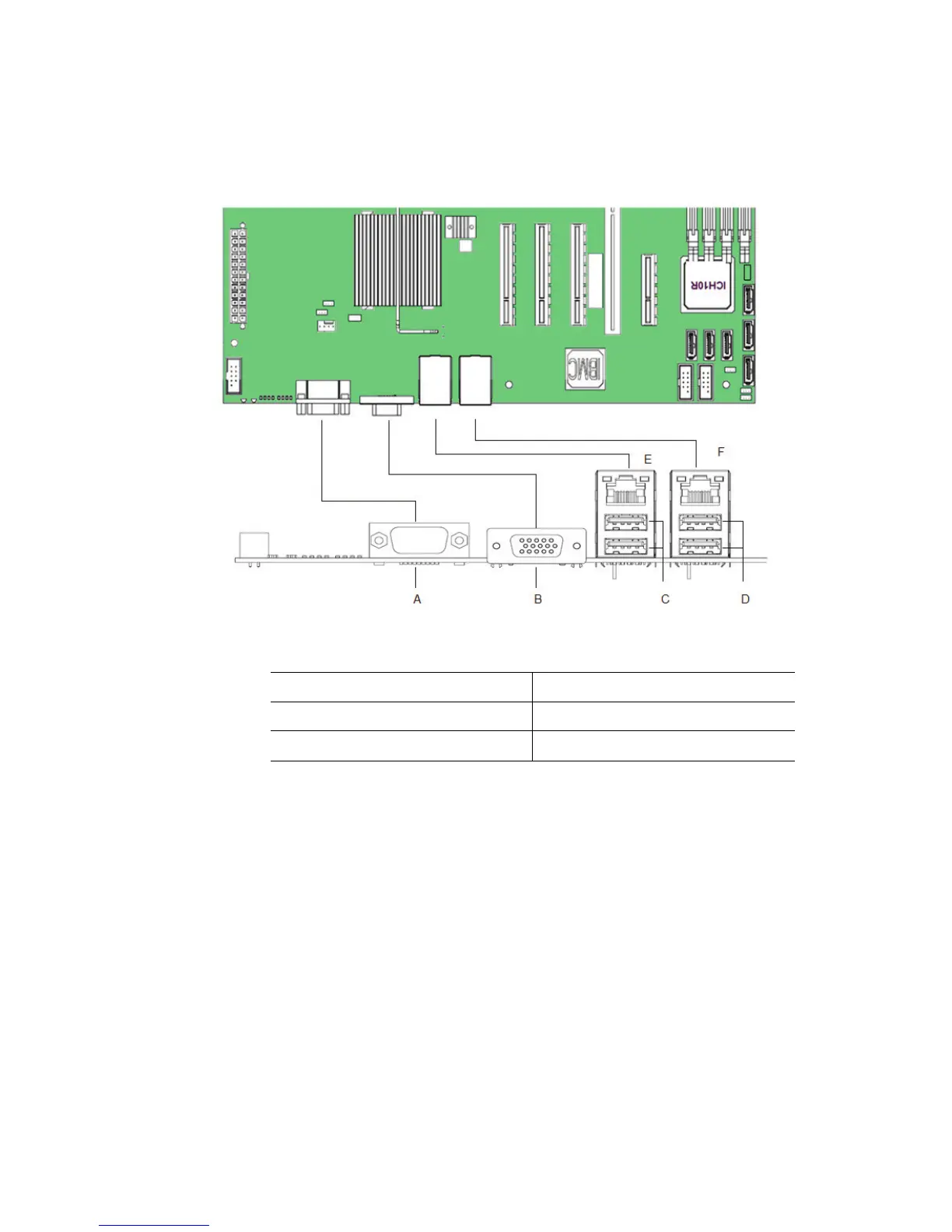

Figure 4. Back Panel Connectors
The NIC LEDs at the right and left of each NIC provide the following information.
A. Serial Port A D. USB Port 8-9
B. Video E. NIC Port 1
C. USB Port 6-7 F. NIC Port 2 (MGMT)
