Server Board S5500BC User’s Guide 5
Configuration Jumpers

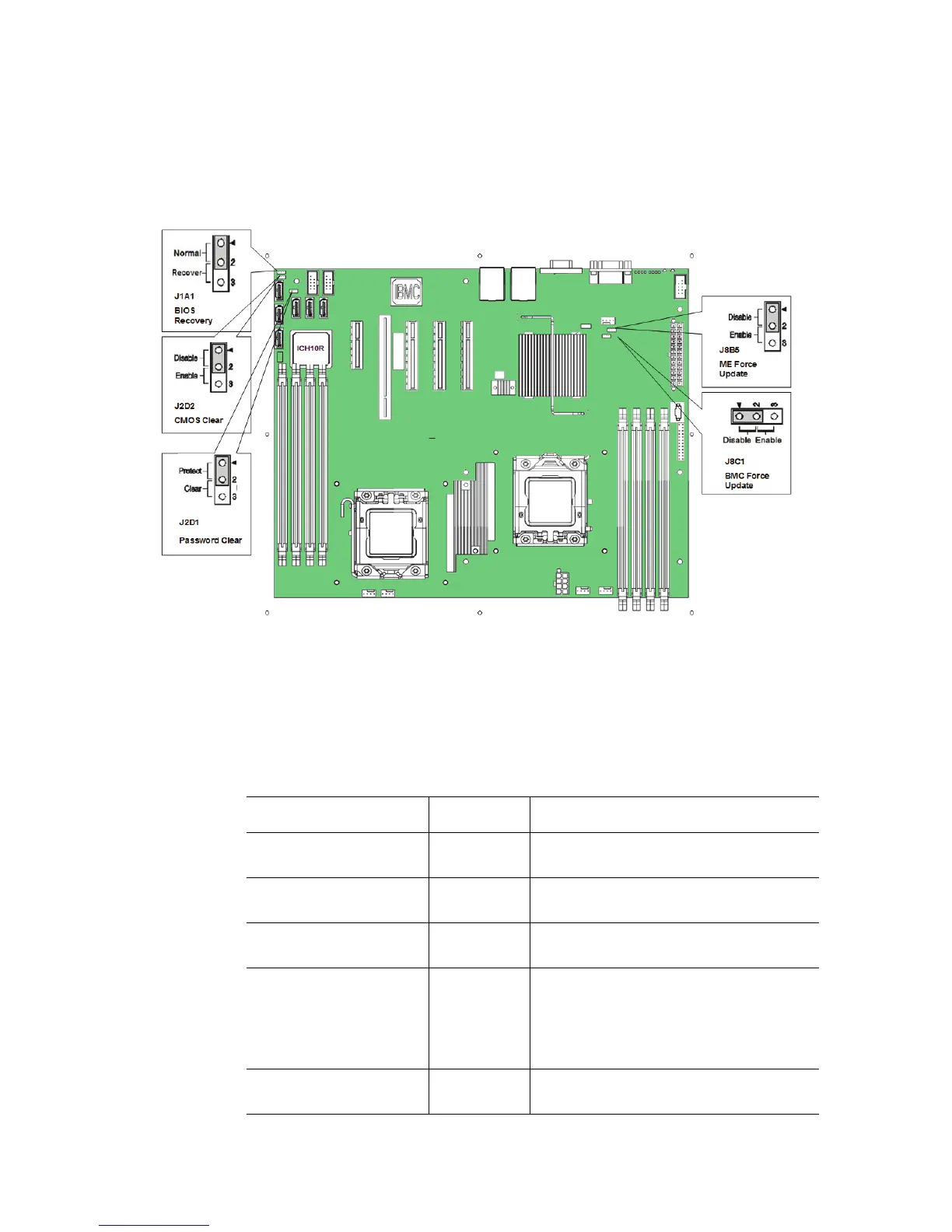

Figure 3. Configuration Jumper Location
Table 2. Configuration Jumper [J4A1]
Jumper Name Pins What happens at system reset...
J8C1: BMC Force Update 1-2 BMC Firmware Force Update Mode -
Disabled (Default)
2-3 BMC Firmware Force Update Mode -
Enabled
J2D1: Password Clear 1-2 These pins should have a jumper in place
for normal system operation. (Default)
2-3 If these pins are jumpered, the
administrator and user passwords are
cleared on the next reset.
NOTE: These pins should not be jumpered
for normal operation.
J2D2: CMOS Clear 1-2 These pins should have a jumper in place
for normal system operation. (Default)
