Server Board S5500BC User’s Guide
23

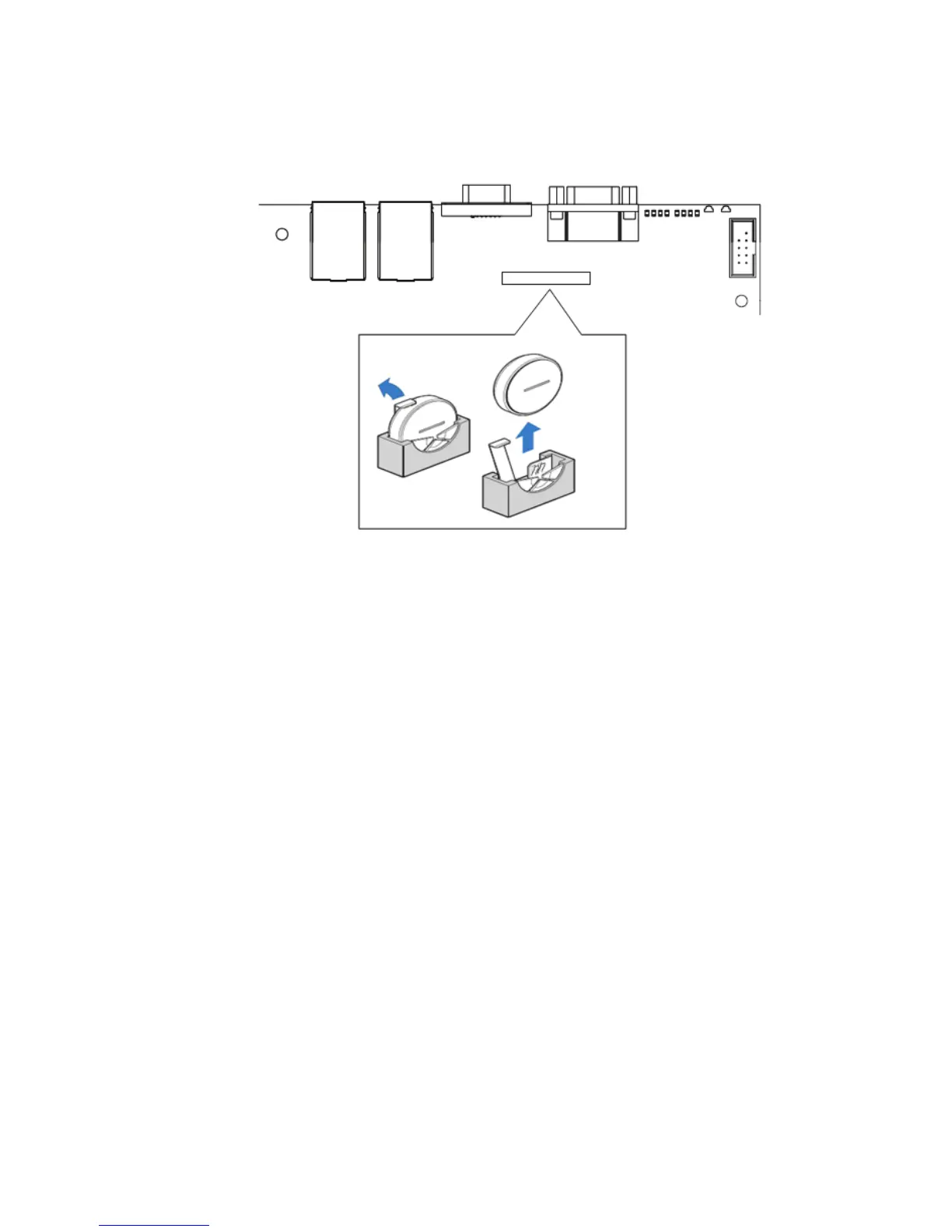

Figure 17. Replacing the Backup Battery
7.
Dispose of the battery
a
ccording to local ordinance.
8.
Remove the new lithium battery from its package, and, being careful to observe the
correct polarity
, insert it in the battery socket.
9.
Close the chassis.
10.
Run Setup to restore the co
nfiguration settings to
the R
TC.
AF003102
42
44
