Functional Architecture Intel® Server Board SE7520JR2
Revision 1.0
C78844-002
38
X8, double row 256MB 512MB 1GB 2GB
X4, single row 256MB 512MB 1GB 2GB
X4, Stacked, double row 512MB 1GB 2GB 4GB
DIMMs on channel ‘A’ are paired with DIMMs on channel ‘B’ to configure 2-way interleaving.
Each DIMM pair is referred to as a bank. The bank can be further divided into two rows, based
on single-sided or double-sided DIMMs. If both DIMMs in a bank are single-sided, only one row
is said to be present. For double-sided DIMMs, both rows are said to be present.
The Server Board SE7520JR2 has six DIMM slots, or three DIMM banks. Both DIMMs in a bank
should be identical (same manufacturer, CAS latency, number of rows, columns and devices,
timing parameters etc.). Although DIMMs within a bank must be identical, the BIOS supports
various DIMM sizes and configurations allowing the banks of memory to be different. Memory
sizing and configuration is guaranteed only for qualified DIMMs approved by Intel.

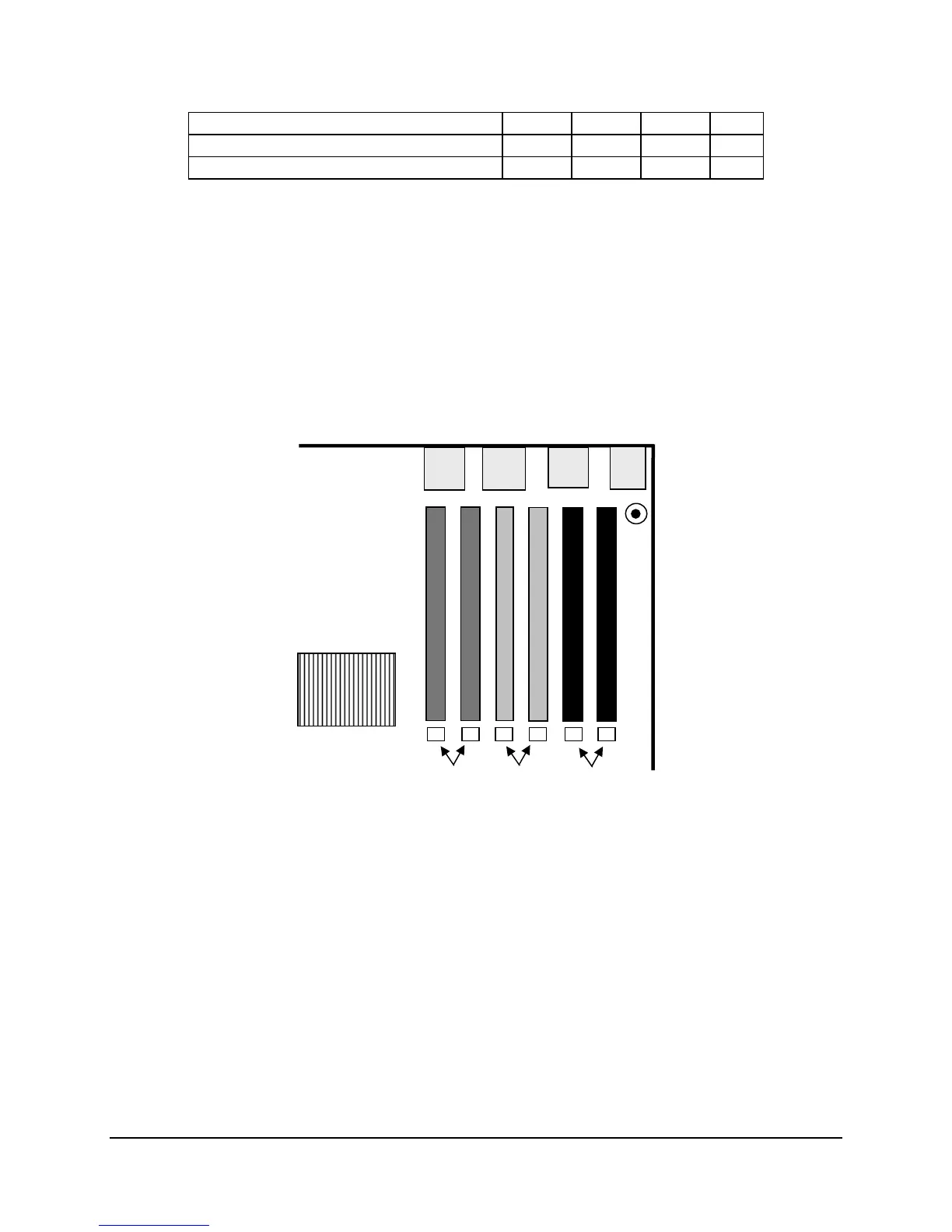

Figure 5. Identifying Banks of Memory
The BIOS reads the Serial Presence Detect (SPD) SEEPROMs on each installed memory
module to determine the size and timing of the installed memory modules. The memory-sizing
algorithm determines the size of each bank of DIMMs. The BIOS programs the Memory
Controller in the chipset accordingly. The total amount of configured memory can be found
using BIOS Setup.
3.3.2 Memory Population
Mixing of DDR-266 and DDR-333 DIMMs is supported between banks of memory. However,
when mixing DIMM types, DDR-333 will run at DDR-266 speeds.
1B1
2B2
3B3
Bank 1
Bank 2 Bank 3
MCH
