Disk on Module (DOM) Install Guide
Disk on Module (DOM) Install Guide: Intel® Storage System SSR212MA 7
10. Remove the old DOM by pressing in on the latches on both sides of the DOM (see
letter “A” in the following figure) and pull up to remove the DOM.

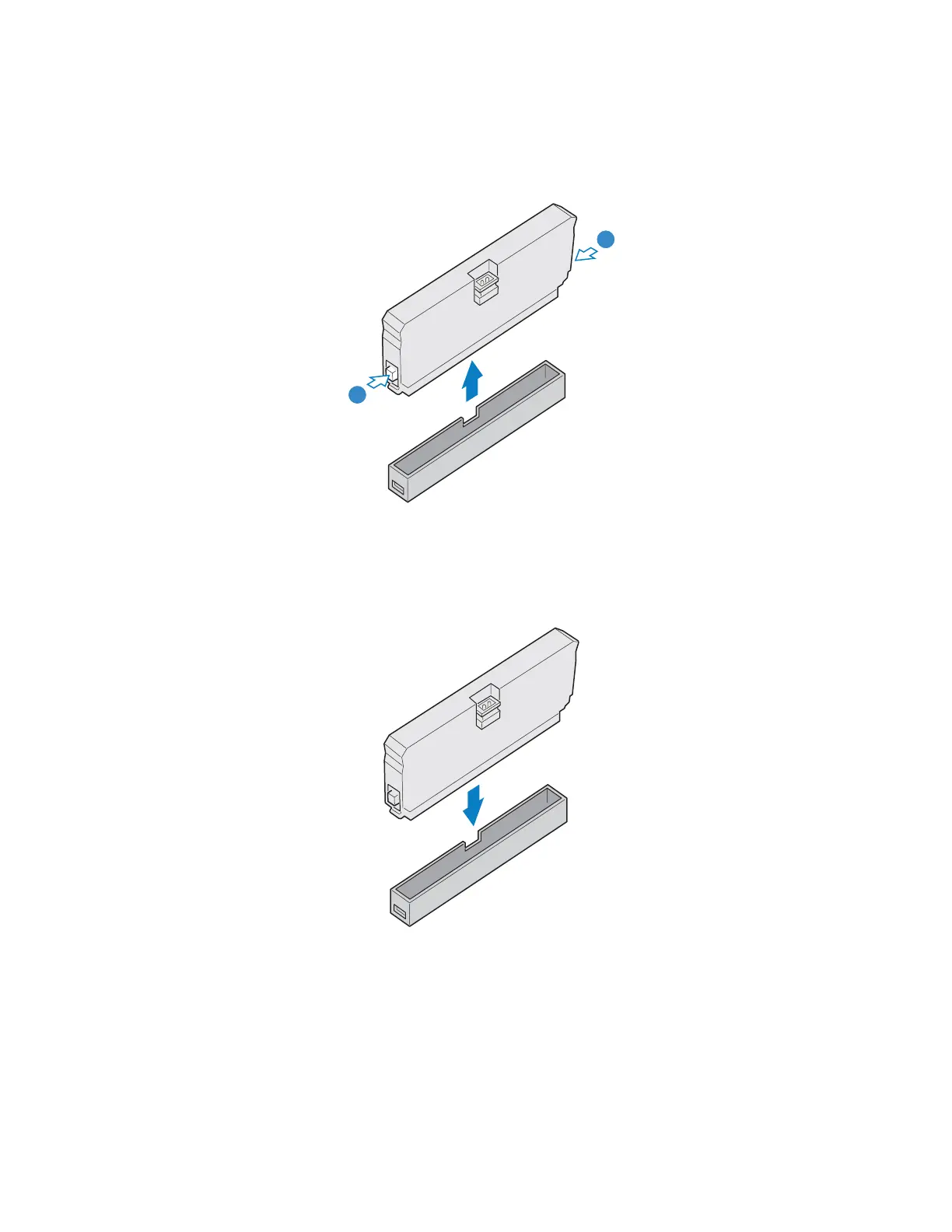

Figure 6. Removing Old DOM
11. Install the replacement DOM to the server board’s IDE connector. You should feel it
snap into place.
Figure 7. Installing Replacement DOM
TP01864
A
A
TP01865
