Intel SSR212MA Install Guide

Disk on Module (DOM) Install Guide
Disk on Module (DOM) Install Guide: Intel® Storage System SSR212MA 9
Install PCI Riser Assembly
13. Install the PCI riser assembly by matching the hooks on the back of the PCI riser
assembly with the notches on the cross bar and rear of the chassis. Guide the PCI riser
assembly home by firmly gripping and sliding the assembly downwards until the riser
card mates with the connector on the server board. The latches should lock into
position once the PCI riser assembly is seated properly.

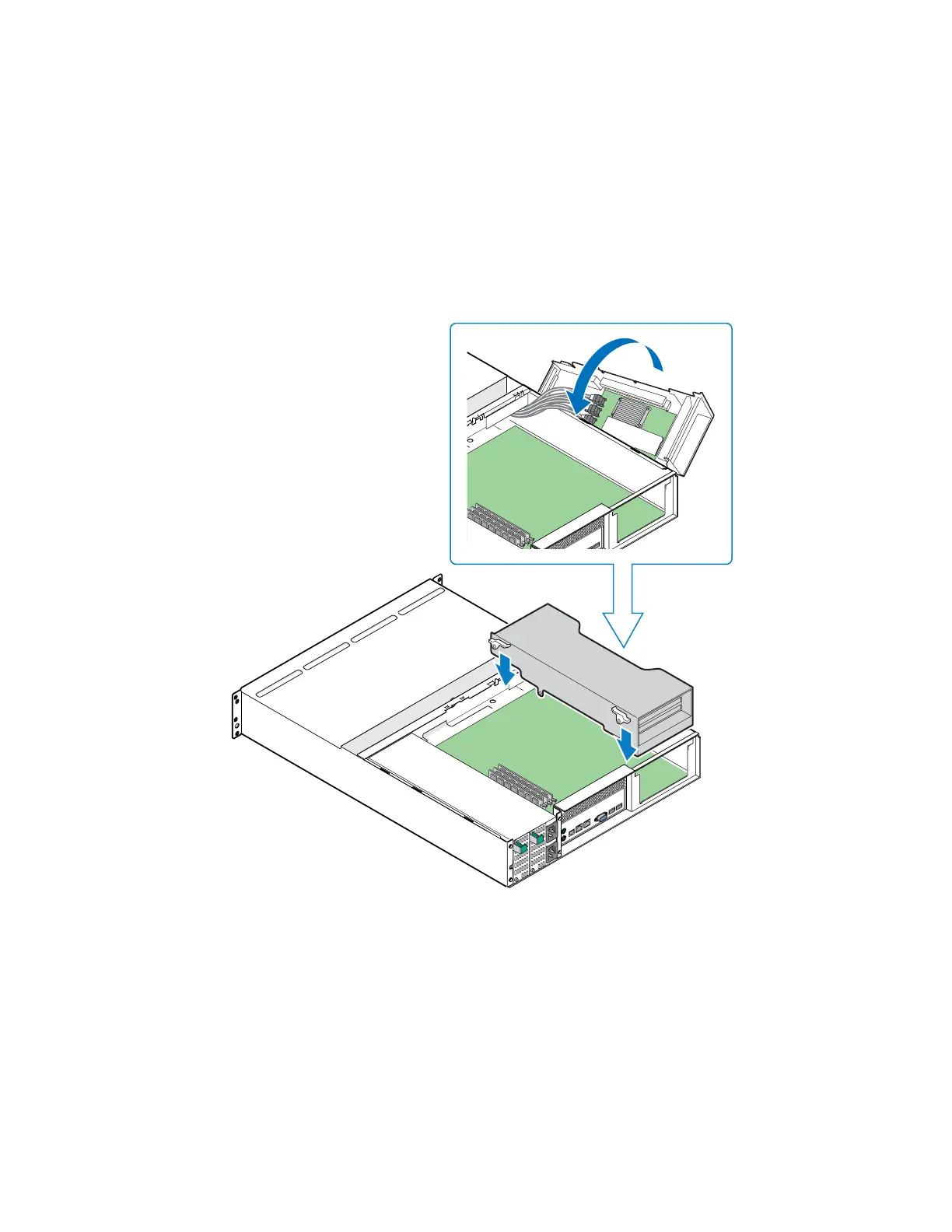

Figure 9. Installing PCI Riser Assembly into Chassis
TP00876

Intel SSR212MA Specifications

General

Brand	Intel
Model	SSR212MA
Category	Storage
Language	English
