 9


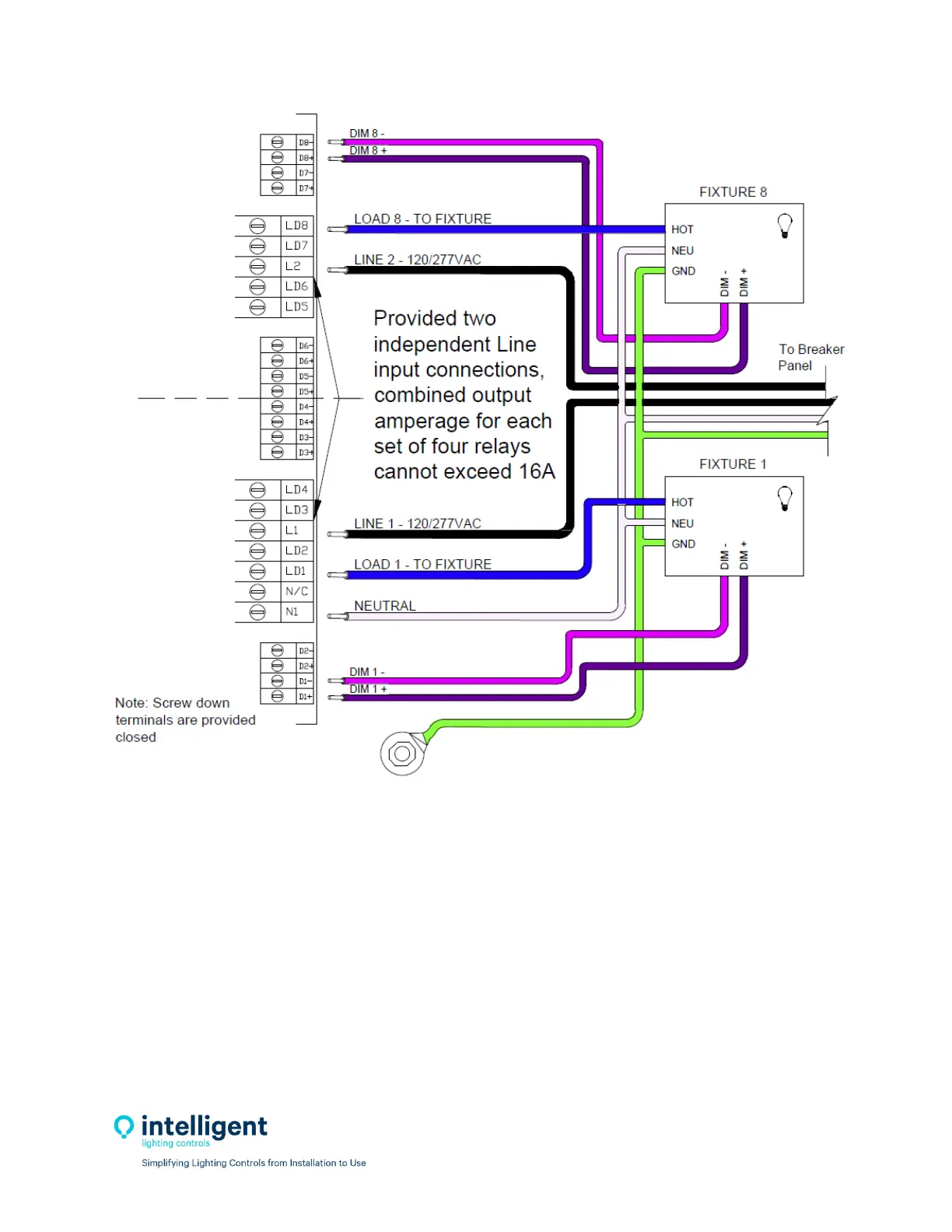

Figure2.1–EVOIntegratedOutputWiring
2.2.2HardwiredInputs
Pullthewiresfromswitches,occupancysensors,ornursecallstationsfromtheirrespectivelocationsto
theenclosure.BesuretoisolatetheClass2wiringfromthehighvoltagewiringasshowninthediagram
below.
