Section1:LightLEEDerEVOIntegratedPanelDetails


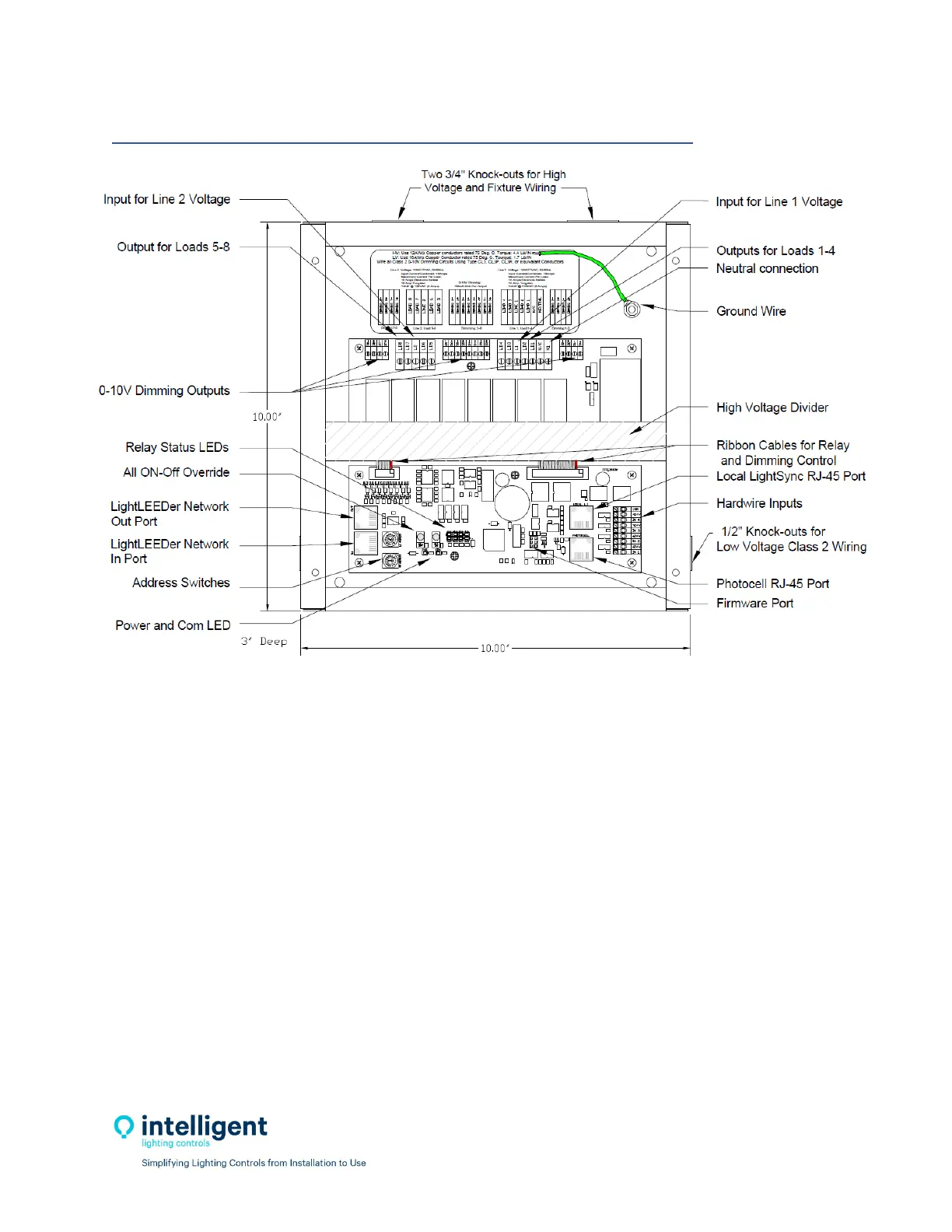

Figure1.1–ILCLightLEEDerEVOIntegratedRelayPanel 
1.0Enclosure
TheenclosureisNEMA1ratedandisprovidedwithascrewcoverdoorforsurfacemounting.Allpanels
aresuppliedwith4pre‐drilledholesforeasymountingontothewall.Enclosurescomeinonesizeof10”
x10”x3”toaccommodate4to8integratedrelays.Enclosures
areconfiguredwithbothClass2andhigh
voltagesidesforeasyandseparatedroutingofwires.IncludedisahighvoltagebarriertoseparateClass
1andClass2wiring.
1.1ControllerBoard
Thecontrollerboardprovidestheintelligencetocontrolrelays,monitorinputs,andtocommunicatein
variousways.Theintegratedcomponentsinclude:
 Powersupplyusedtoconverttheswitchersupply24VACintoDCvoltagesusedbythecontroller
andphotocell.
 RelaystatusLEDsdrivenbycontroller.
 Fourhardwired
inputswith24VDCforswitches,occupancysensor,ornursecallstation.Accepts
momentary,momentarypushbutton,ormaintainedswitchtypes.

