 LocalLightSyncdatalineportfordirectconnectionofupto17remotedevices.

 RJ45PhotocellportforCAT‐5connectiontoILCPhotoSensorHead.

 Real‐Timeclockprovidesalltime‐controlledfunctionsincludingtimeofday,dayofweek,day,and

daylight‐savingtime.Itwill

keepthetimeforatleast45dayswithoutpowertotheCPU.

 Non‐volatilememoryforstoringprogramminginformation.Retainsdataforupto200yearswithout

anypowertotheCPU.

 DatalinecommunicationsthroughRJ45forcommunicatingwithotherpanelsandLightSyncdata

linedevices.

 Relayoverrideswitches“AllOn”or“AllOff”foroperationofrelays.



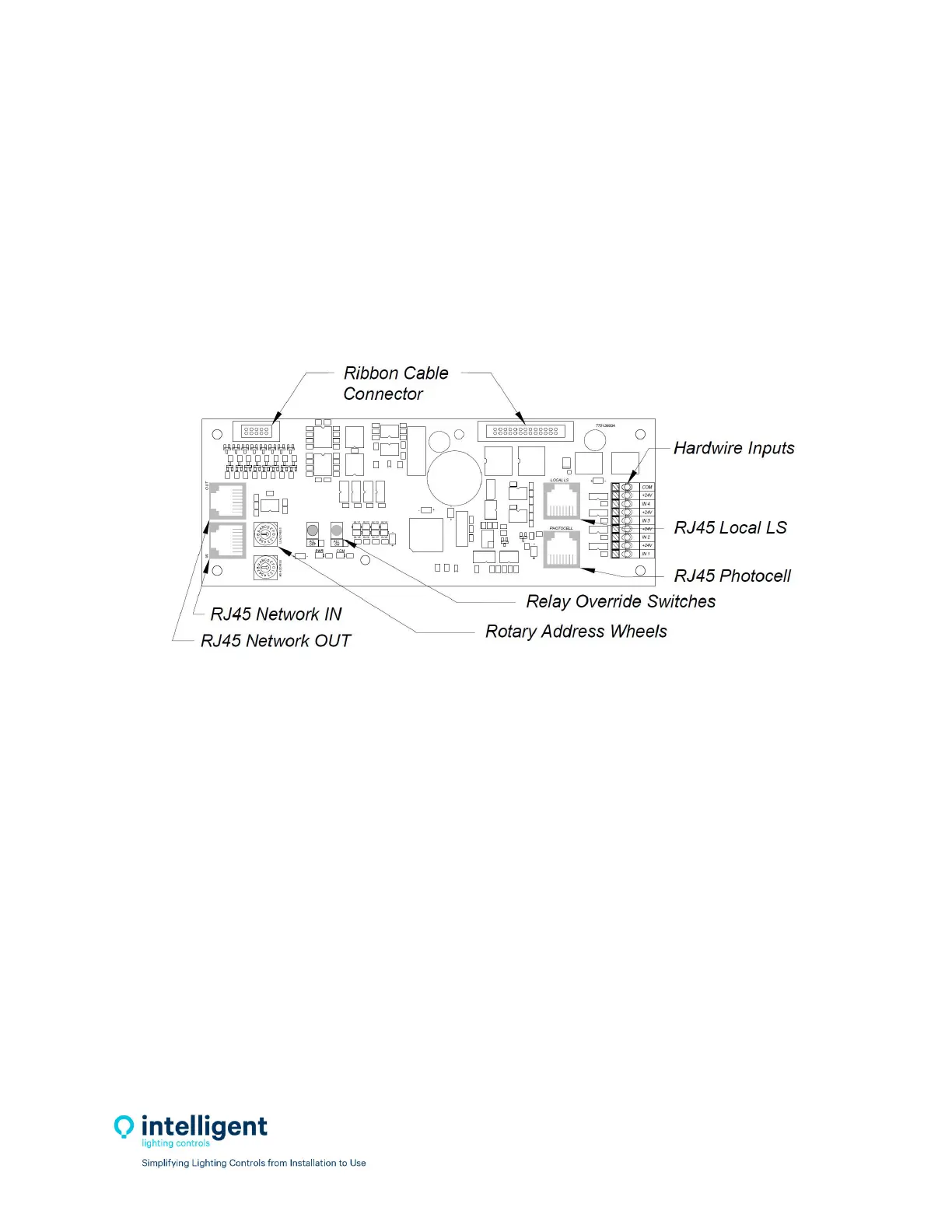

Figure1.2–LLEVOIntegratedControllerBoard



1.2OutputBoard

Theoutputboardincludestherelays,powersupply,andterminalsforwiringconnections.The

integratedcomponents include:

 Switchingpowersupplytoconvert120/277VAClinevoltagetolowvoltagesusedbythecontroller

board.

 Screwdownterminalsforline,load,neutral,and0‐10Vdimmingconnections.

 On‐board

relayspopulatedineither4or8relayconfigurations.Eachsetof4relaysispoweredbya

singlelinevoltage16Acircuit.
