Intelligent Lighting Controls LightLEEDer - Cable Termination and Testing


 12


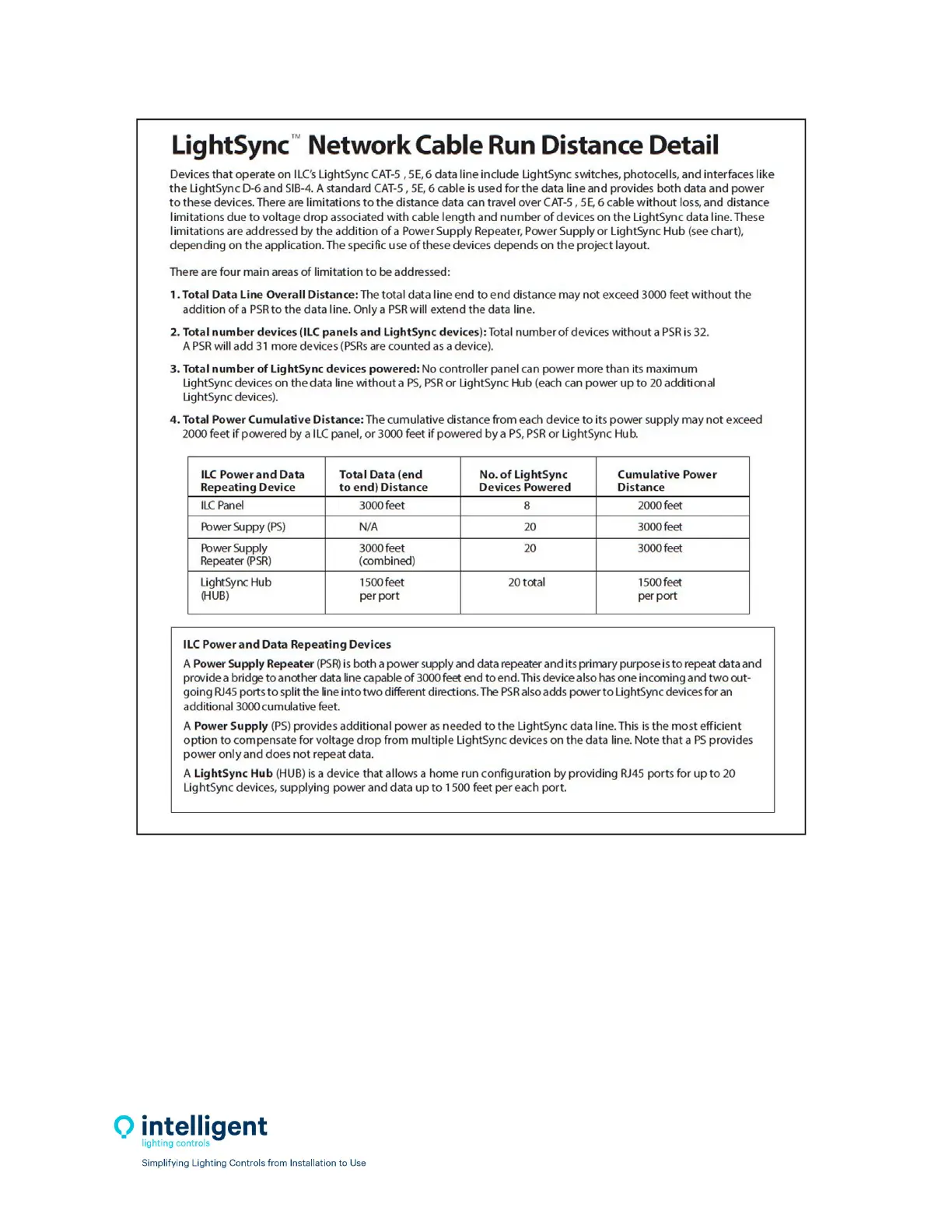

Figure2.3–NetworkCableRunDistanceDetail
2.3.5CableTerminationandTesting
DatacableswillberequiredtobeterminatedwiththeproperRJ45crimp‐onconnectorsforthecable
beingused.Followthepin‐outshowninFigure2.4.Besurethecolor‐codedwiresareterminated
exactlyasshown.Alwaysvisuallyinspectforacompletelyseatedcrimp,asdamagecould
occurtothe
matingconnectorontheprocessorordevice.
