 15



AppendixB:ILCPhotoSensorHead
TheLightLEEDerEVOIntegratedRelay PanelhasaRJ45portforconnectiontoasinglePhotoSensor
Head.RunaCAT‐5cablefromthePhotocellportofthecontrollertothedesiredlocationofthephoto
sensor.TerminatetheCAT‐5cablepairsasshownbel owinFigure4.2.


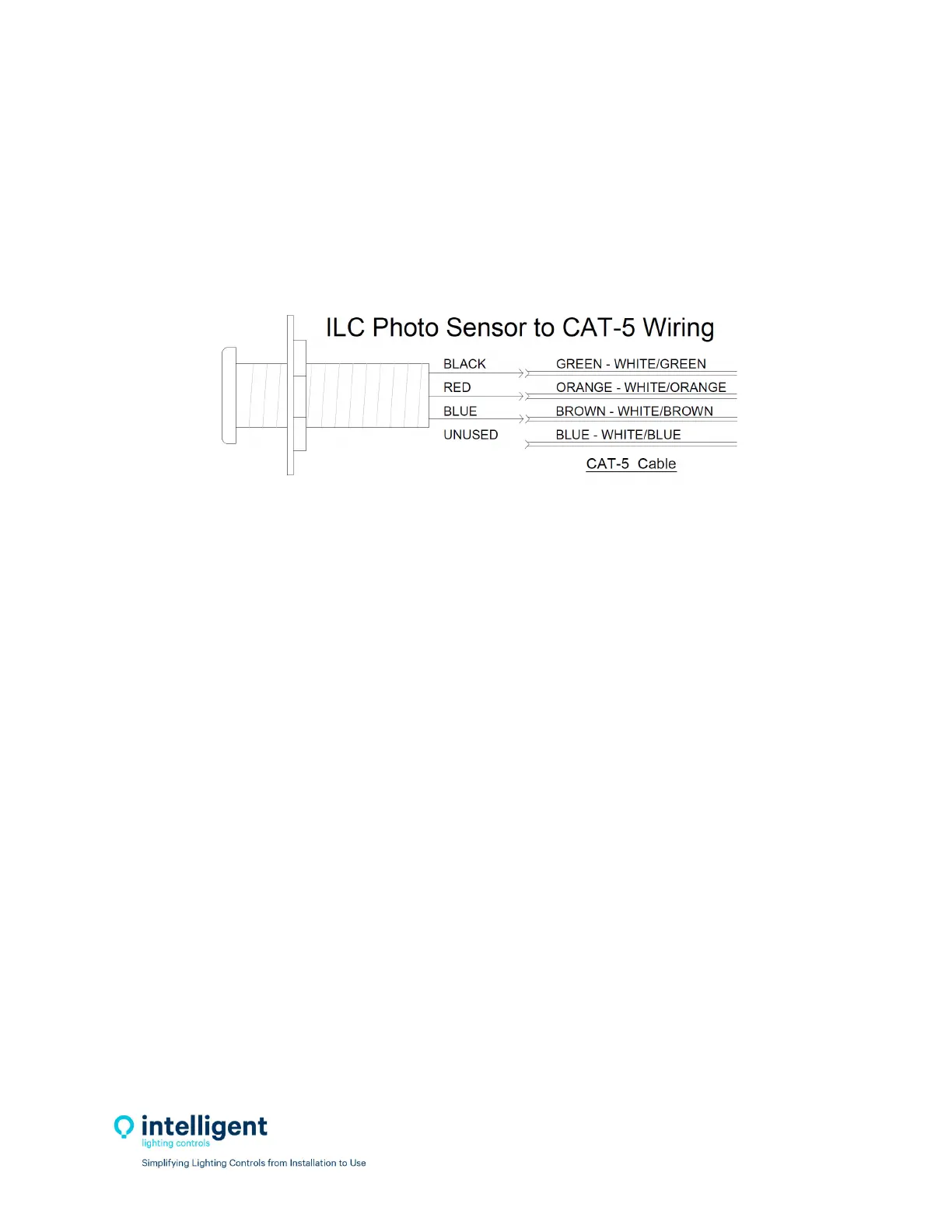

Figure4.2–ILCPhotoSensorTermination

AppendixC:NetworkedRelayPanels
LightLEEDerNetworkControllershavethecapabilitytocontrolupto255LightLEEderpanelsincluding
theLightLEEDerEVOIntegratedRelayPanel.TheremoteEVO‐INTpanelsareconnectedtothenetwork
CAT‐5“Out”portfromtheLLNCandaddressedasoneofthe255LightLEEDerpanelsinthesame
manneras
allotherLightLEEDerpanels.AllstandardLightLEEDernetworkingoperationsaresupported
withtheLLEVO‐INT.

