SECTION 5 DISPLAYS

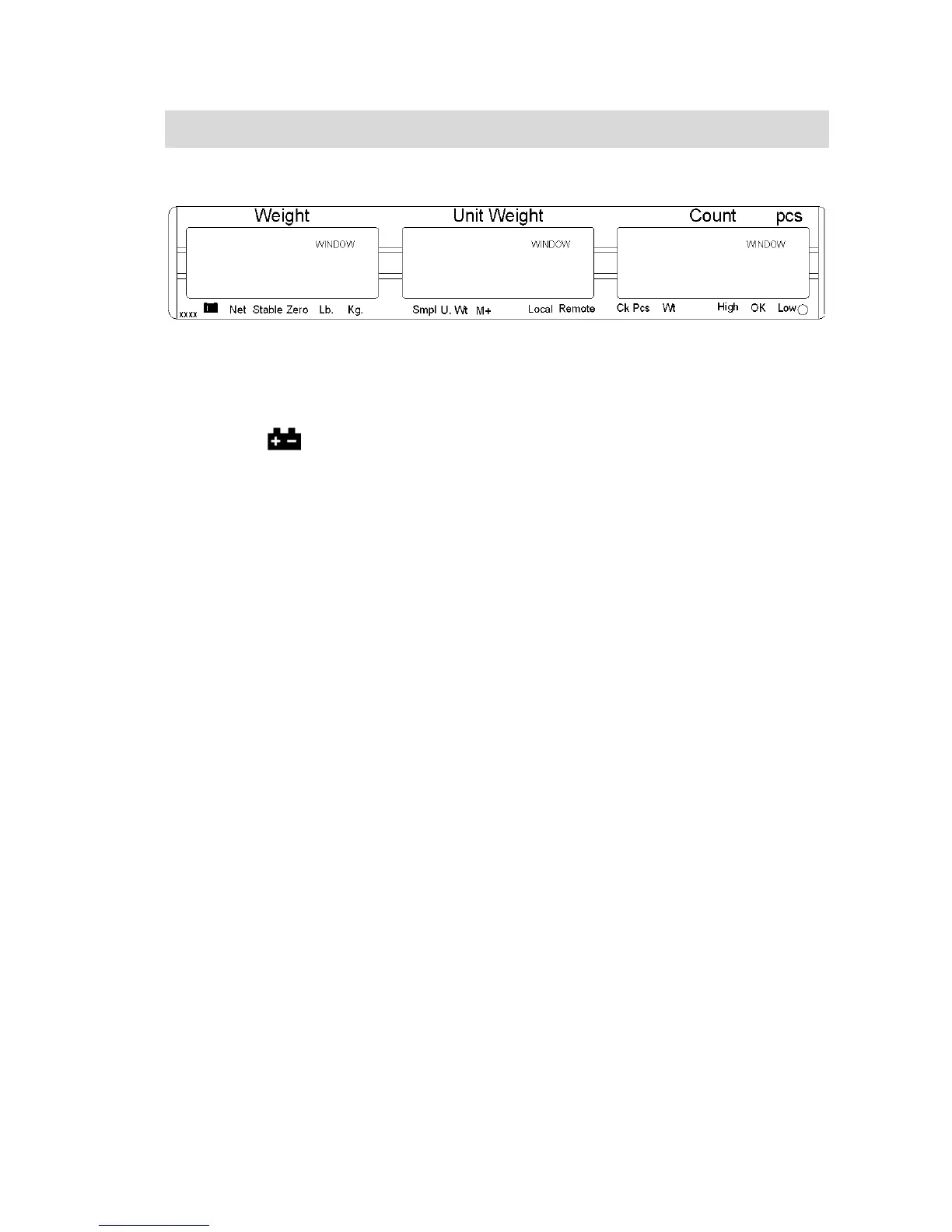

The scales have three display windows- Weight, Unit Weight and Count.
5.1 WEIGHT WINDOW
This consists of a 6 digit display to indicate the weight on the scale.
An arrow above the symbols will indicate the following:
Low battery,
Net Weight Display, "Net"
Stability indicator, “Stable”
Zero indicator, “Zero”
Unit in use indicator, “Lb” or “Kg”
5.2 UNIT WEIGHT WINDOW
• This display will show the unit weight of a sample. This value is either entered by the
user manually or computed by the scale. The unit of measure is either gram on all
scales with kilogram selected as weighing unit or in pounds.
• When the scale has determined that there is insufficient number of samples to
accurately determine the count, an arrow will be shown above "Smpl".
• When the unit weight is not large enough to determine an accurate count, the arrow
will show at "U.Wt".
• When a value has been entered into the memory, the arrow above "M+" will be on.
• In both the cases the scale continues to operate and the indicators are to alert the
user of a potential problem.
5.3 COUNT WINDOW
• This display will show the number of items on the scale or the value of the
accumulated count. See the OPERATION section.
• An arrow above the symbols will indicate the following:
Checkweighing is active during counting, "Ck Pcs"
Checkweighing is active during weighing, “Ck Wt”
Checkweighing is active, result is above the High Limit, “High”
Checkweighing is active, result is between the Low and High Limit, “OK”
Checkweighing is active, result is below the High Limit, “Low”
• Just under the “Count” display is an LED to indicate the status of the battery
charging. When the scale is plugged into the main power the internal battery will be
charged. If the LED is green, the battery has a full charge. If it is red, the battery
requires further charging and yellow indicates the battery is being charged.
