Intense m16 - Geometry

INTENSE CYCLES // 5

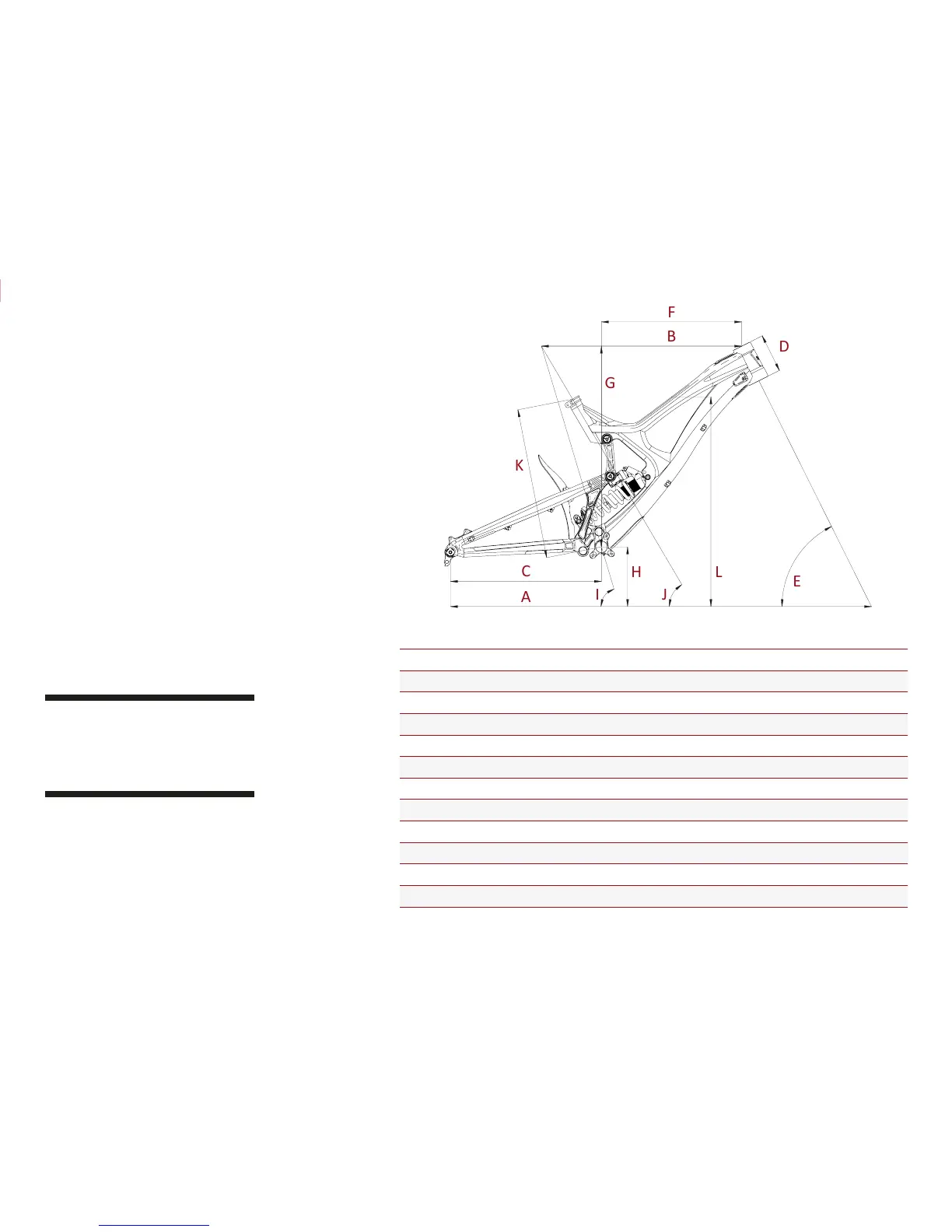

Geometry
C
A
B
F
E
D
G
H L
K
I J
GEOMETRY NOTEs
GEOMETRY TAKEN AT TOP OUT WITH 594MM
FORK LENGTH AND 42MM FORK OFFSET.
Component spec NOTE
the m16 is designed around the use of
a single chain ring set only. Use of a
double or triple ring set will not allow
proper clearance with the frame.
SMALL MEDIUM LARGE XLarge
A
Wheel Base: 1194 mm/ 47” 1219 mm/ 48” 1245 mm/ 49” 1270 mm/ 50”
B
Top Tube Length: 565 mm/ 22.25” 591 mm/ 23.25” 616 mm/ 24.25” 641 mm/ 25.25”
C
Chain Stay Length: 445 mm/ 17.5” 445 mm/ 17.5” 445 mm/ 17.5” 445 mm/ 17.5”
D
Head Tube Length: 109 mm/ 4.3” 115 mm/ 4.5” 122 mm/ 4.8” 122 mm/ 4.8”
E
Head Tube Angle: 63.5˚ 63.5˚ 63.5˚ 63.5˚
F
Reach: 391 mm/ 15.4” 413 mm/ 16.3” 436 mm/ 17.15” 461 mm/ 18.15”
G
Stack: 587 mm/ 23.1” 592 mm / 23.3” 598 mm/ 23.55” 598 mm/ 23.55”
H
BB Height: 365 mm/ 14.375” 365 mm/ 14.375” 365 mm/ 14.375” 365 mm/ 14.375”
I
Seat Tube Angle (Effective): 73.3˚ 73.3˚ 73.3˚ 73.3˚
J
Seat Tube Angle (Actual): 59.5˚ 59.5˚ 59.5˚ 59.5˚
K
Seat Tube Length: 436 mm/ 17.2” 442 mm/ 17.4” 454 mm/ 17.9” 454 mm/ 17.9”
L
Standover Height: 797 mm/ 31.4” 803 mm/ 31.6” 809 mm/ 31.9” 816 mm/ 32.1”
