18 // sniper T manual
setup
Preface //
We are almost ready to rip. Just a few more
checkpoints and adjustments to ensure the
performance and ride characteristics of the
Sniper T are optimised for you.
Tools needed
• zip tie + cable spacer
• shock pump
• small ruler or measuring device
• INTENSE Carbon Paste
• torque wrench

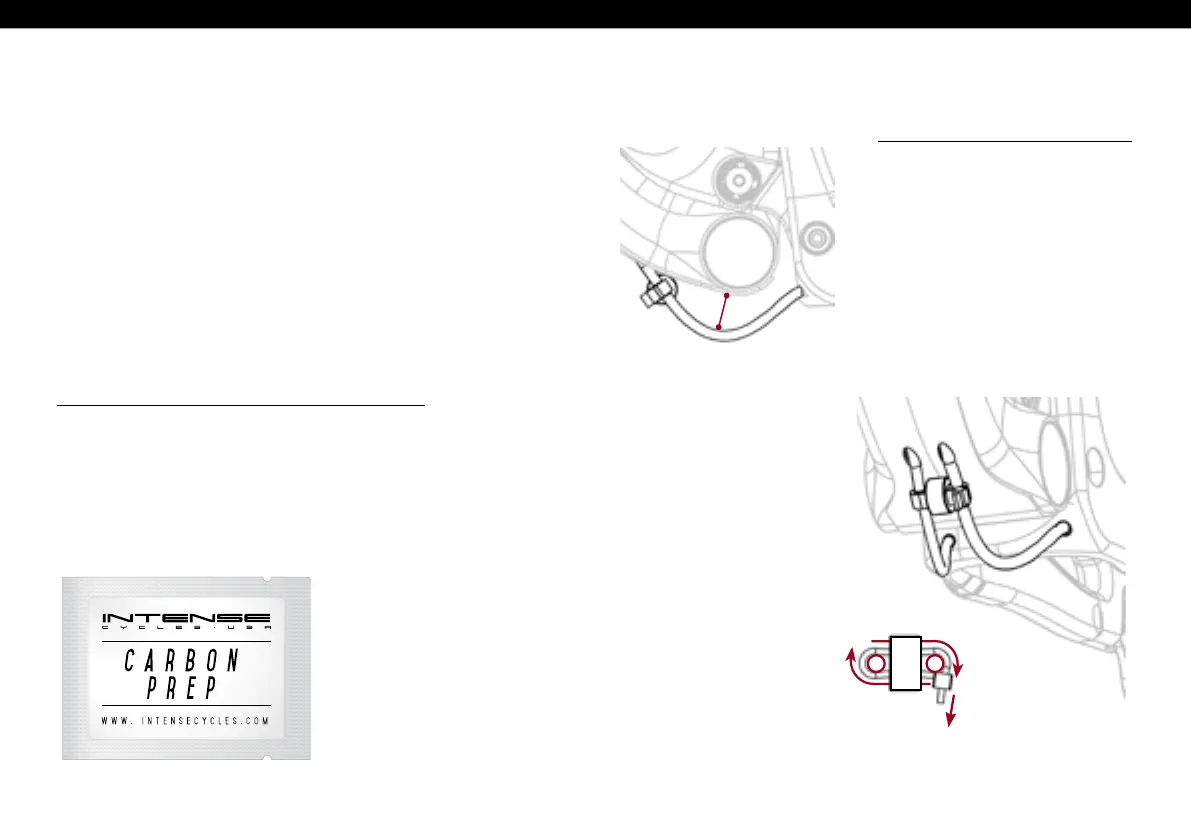

sniper cable routing //
1. Feed the zip tie into the
cable spacer and around
one of the cables before
feeding it back thru the
spacer and around the second
cable. Do not tighten.
2. Adjust the proper amount
of slack in the cables.
3. Position the cable spacer
near the exit holes on
the down tube.
4. Tighten the zip tie to secure
the spacer in place.
38 mm (1.5")
Important note
When installing the rear brake and
derailleur cables, it's important to
position the cables 38 mm (1.5")
away from the bottom surface of
the down tube. This allows enough
slack in the cables so they do not
come under tension when the
suspension compresses.
