Intense Sniper T - Frame Linkage Assembly

INTENSECYCLES.com // 9
4
3
6
5
21

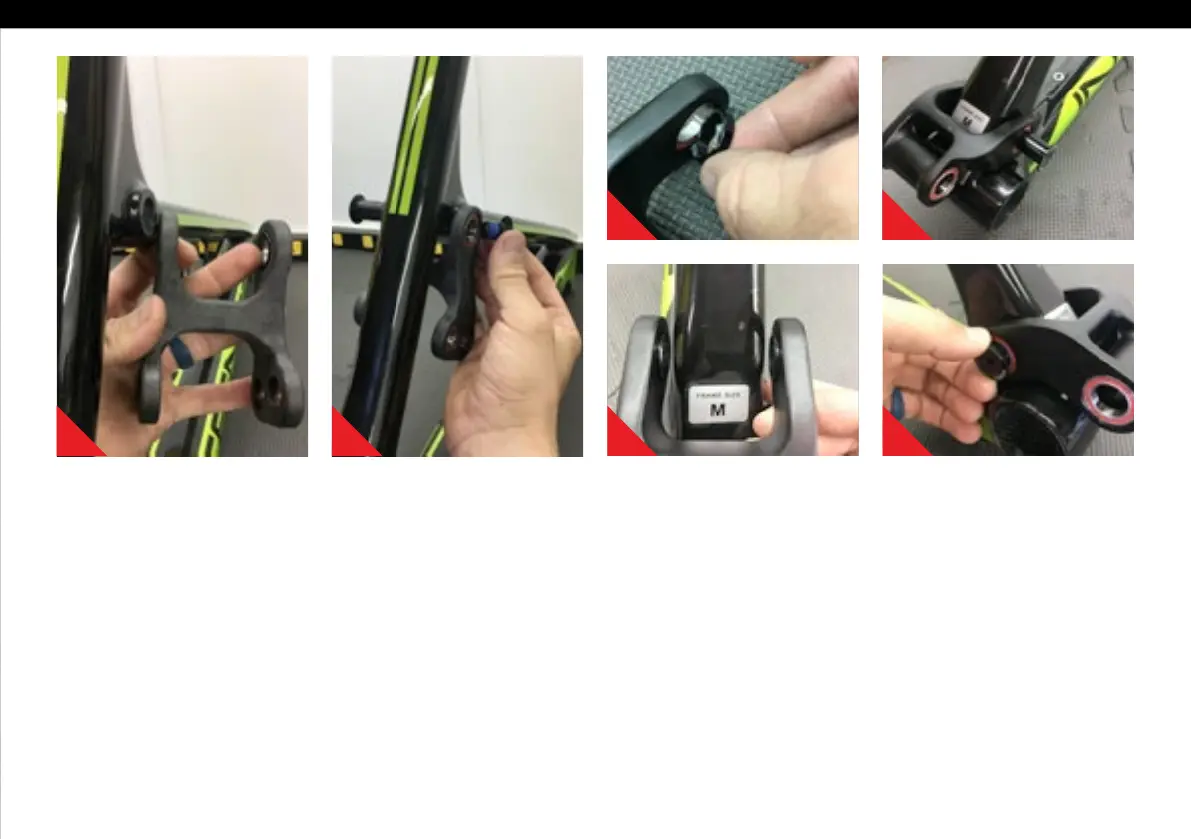

CONNECTING TOP LINK TO FRONT TRIANGLE //
A Holding top link (#130823) as
oriented in the picture above;
hold upper link pivot bolt spacers
(#130830) with your fingertips
against the inside of the bearing
races (Image #1).
B Match upper link to pivot point
on top tube making sure the
spacers don’t fall out.
C Using upper pivot axle
(#130828), insert through non-
drive side of top link bearing and
push through to drive side bearing
(Image #2).
D Thread shoulder bolt (#130829)
by hand until snug. We will return
with a 6 mm hex key and a 5 mm
hex key bit on a torque wrench
after completed frame assembly.
CONNECTING the lower LINK TO FRONT TRIANGLE //
A Holding the lower link (#130854),
use a small dab of grease on the
lower link spacers (#130831)
to hold them against the inside
of the bearing races for easier
installation (Image #3).
B From the back of the seat tube,
slide the lower link over and match
lower link to pivot point on front
triangle, making sure the spacers
don’t fall out (Image #4).
C Using the pivot axle (#130828),
insert through drive side of lower
link bearing and push through to
drive side bearing (Image #5).
D Thread shoulder bolt (#130829)
by hand until snug. We will return
with a 6 mm hex key and 5 mm
hex bit on a torque wrench after
completed frame assembly
(Image #6).
