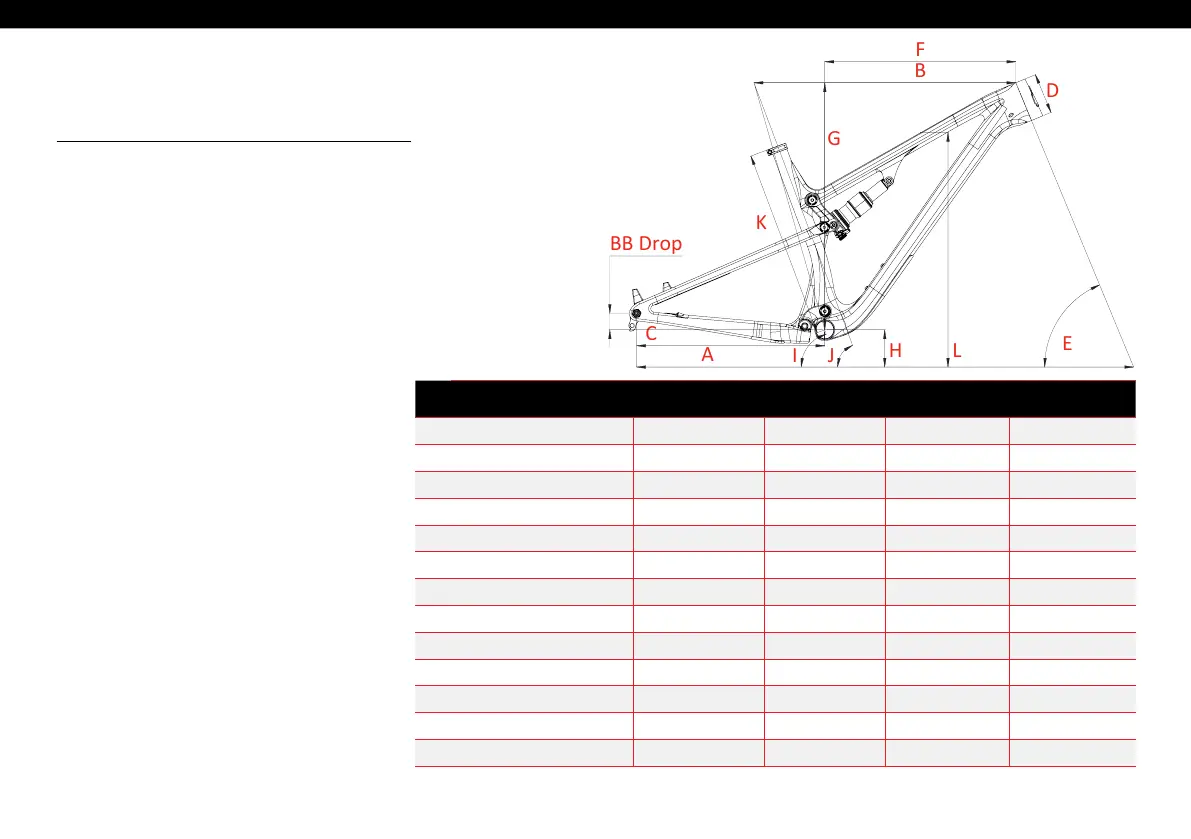

Intense Sniper T - Sniper T Geometry; Geometry Measurements

SMALL MEDIUM LARGE XLARGE
A
Wheel Base: 1142 mm / 45” 1168 mm / 46” 1195 mm / 47” 1221 mm / 48”
B
Top Tube Length: 587.9 mm / 23.1” 613 mm / 24.1” 639 mm / 25.2” 664 mm / 26.1”
C
Chain Stay Length: 439 mm / 17.3” 439 mm / 17.3” 439 mm / 17.3” 439 mm / 17.3”
D
Head Tube Length: 90 mm / 3.54” 95 mm / 3.7” 105 mm / 4.13” 115 mm / 4.5”
E
Head Tube Angle: 66.5˚ 66.5˚ 66.5˚ 66.5˚
F
Reach: 410.7 mm / 16.2” 434.8 mm / 17.1” 458 mm / 18.0” 480.3 mm / 18.9”
G
Stack: 577 mm / 22.7” 582 mm / 22.9” 592 mm / 23.3” 601 mm / 23.7”
H
BB Height: 338 mm / 13.3” 338 mm / 13.3” 338 mm / 13.3” 330 mm / 13.0”
BB Drop: 38 mm / 1.50” 38 mm / 1.50” 38 mm / 1.50” 38 mm / 1.50”
I
Seat Tube Angle (Effective): 73˚ 73˚ 73˚ 73˚
J
Seat Tube Angle (Actual): 68.4˚ 68.4˚ 68.4˚ 68.4˚
K
Seat Tube Length: 406 mm / 16” 437 mm / 17.2” 488 mm / 19.2” 538 mm / 21.2”
L
Standover Height: 779 mm / 30.7” 781 mm / 30.76” 786 mm / 31” 791 mm / 31.2”
INTENSECYCLES.com // 5
BB Drop
C
B
A
F
E
D
G
H L
K
I J
Geometry //
geometry NOTE
Geometry taken at top out with 527.1 mm axle to
crown length and 51 mm fork offset.
