10 // sniper T manual
8
7
9

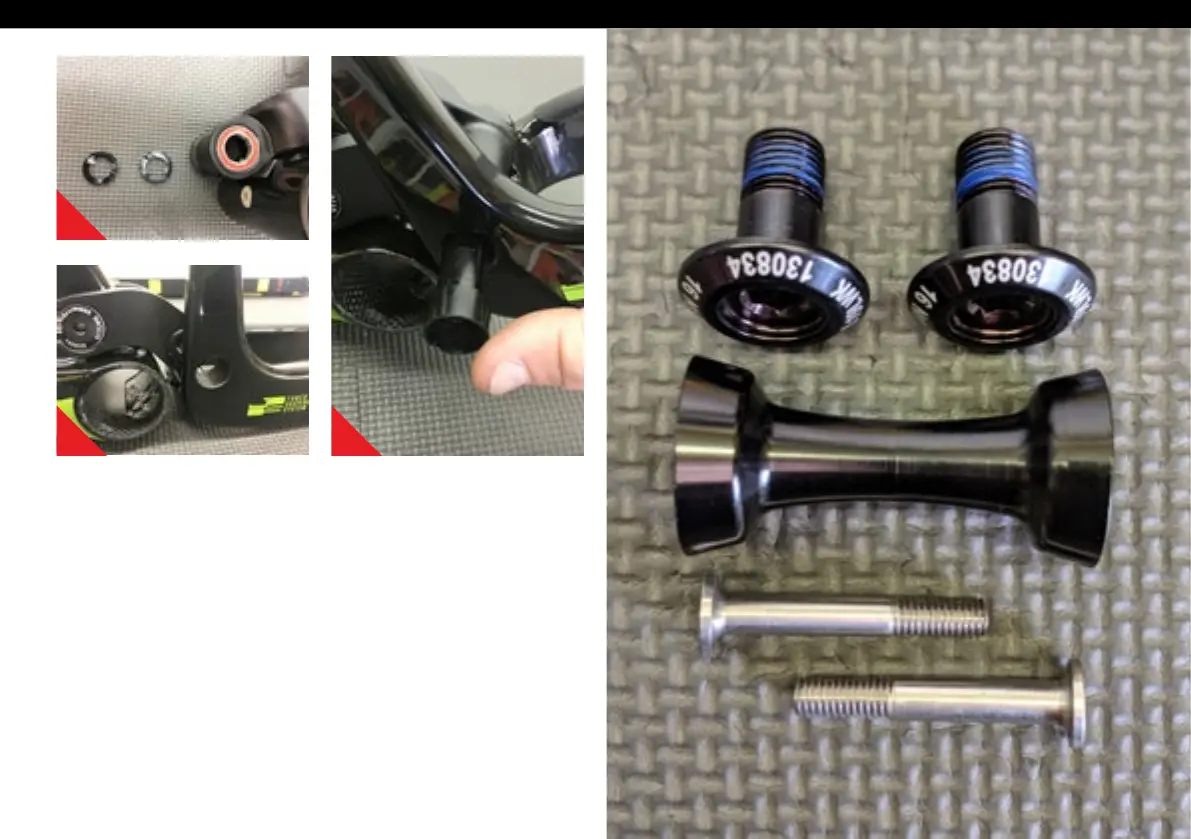

CONNECTING REAR TRIANGLE TO lower link //
A Put a small dab of grease on
the outside bearing race as well
as on the contacting surface of
the bearing cap (#130765). This
will hold the bearing caps in place
during installation (Image #7).
B Slide rear triangle over the lower
link and line up the pivot point over
the bearing caps (Image #8).
C Insert greased main pivot bolt
(#130791) into non-drive side
of lower link. Insert 8 mm hex
wrench and tighten until snug. We
will return with a torque wrench
after completed frame assembly
(Image #9).
