INTENSECYCLES.com // 1 1
11
10
13
12

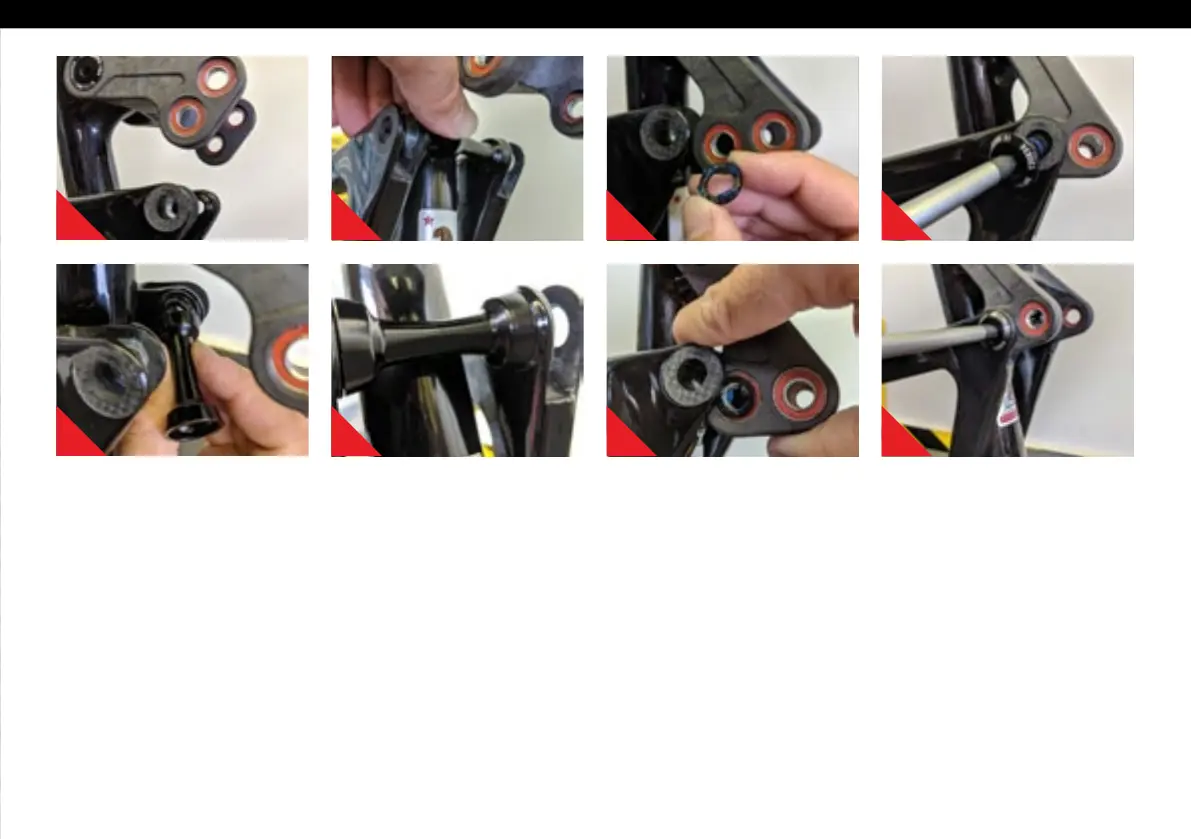

CONNECTING CROSS BRACE TO REAR TRIANGLE //
A Lift the Sniper top link up and
out of the way as shown above
(Image #10).
B Set the crossbrace (#130874)
on the rear triangle at the top link
connection (Image #11).
C Gently spread the rear triangle
pivots apart to allow the cross
brace to t into position (Image
#12 and #13).
15
14
17
16
CONNECTING REAR TRIANGLE TO TOP LINK //
A Put a small dab of grease on
the outside/inside bearing races
as well as on the contacting
surface of the bearing spacers
(#130832). Be sure to place a
greased bearing spacer on both
the outside and inside bearing
faces. You will use a total of 4
spacers for this step (Image #14).
B Swing the rear triangle up to line
up pivot point with upper bearing
spacer (Image #15).
C Insert clevis bolts (#130877/
130834) into drive side and non-
drive side seat stays. Tighten by
hand until snug. We will come
back with 6 mm hex torque wrench
(Image #16 and #17).
