12 // sniper T manual
18
19 20 21

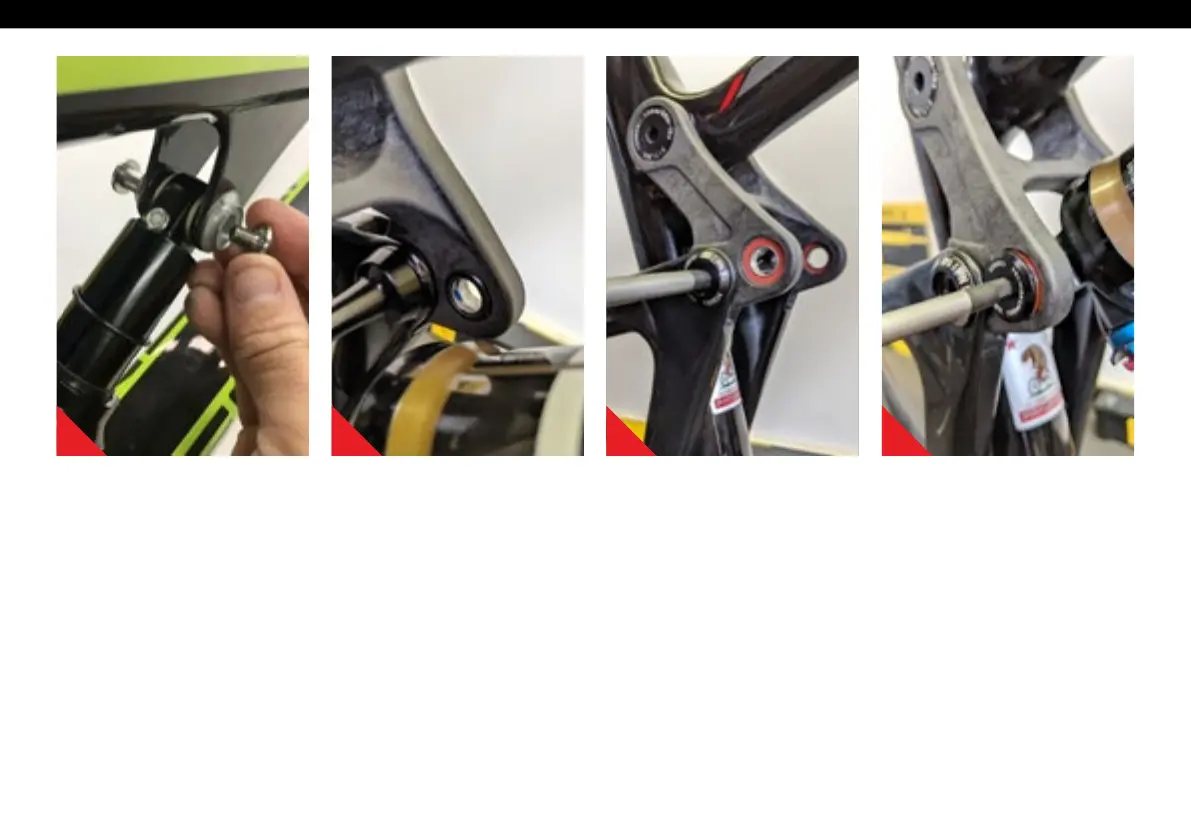

INSTALLING REAR SHOCK //
A Holding the shock with the
shaft and eyelet pointing towards
the front of the bike, align shock
eyelet with shock tab. Insert shock
shoulder bolt (#410067) from non-
drive side and thread in shock
shoulder bolt (#410066) on drive
side (Image #18). Tighten until snug
by hand and we will return with a
5 mm hex key and torque wrench
after completed frame assembly.
B Put a small dab of grease on
the bearing spacer (#130832) and
place on inside facing bearing
race. You will be using 2 bearing
spacers for this step. Then gently
pivot shock trunnion mount tabs
into place and align (Image #19).
C Using a 6 mm hex bit on a torque
wrench, tighten the clevis bolts
(#130877/130834) to 16 Nm / 140
in-lbs at the drive side and non-
drive side seat stays (Image #20).
D Insert and thread in trunnion
bolt (#130833) on drive side and
non-drive side and tighten by hand
until snug. We will return with
a 5 mm hex key torque wrench
after completed frame assembly
(Image #21).
