Intense Sniper T - Derailleur Hanger and Cross Brace Installation

INTENSECYCLES.com // 1 3
2524
2723
2622

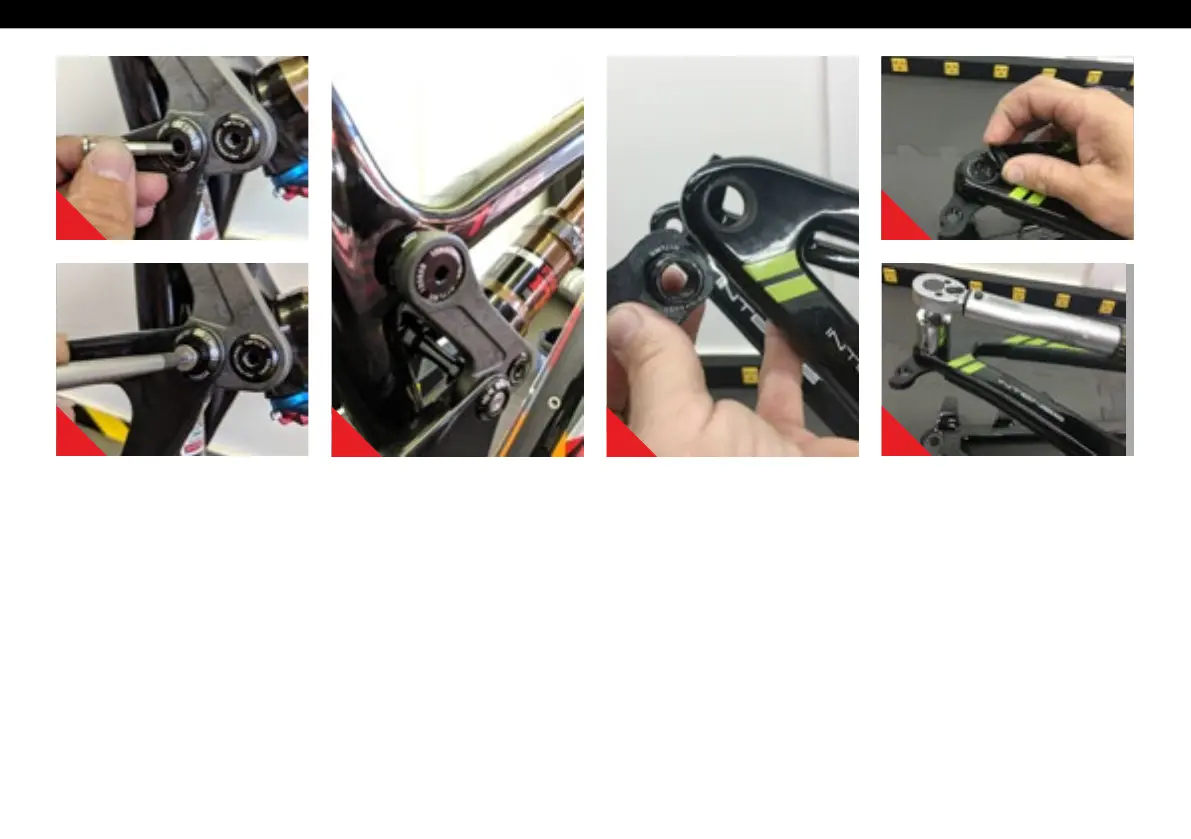

INSTALLING DERAILLEUR HANGER //
A Apply a thin layer of grease to
the derailleur hanger (#130826)
shank and install into the keyed
insert on the drive side of the rear
triangle (Image #25).
B Install derailleur hanger nut
(#130827) using a 19 mm socket,
torque to 11 Nm / 100 in-lbs
(Image #26 and #27).
INSTALLING CROSS BRACE T25 TORX HARDWARE //
A Holding the low prole screw
with T25 Torx (#130875) at the
clevis bolt (#130877/130834)
push the T25 Torx into the clevis
bolt and begin threading it into
the threaded cross brace (Image
#22 and #23). Repeat for both
right and left sides. Tighten until
snug. We will return with a T25
Torx key and torque wrench
after completed frame assembly
(Image #24).
