14 // sniper T manual
28 3029 31

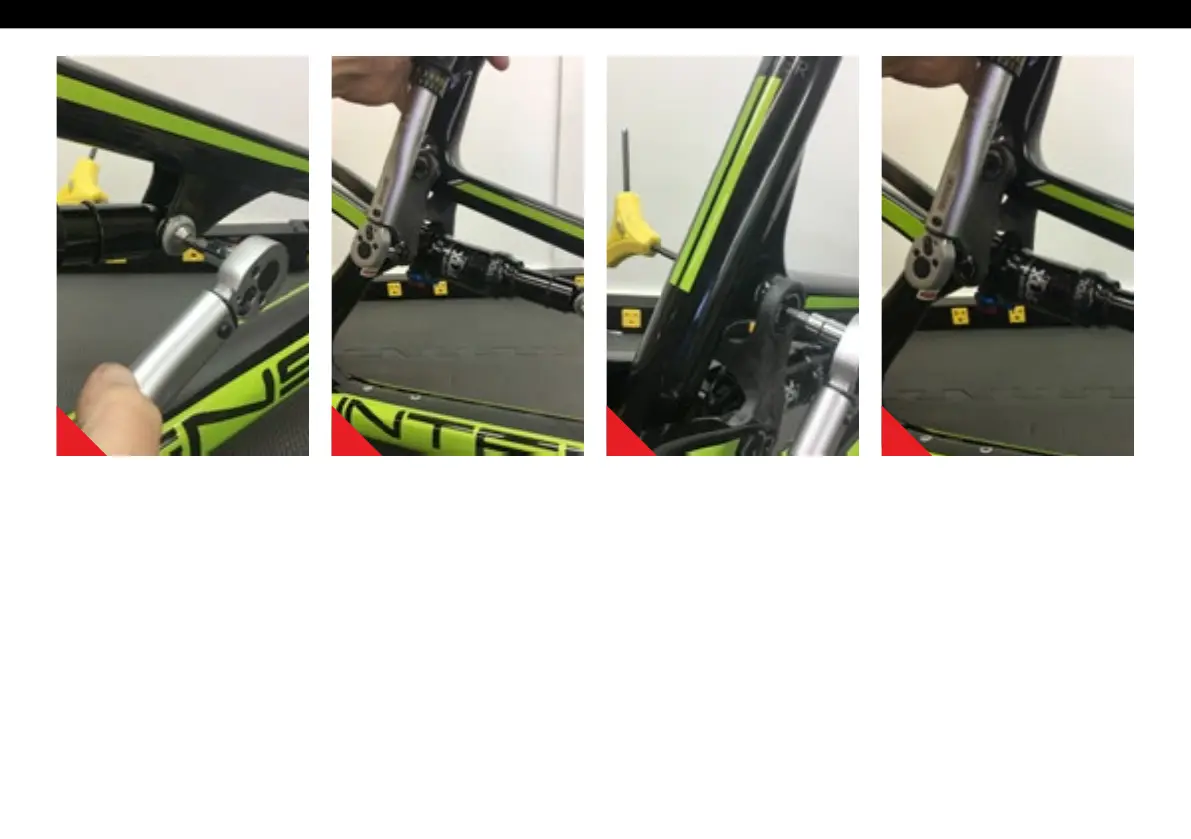

TOP LINK TORQUE PROCEDURE //
A First step here is to tighten
the top link pivot axle (#130828
& #130829). Using a 6 mm hex
wrench and a 5 mm hex bit on a
torque wrench, tighten to 16 Nm /
140 in-lbs (Image #30).
B Next we will tighten the low prole
screw (#130875). Using a T25 Torx
key and torque wrench, tighten to 4
Nm / 36 in-lbs (Image #31).
SHOCK TORQUE PROCEDURE //
A Using a 5 mm hex key and a 5
mm hex bit on a torque wrench,
tighten shock bolt (#410066
&410067) to 10 Nm / 88 in-lbs
(Image #28).
B Using a 5 mm hex bit on a torque
wrench, tighten trunnion bolts
(#130833) to 16 Nm / 140 in-lbs
(Image #29).
