Lower LINK TORQUE PROCEDURE PT.1 //

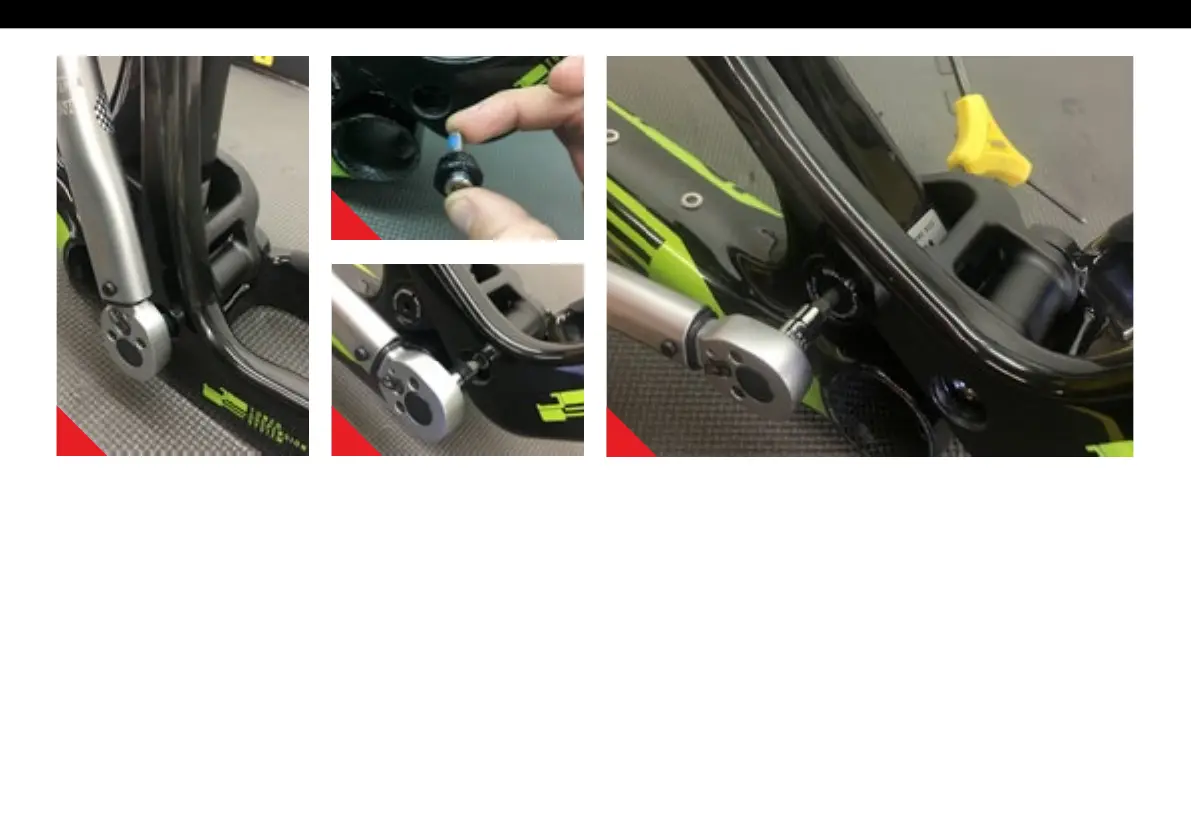

A Using a 8 mm hex bit on a
torque wrench, tighten main pivot
bolt (#130791) to 7 Nm / 60 in-lbs
(Image #32).
B Next install the cone spacer
(#130807) with the M6x22 mm
bolt (#410032) and tighten until
snug by hand (Image #33).
C Using a 5 mm hex bit on a
torque wrench, tighten to 14 Nm
/ 125 in-lbs (Image #34).
Lower LINK TORQUE PROCEDURE PT.2 //
A Using a 6 mm hex wrench and a 5 mm hex bit on a torque wrench,
tighten the pivot axle & shoulder bolt (#130828 & #130829) to 16 Nm /
140 in-lbs (Image #35).
