Rear Axle Assembly //

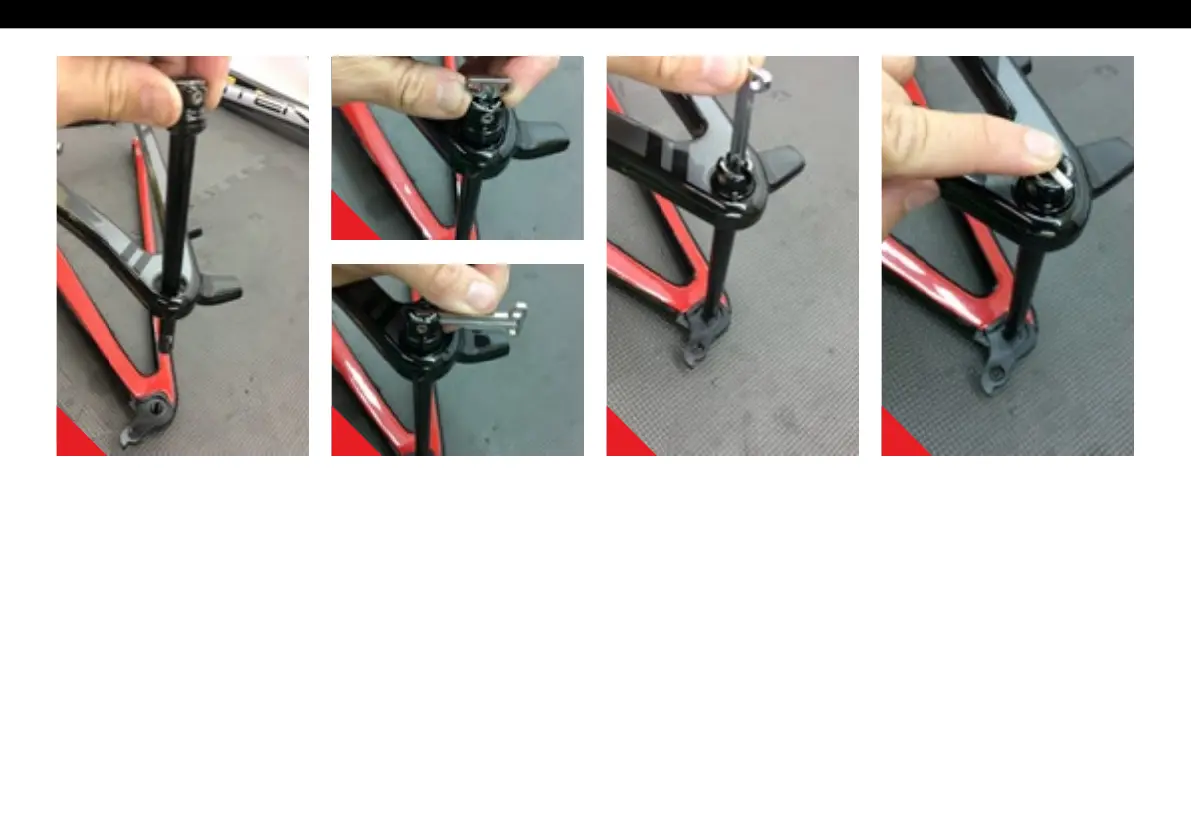

A Insert QR 148x12 mm rear axle
(#130846) into axle opening on
non-drive side (Image #36).
B Align and start the axle thread.
(Image #37) then, grab the tips of
the silver bar going through the
rear axle, pull out and push over
to one side (Image #38).
C Tighten axle using the integrated
lever to approximately 10 Nm.
D Tip lever back over until parallel
with axle and push back in until
ush (Image #39 and #40).
