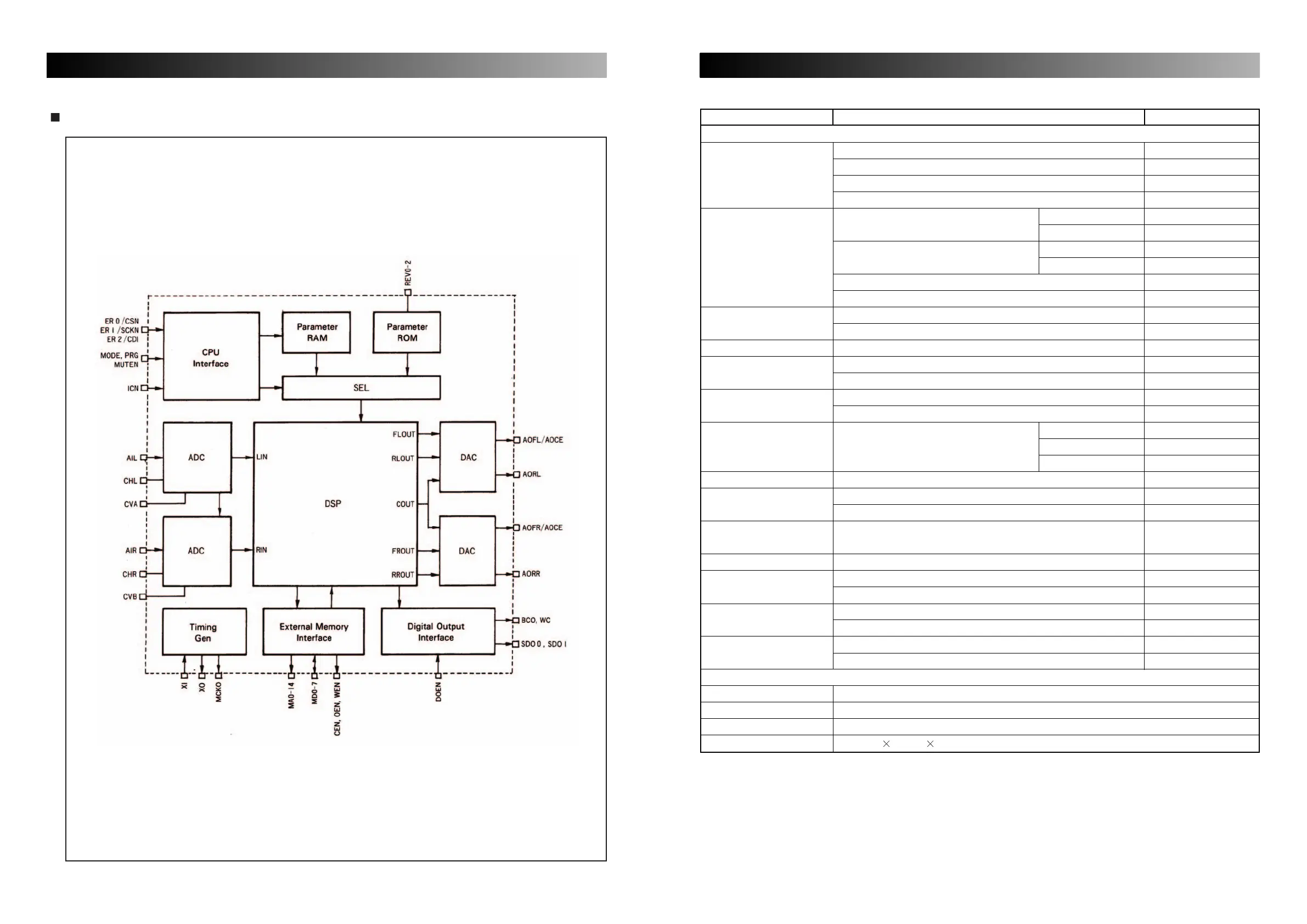

BLOCK DIAGRAM
SPECIFICATIONS
ITEM CONDITION SPEC
ELECTRICAL
Amp Rated Power Main L/4Ω @0.5% THD at 1kHz 200W
Main R/4Ω @0.5% THD at 1kHz 200W
Monitor/4Ω @0.5% THD at 1kHz 200W
Bridge Mono/8Ω @0.5% THD at 1kHz 400W
Input Level Mono Channel (1~6) LQ-Z –50dBm±3dBm
All VR Unit Gain HI-Z –40dBm±3dBm
Stereo Channel (7,8~9,10) Mic –50dBm±3dBm
Line –5dBm±3dBm
Aux L/R –10dBm±3dBm
Tape L/R –10dBm±3dBm
Output Level Main L/R, Monitor, EFX +4dBm±2dBm
All VR Unit Gain Rec –7.98dBm±2dBm
Pad S/W Gain Unit Gain 30dBm±2dBm
Frequency Response 20Hz~20kHz @1W output into 8Ω (AMP OUT) +1dBm/–3dBm
20Hz~20kHz @+4dB output into 600Ω (Main, Monitor, EFX) +1dBm/–3dBm
T.H.D 20Hz~20kHz @100W output into 4Ω (AMP OUT) 0.5% less than
20Hz~20kHz @+14dB output into 600Ω (Main, Monitor, EFX) 0.2% less than
Input Channel Unit Gain High 12kHz ±12dB±2dB
Tone Control Output 4dBm Check Mid 2.5kHz ±12dB±2dB
Low 80Hz ±12dB±2dB
Graphic Equalizer 7 bands (63, 160, 400, 1k, 2.5k, 6.4k, 15kHz) ±12dB±2dB
Residual Noise (with All VR Min Check (Main L/R, Monitor, EFX OUT) 90dB
20Hz~20kHz BPF) Output VR only Max (Main L/R, Monitor, EFX OUT) 70dB
Level Meter 7 point @Out 4dBm 0dB setting –20, –10, –7, –4,
0, +3, +6dB
Phantom Power Input Channel 1~6 Condenser Mic 48V±2V
Maximum Output Level Main L/R, Monitor, EFX 16dBm More than
Befor Clipping Rec 4dBm More than
Crosstalk & Pan Pot 50dB More than
Separation (1kHz) Into Out 70dB More than
D.S.P S-Hall, L-Hall, Vocal 3 Preset Effect
Foot Switch Mute
GENERAL
Power Source AC 100–240V, 50/60Hz
Power Consumption 517W
Weight 22kg
Dimensions 480(W)
277(H) 320(D) mm
* Specifications and design subject to change without notice for improvements.
