16 Ga. Medium Crown Stapler
Drives 7/16" Crown Staples (1" to 2" / 25 to 51mm)
Model No. SN5016
Item No. 64405
10
Interchange Brands Operator’s Manual
Operating the Stapler
NOTE: The information contained in this Manual is designed to assist you in the safe
operation of the stapler. Some illustrations in this Manual may show details or attach-
ments that are different from those on your stapler.

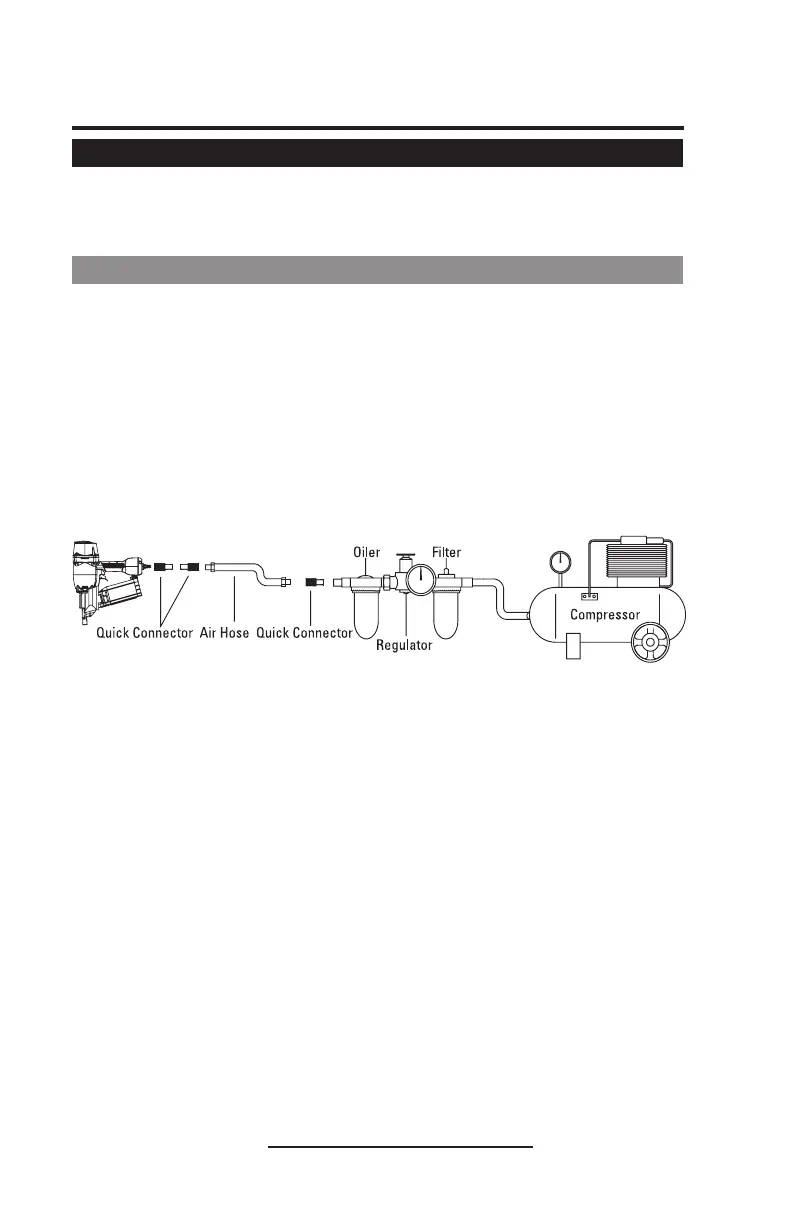

Air Supply, Connections and Operating Pressure
Read section titled SAFETY. Make sure of the following before operation:
Air Supply
1. Power source (Compressor)
Use only clean, dry, regulated compressed air as a power source for this
stapler.
NEVER use oxygen or other bottled gases, as an explosion may occur.
Air compressors used to supply compressed air to this stapler must comply
with the requirements of the latest version of ANSI Standard B 19.3 Safety
Standard for Compressors for Process Industries.
Moisture or oil in the air compressor may accelerate wear and corrosion in
the stapler.
Drain daily.
Connections
1. Fittings
Install a female coupler to the hose. The female coupler will connect to the quick
release that fits the tool.
2. Filter-Regulator-Lubricator
NEVER connect stapler to pressure which potentially exceeds 150psi.
Filter-regulator-lubricator units supply an optimum condition for the stapler
and extend the stapler life. These units should always be used.
Filter
The filter removes moisture and dirt mixed in compressed air.
Keep the filter clean by maintaining tool regularly.
Drain daily.
Regulator
The regulator controls the operating pressure for safe operation of the
stapler.
Inspect the regulator before operation to be sure it operates properly.
Use a regulator with a pressure range of 0-100psi.
Lubricator
The lubricator supplies an oil mist to the stapler.
Inspect the lubricator before operation to be sure the supply of lubricant is
adequate.
To Next Page
