16 Ga. Medium Crown Stapler
Drives 7/16" Crown Staples (1" to 2" / 25 to 51mm)
Model No. SN5016
Item No. 64405
11
Interchange Brands Operator’s Manual
If an inline lubricator is not used, a few drops of oil will need to be added to
the air inlet before each use.
3. AIR HOSE
Air hose must be professional grade and have a minimum working pressure
rating of 150psi or 150% of the maximum pressure produced in the system,
whichever is higher.
Operating Pressure
1. OPERATING PRESSURE RECOMMENDATIONS
Recommended operating pressure is 70 to 120 psi / 5 to 8.5 kgs.
Select the operating pressure within this range for the best fastener
performance. The staple length and thickness and the hardness of the wood
are factors in determining what the pressure should be set at.
The correct air pressure is the lowest pressure which will do the job. Using
the stapler at a higher than required air pressure unnecessarily over
stresses the stapler.
Do not exceed this recommended operating pressure.
Lubrication
It is important that the tool be properly lubricated. Without proper lubrication, the tool
will not work properly and parts will wear prematurely.
Use INTERCHANGE pneumatic tool lubricant. Do not use detergent oil or
additives. These lubricants will harm the O-rings and other rubber parts. This
will cause the tool to malfunction.
Filter-regulator-lubricator units should always be used. Keep the lubricator
filled with INTERCHANGE pneumatic tool lubricant.
If a lubricator is not available, supply 3 to 5 drops of INTERCHANGE
pneumatic tool lubricant into the air plug on the tool twice a day.

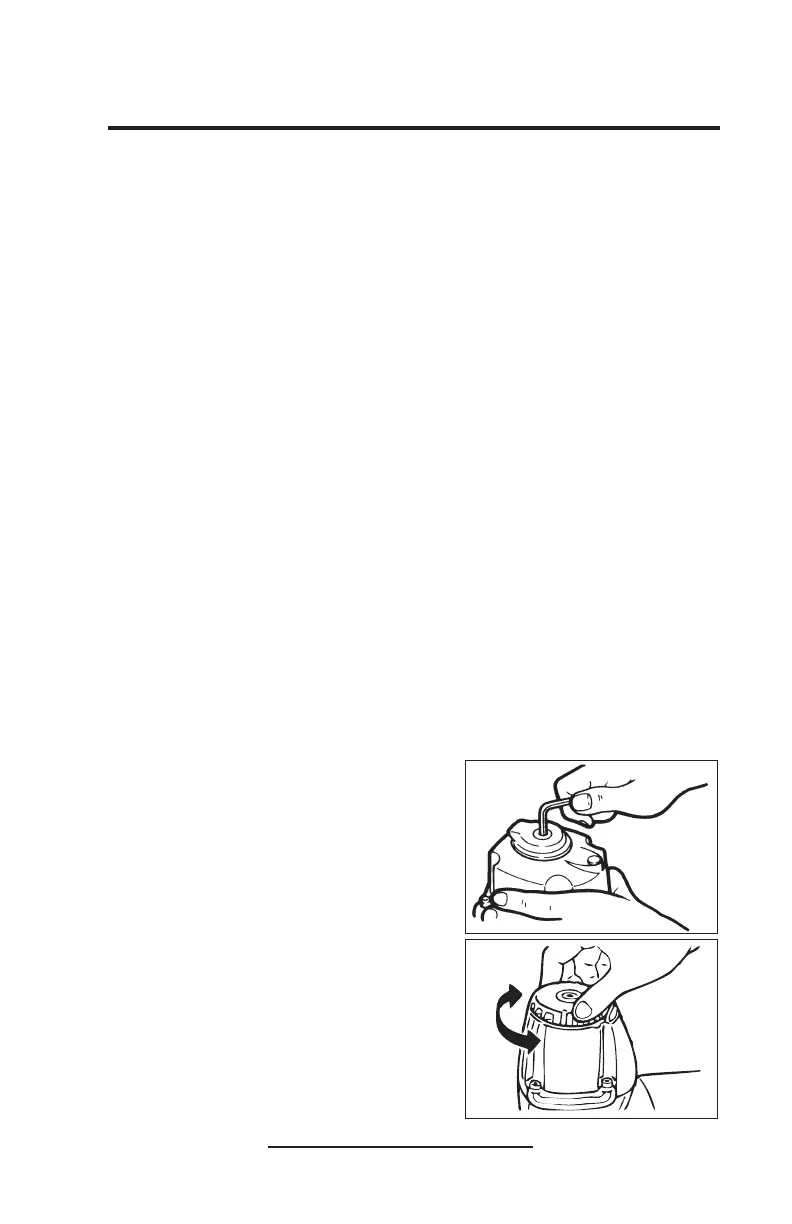

Directional Exhaust Cover
(on some models)
WARNING: Always disconnect air supply
before rotating the exhaust cover.
■ Rotate Cover by Unscrewing
Loosen screw as shown. Adjust
to desired exhaust direction and
tighten screw.
■ Rotate Cover by Hand
Direction of the exhaust air can be
changed by rotating exhaust cover
by hand.
