Scaling then the scaling values will be taken from the “Load Cell / BSC8 Digital Bridge Amplifier
Calibration Certificate”

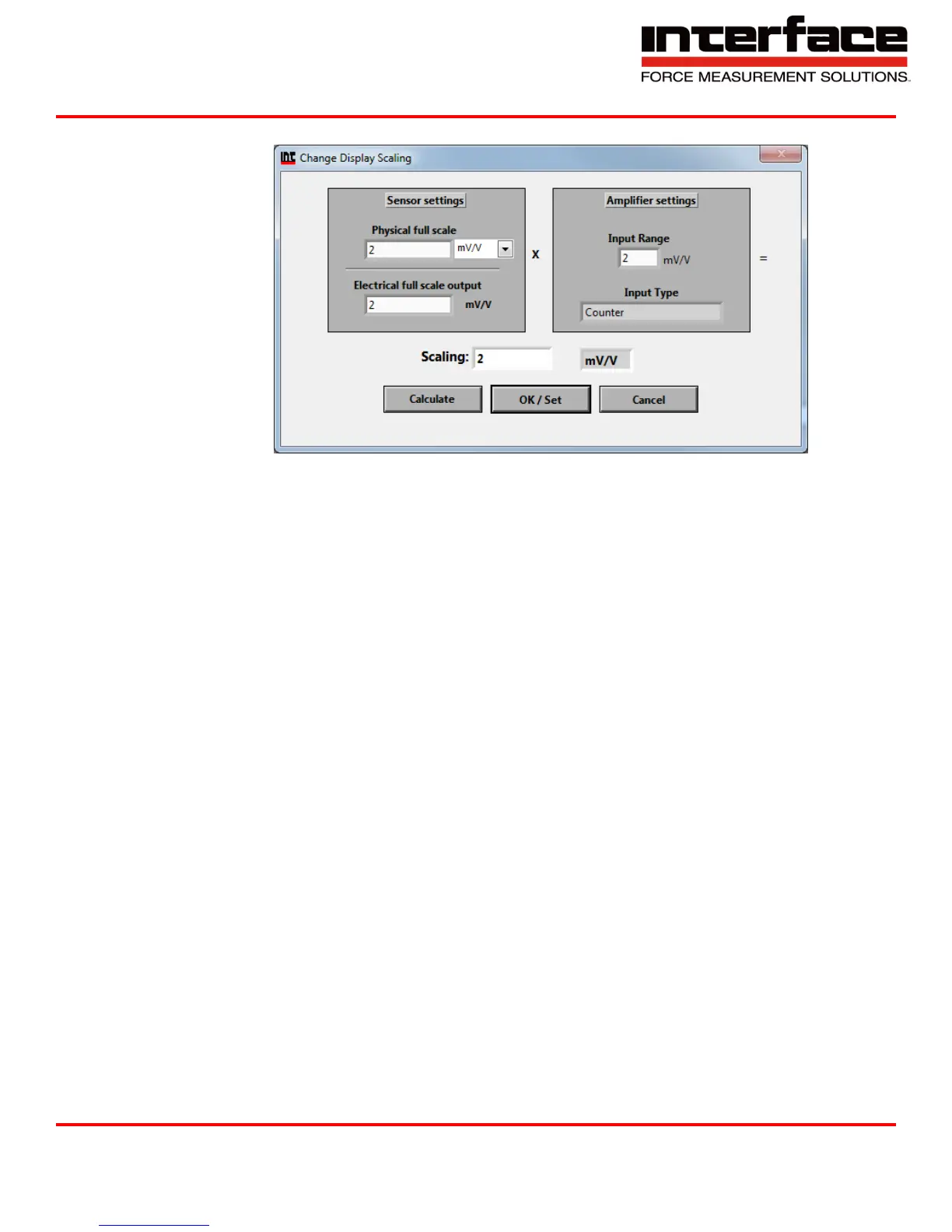

FIGURE 20 - EXAMPLE OF SCALING
4.1. Physical full scale is typically the capacity of the sensor.
4.2. Electrical full scale output is the output of the sensor at the Physical full scale.
4.3. Input Range is always 2 mV/V and should not be changed.
