BSC4 Operating Manual
Interface Inc. ● 7401 East Butherus Drive, Scottsdale, Arizona 85260 USA ● Phone 480.948.5555 ● Fax 480.948.1924
www.interfaceforce.com ● Email: contact@interfaceforce.com ● 800.947.5598
Document Number 15-183 Rev B Page 54 of 74

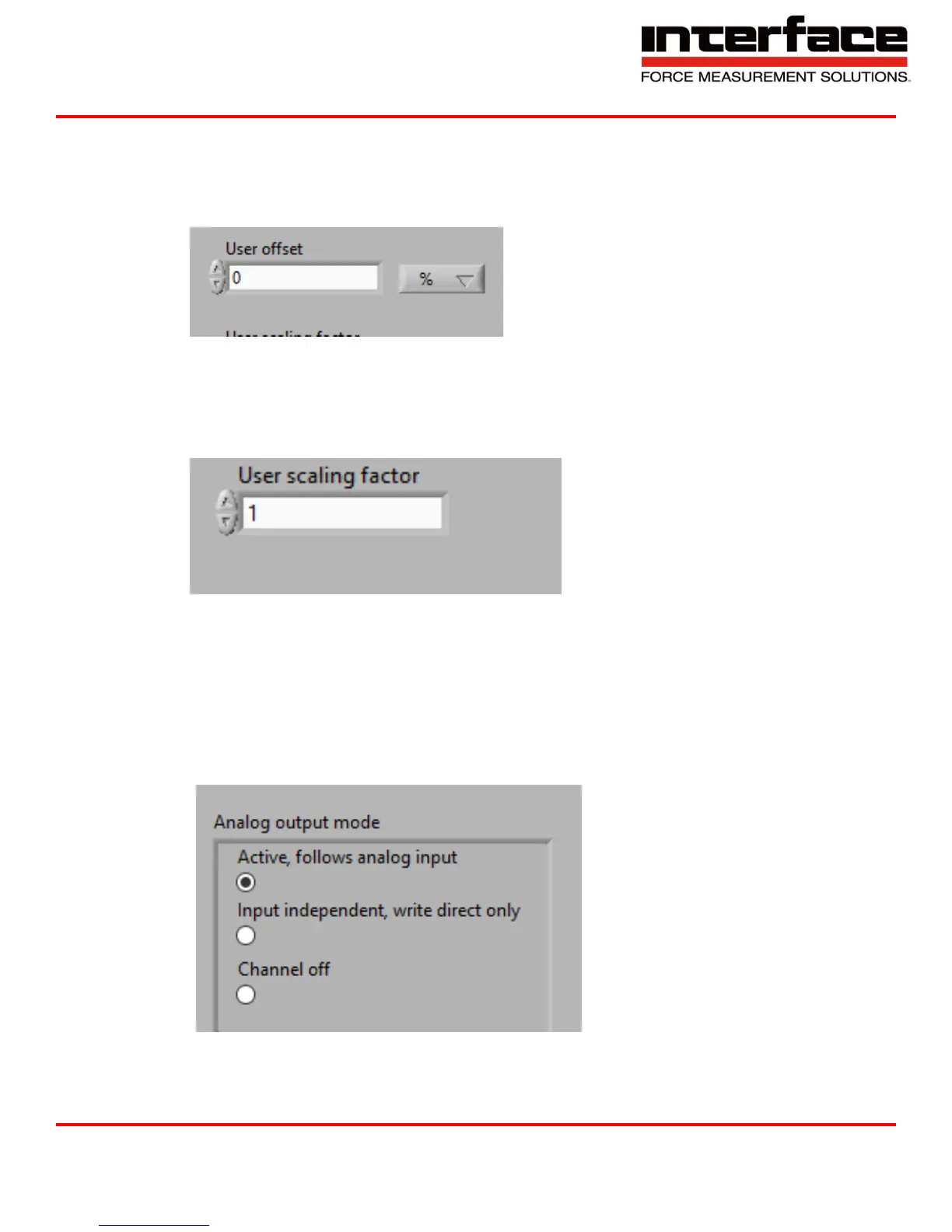

4.4.2. User offset – Additional offset in percent, which defines output value at zero analog input
value.
A. E.g. if set to 50%, analog out value will be half of the positive range.
B. 2.5V at 0-5V or ±5V.
FIGURE 62 - USER OFFSET
4.4.3. User scaling factor – Scaling factor to adapt analog input physical values to analog output.
A. If using User offset, set User offset first, then User scaling.
FIGURE 63 - USER SCALING FACTOR
4.4.4. Analog output mode
A. Active, follows analog input – Output value depends on setting and analog input value of
the same input channel number.
B. Input independent, write direct only – Use analog output DAC directly.
C. Channel off – Channel switch is off.
FIGURE 64 - ANALOG OUTPUT MODE
