4.5. Value Mode

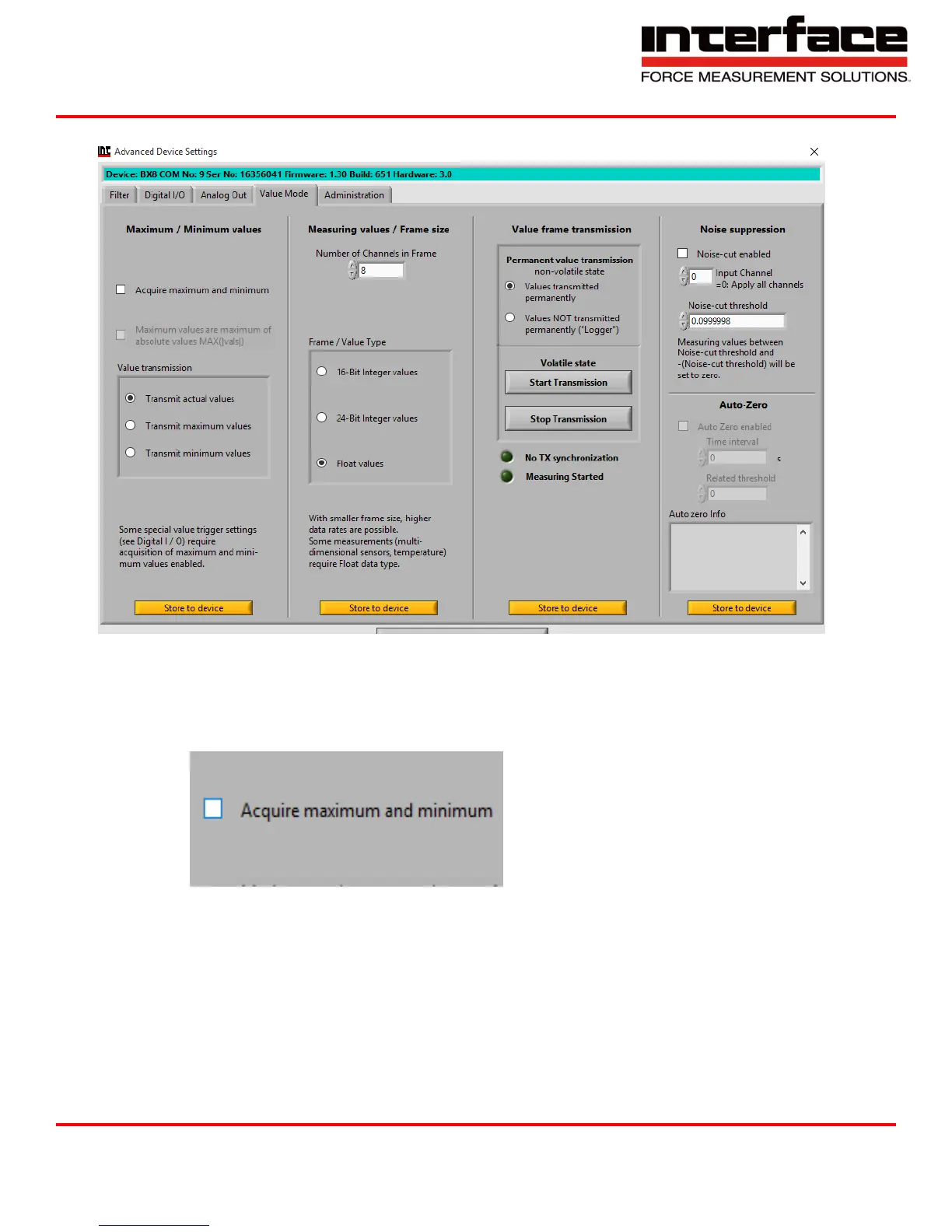

FIGURE 65 - VALUE MODE
4.5.1. Acquire maximum and minimum – Max/Min value determination enabled. This is a
precondition for other max/min settings, also for some threshold and value-trigger modes.
FIGURE 66 - ACQUIRE MAX AND MIN
4.5.2. Maximum values are maximum of absolute values MAX(|vals|) – Only active if “Acquire
maximum and minimum” is checked. Replaces the maximum value register with that maxima
