of the absolute values, so that both positive maximum and negative maximum values are
determined.

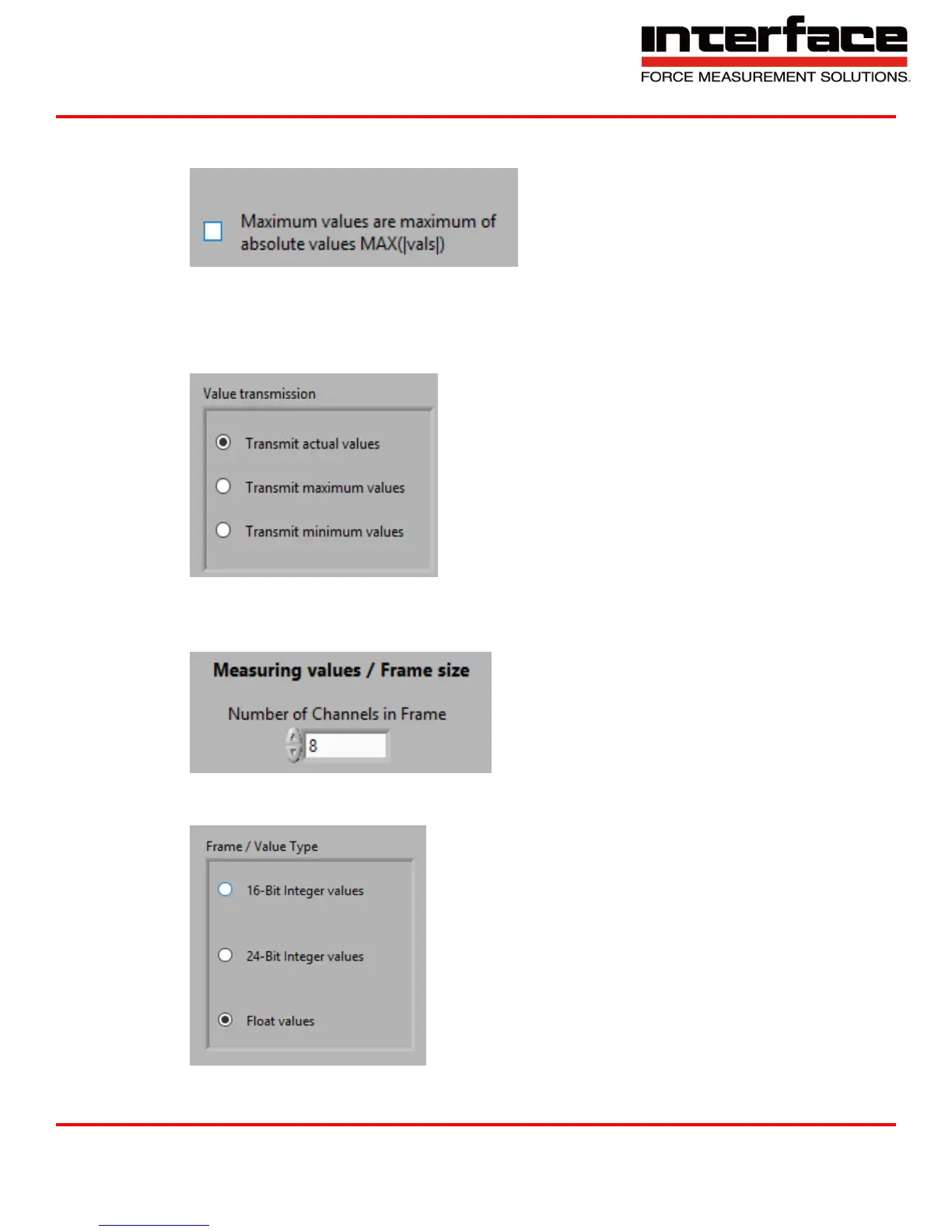

FIGURE 67 - MAX VALUES ARE MAXIMUM OF ABSOLUTE VALUES
4.5.3. Value transmission – Which values are in the value frame: All channels are either actual
values, maximum values or minimum values.
FIGURE 68 - VALUE TRANSMISSION
4.5.4. Number of Channels in Frame – Number of input channel values in the measuring data frame.
With smaller numbers, higher data frequencies are possible.
FIGURE 69 - MEASURING VALUES / FRAME SIZE
4.5.5. Frame / Value Type – Data type of measuring values in the value-frame that device transmits.
FIGURE 70 - FRAME / VALUE TYPE
