BSC4 Operating Manual
Interface Inc. ● 7401 East Butherus Drive, Scottsdale, Arizona 85260 USA ● Phone 480.948.5555 ● Fax 480.948.1924
www.interfaceforce.com ● Email: contact@interfaceforce.com ● 800.947.5598
Document Number 15-183 Rev B Page 57 of 74

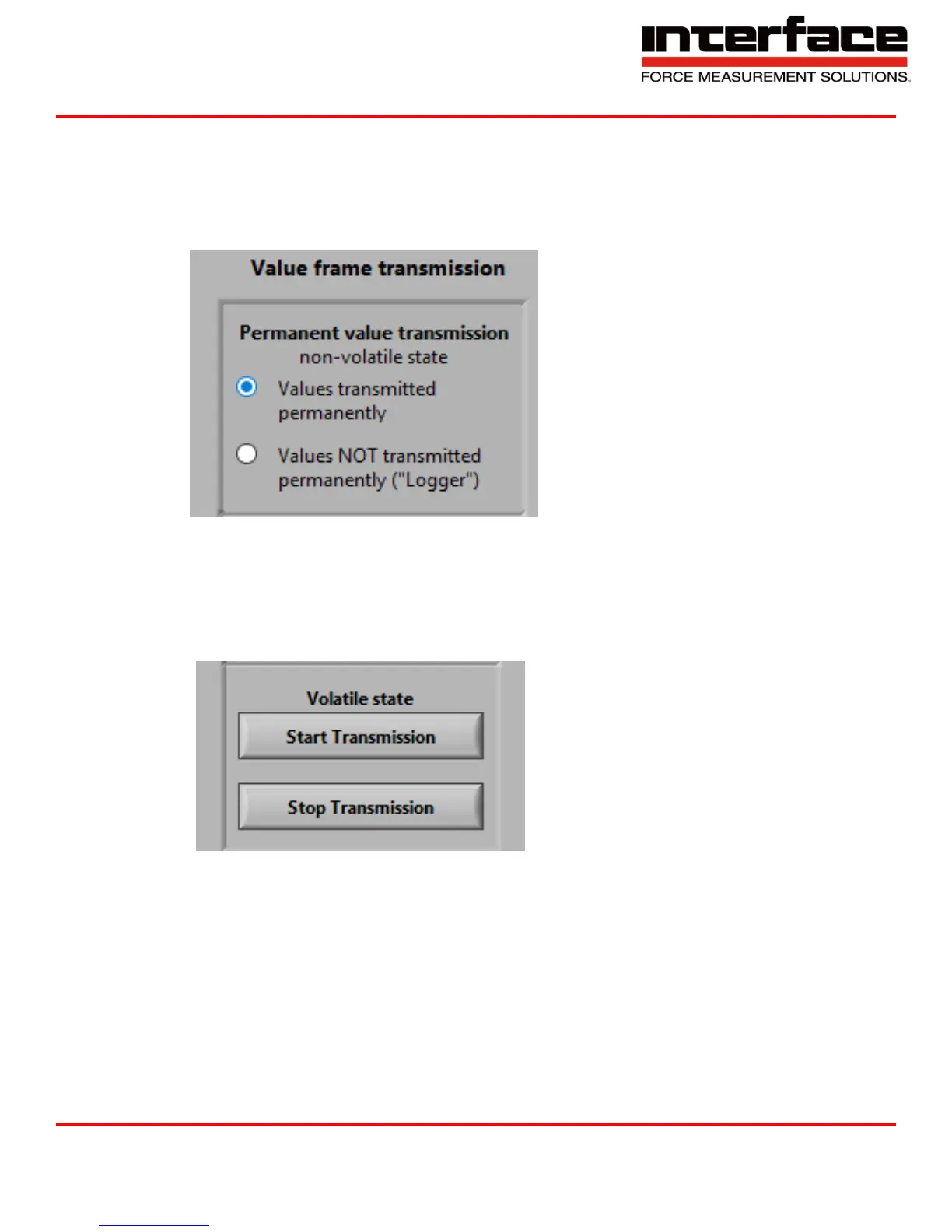

4.5.6. Value frame transmission
A. Values transmitted permanently – After power-on, the device transmits measuring values
continuously.
B. Values NOT transmitted permanently – After power-on, the device transmits measuring
values on request.
FIGURE 71 - VALUE FRAME TRANSMISSION
4.5.7. Volatile state
A. Start transmission of measuring values, if permanent value transmission is off. State not
stored in non-volatile memory.
B. Stop Transmission of measuring values, if permanent value transmission is on. State not
stored in non-volatile memory.
FIGURE 72 - VOLATILE STATE
