To define the FTP parameters:
1. From the menu toolbar, click Configuration > Network > Advanced Settings >
FTP.
2. Configure the FTP settings, including the Server Address, Port, User Name,
Password, Directory Structure, and upload type.
Anonymous: Select this check box to enable anonymous access to the FTP server.
Directory Structure: Select the Save in the root directory, Save in the parent
directory, or Save in the child directory. When the parent directory is selected,
select Use Device Name, Use Device Number, Use Device IP, or Custom (type in
a directory name) for the name of the parent directory. If Save in the child
directory is selected, select Use Camera Name, Use Camera Number, or
Custom as the name of the child directory.
Snapshot Filing Interval: Select a number of days to specify how many days of
snapshots should be stored in a single folder. All snapshots are saved to a single
folder in default mode (OFF).
Snapshot Name: Select Custom Prefix to change the default snapshot name
prefix. Invalid characters for the custom prefix are as follows: / \ : * ? ‘ “ < > | %.
Upload Snapshot: Select this check box to enable the uploading of snapshots to an
FTP server.
Test: Click Test to test the FTP parameters.
3. Click Save to save changes.

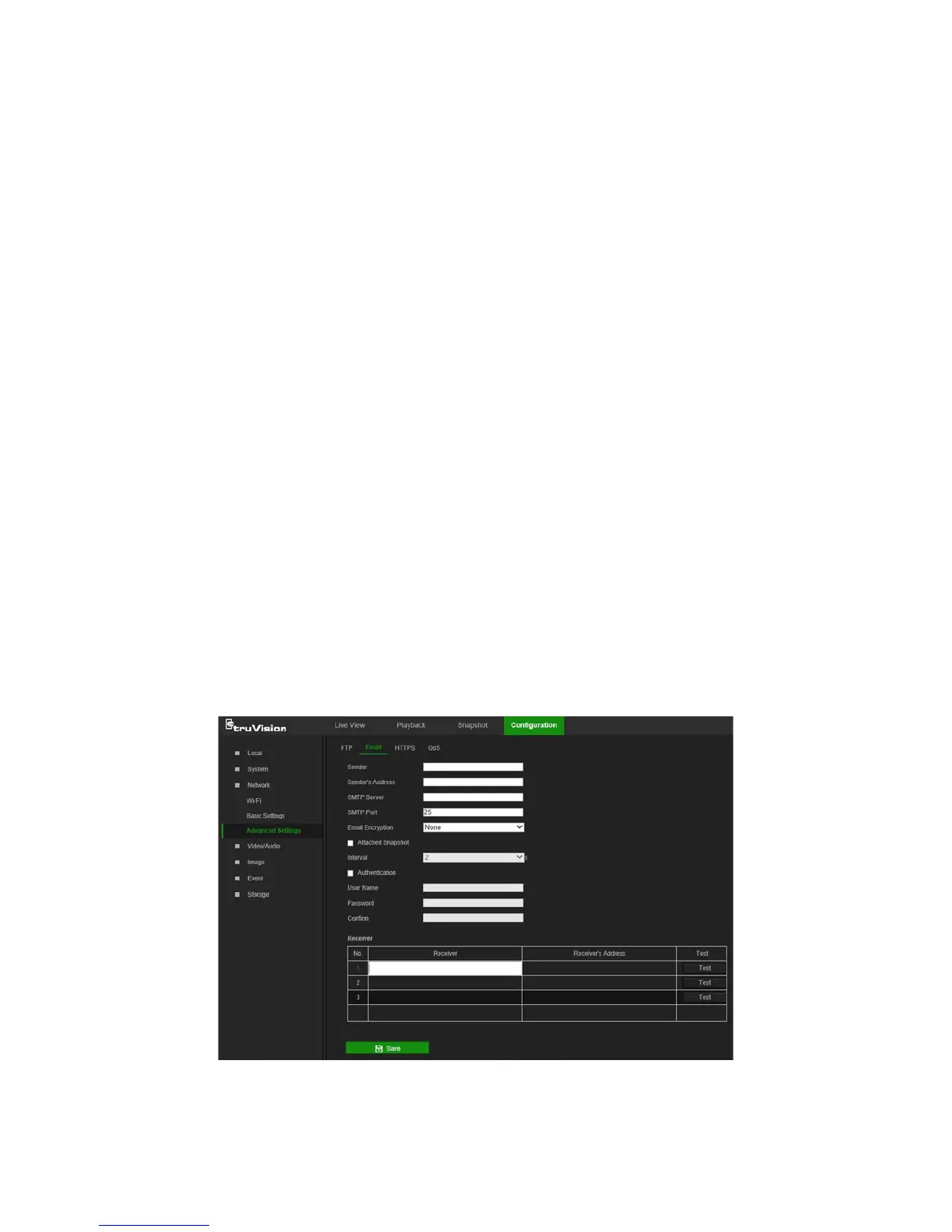

To set up the email parameters:
1. From the menu toolbar, click Configuration > Network > Advanced Settings >
Email.
2. Configure the following settings:
Sender: The name of the email sender.
TruVision 81 Series IP Camera Configuration Manual 19
