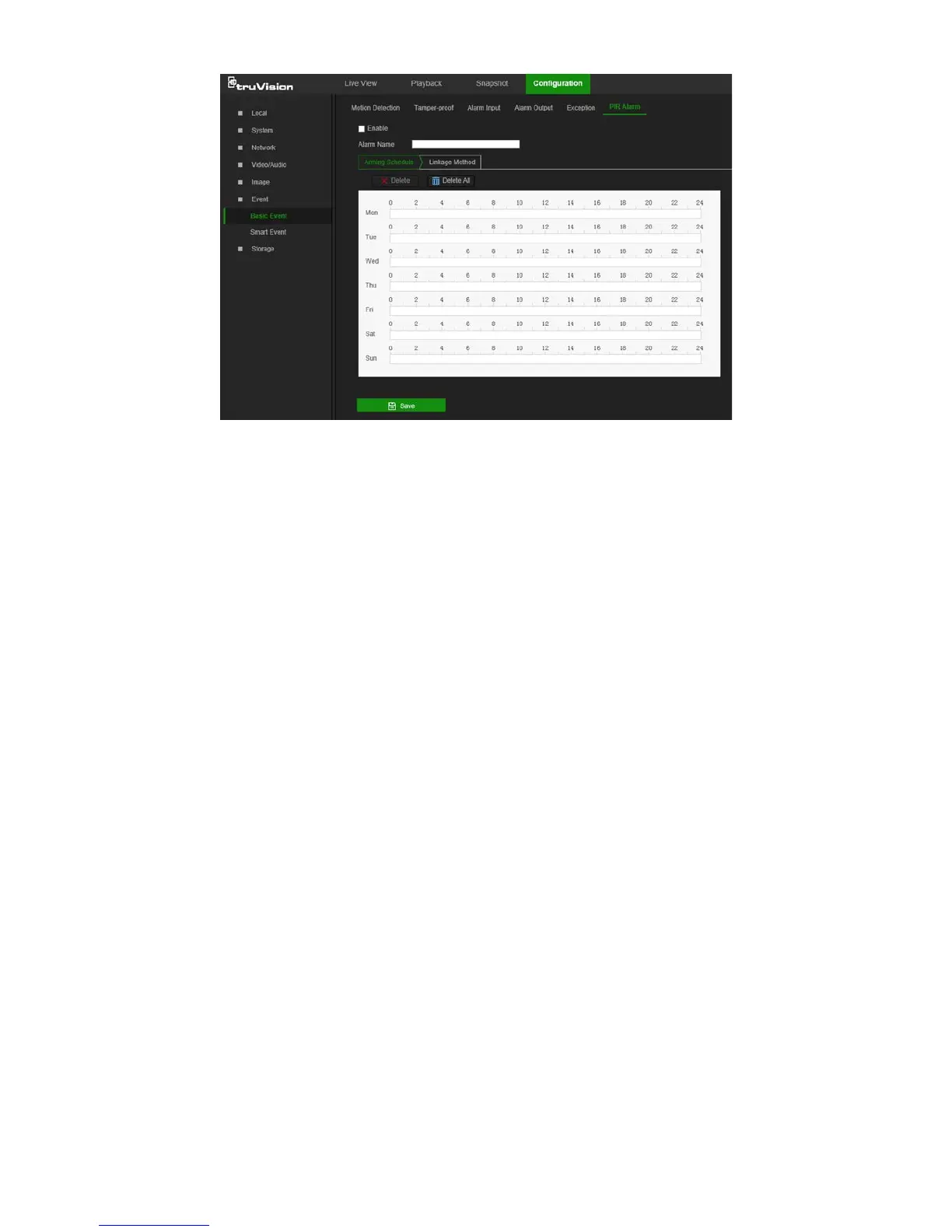

2. Select the Enable check box.
3. Type the alarm name in the Alarm Name box.
4. Drag the mouse on time bar to set the arming schedule and click Save when
finished.
Note: All scheduled times are based on the 24-hour clock. Ensure that the correct
time zone and daylight saving time settings have been configured in Configuration
> System > System Settings.
5. Click Save to save changes.
6. Click the Linkage Method tab to specify the linkage method for when an event
occurs. Select one or more response methods for the system when an alarm is
triggered. See āLinkage methodsā on page 31 for details.
7. Click Save to save changes.
Smart event
Intrusion detection
An area in the surveillance scene can be configured to detect when intrusion occurs. If
someone enters the area, a set of alarm actions can be triggered.
38 TruVision 81 Series IP Camera Configuration Manual
