Intermec EasyCoder 3400 Getting Started Guide

6
3440G.006
Power
Alert
Feed/Pause
Empty/Pause

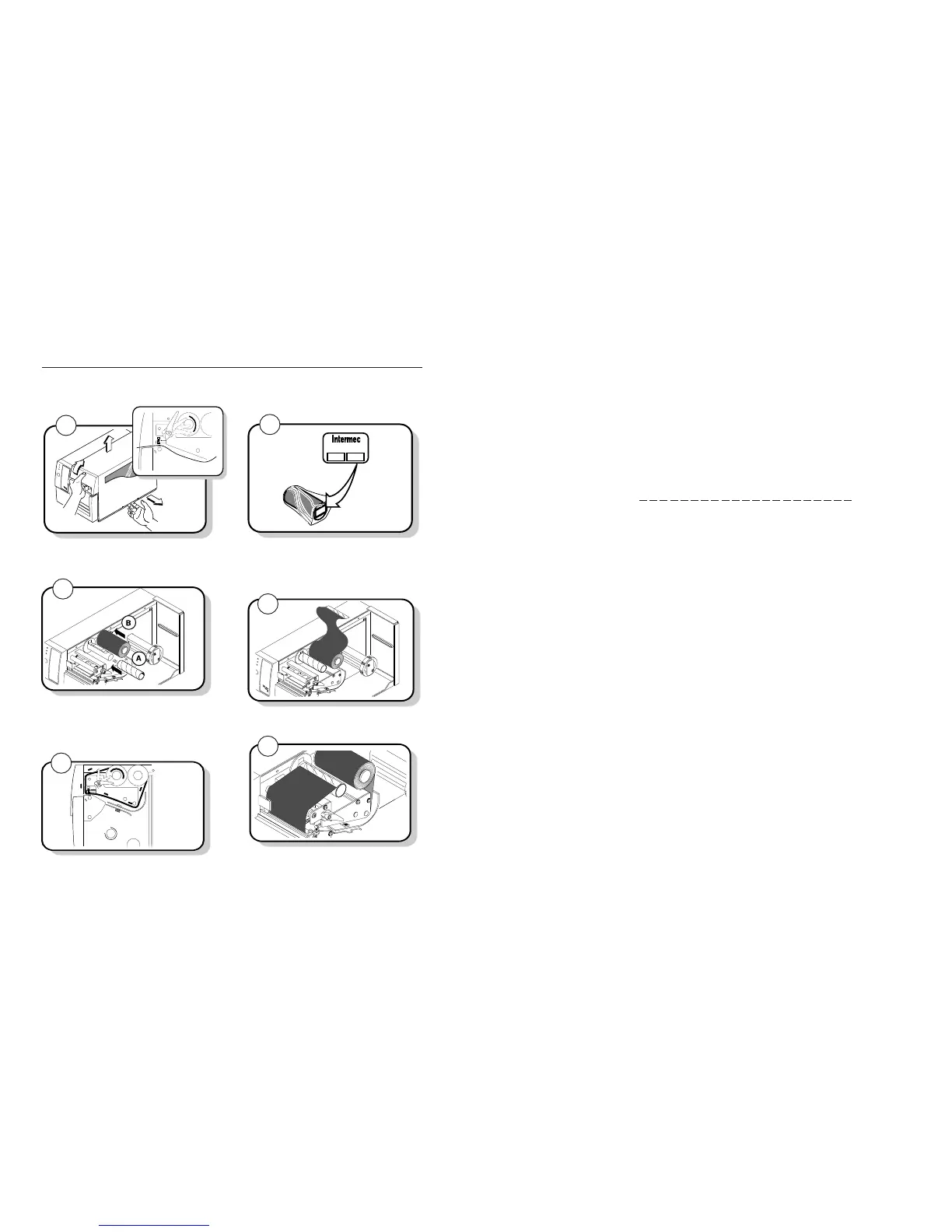

Loading Thermal Transfer Ribbon
If you plan to print in thermal transfer mode, you must install a thermal transfer ribbon on the
ribbon supply hub after you install the thermal transfer media.
2
4
3440G.016
Power
Alert
Feed/Pause
Empty/Pause
3
➤
➤
➤
➤
➤
➤
5
3440G.030
Power
IntermecIntermec
Alert
Feed/Pause
Empty/Pause
1
Save the plastic bag that your media came in. Attached
to the bag is a label with a three-digit sensitivity
number printed on it. You need this number to set the
correct media sensitivity number. For help, see “Setting
the Media Sensitivity Number” later in this guide.
3440G.017
3440G.039
➤
A Slide the empty ribbon core that comes with the
printer onto the ribbon rewind hub.
B Slide the roll of thermal transfer ribbon onto the
ribbon supply hub with the ribbon roller unwind-
ing clockwise.
Detach the leader from the thermal transfer ribbon roll
and unwind approximately 8 inches of ribbon.
Route the ribbon leader through the printer mechanism.
Attach the ribbon leader to the empty ribbon core
using the adhesive strip on the leader edge.
Open the media cover.
Make sure the printhead is raised. If not, turn the head
lift lever clockwise until the printhead releases.
SENSITIVITY NUMBER
5✩7
3440G.033
3440G.033
3440G.018
6
19
The sensitivity number on each roll of thermal transfer media or ribbon has an asterisk (*) in place of
one of the digits. To optimize the sensitivity number for thermal transfer media, you combine the
digits as in this example.
Media or Ribbon Sensitivity Rating Description
Thermal transfer media 56* The asterisk for the third digit is
reserved to identify the ribbon’s
sensitivity number.
Thermal transfer ribbon 5*7 The asterisk for the second digit is
reserved to identify the media’s
sensitivity number.
567 optimum sensitivity rating
To set the sensitivity rating for direct thermal media, use the three-digit sensitivity rating located on
the roll of media or listed in the Direct Thermal Media Sensitivity Settings table, later in this guide.
To use DOS to set the media sensitivity number on a PC
1. At the DOS prompt, type the following command and press Enter:
MODE COM1 96,E,7,1,N
2. Type the following command lines and press Enter:
COPY CON COM1
<STX><SI>g1,567<ETX>^Z
where:
<SI>g1,567 sets the media sensitivity number to 567.
Note: If you receive a write fault error, your cabling may be incorrect. See “Connecting the Printer to
Your System” earlier in this guide for more information.
