Chapter 2 — Spare Parts List
12 EasyCoder PF2i, PF4i, and PF4i Compact Industrial Printers Spare Parts Catalog

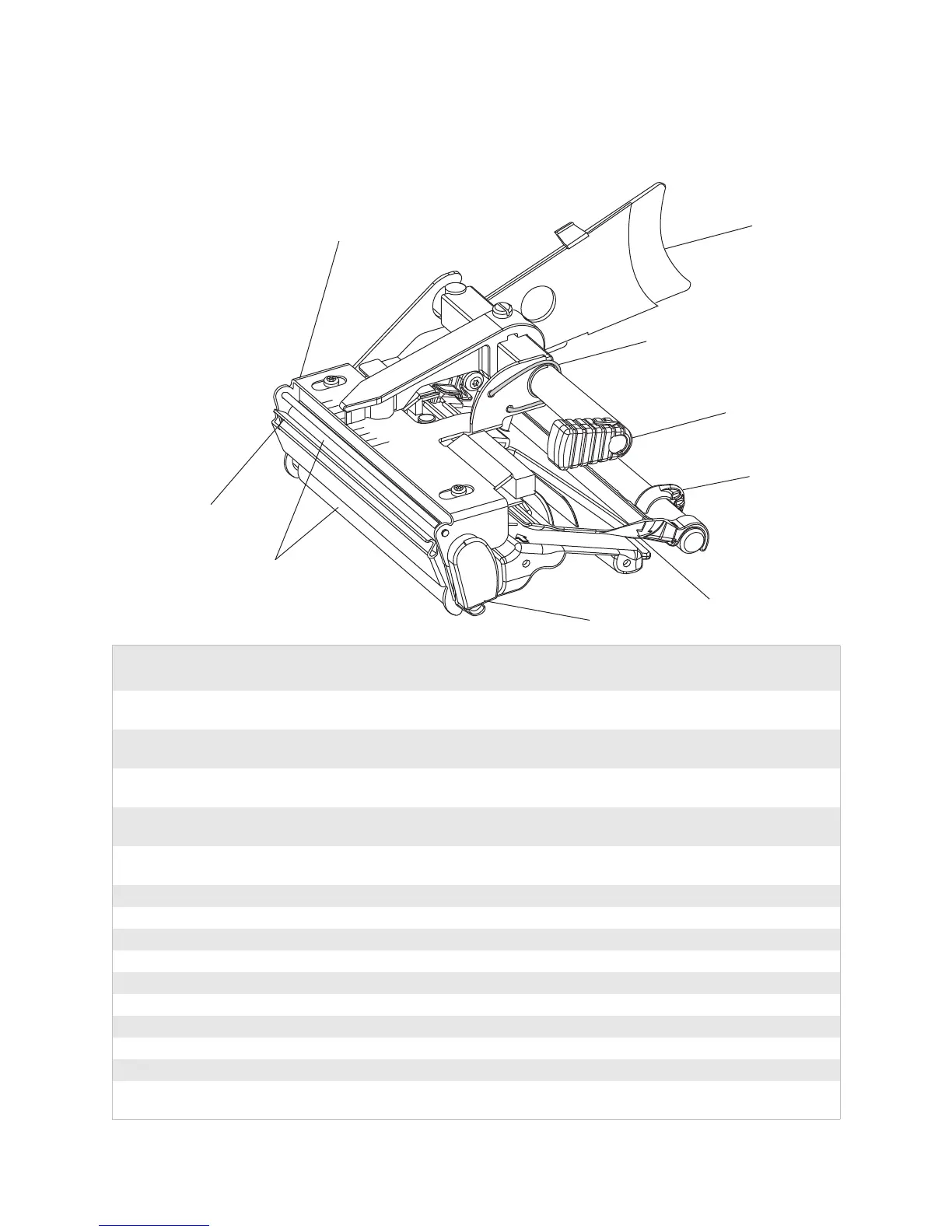

Print Mechanism, PF4i
Callout Part Number
ROHS Part
Number
Description Remarks
1 1-010043-90 1-010043-900 Thermal printhead assembly
(8 dots/mm)
Media thickness max 175µm
1 1-010043-91 1-010043-910 Thermal printhead assembly
(8 dots/mm)
Media thickness 170-220µm
1 1-010044-90 1-010044-900 Thermal printhead assembly
(11.81 dots/mm)
Media thickness max 175µm
1 1-010044-91 1-010044-910 Thermal printhead assembly
(11.81 dots/mm)
Media thickness 170-220µm
1 1-010045-90 1-010045-900 Thermal printhead assembly
(8 dots/mm) 3mm offset
2 1-206276-02 1-206276-03 Guide cover 4” PF4i
3 1-206423-90 1-206423-90 Spring thermal printhead kit Includes installation instructions
4 1-206301-90 1-206301-90 Cam handle
5 1-206284-01 Edge guide
6 1-206275-02 Paper guide (upper)
7 1-206248-01 Guide link
8 1-206203-95 1-206203-95 Platen roller/Line drive roller Includes bearing
9 1-206278-04 Tear bar
1-975587-01 Label stop sensor assembly Refer to page 16
1-206118-90 Paper guide assembly Paper guide (upper), LSS
assembly, guide cover
1
9
8
6
5
4
3
7
2
