Chapter 1 — Getting Started
4 IF2 Network Reader User’s Manual
About the Intermec Ready-to-Work Indicator
The blue Ready-to-Work indicator shows when an application is
communicating with the Basic Reader Interface (BRI) server or LLRP
client on the IF2. The next table explains the different states of the
Ready-to-Work indicator.
For more information on the BRI server, see “Configuring the BRI
Server” on page 43.
Understanding the Network and Power Ports
The IF2 network and power ports are located under the cable cover.

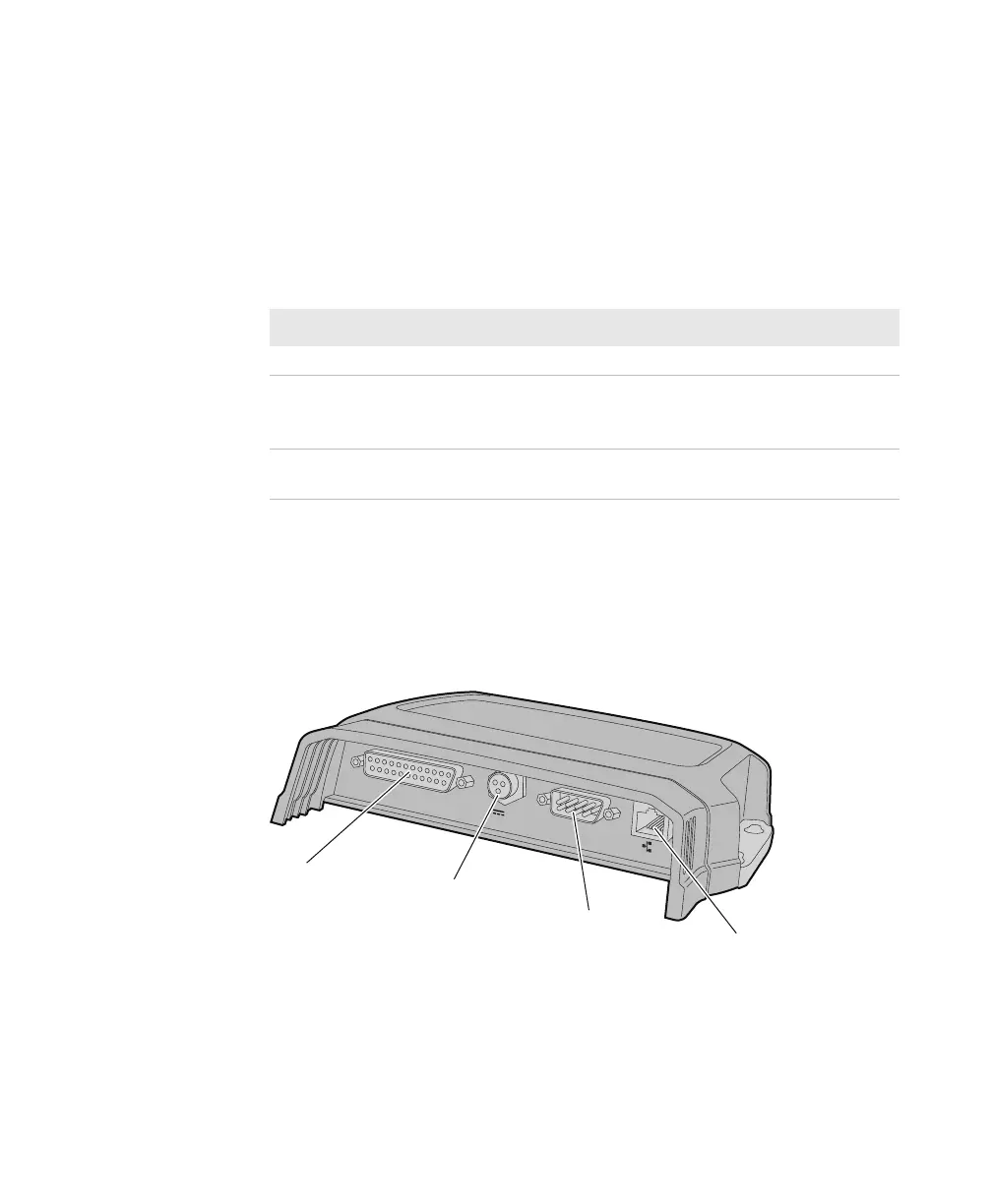

IF2 Network and Power Ports
Ready-to-Work Indicator Status Descriptions
Status Description
Off IF2 does not have power.
Blinking IF2 is initializing and not yet ready to use, or no application is
currently communicating with the IF2 BRI or LLRP server or
LLRP server.
Steady An application is communicating with the BRI server or an
LLRP client has connected to the IF2.
GPIO
IOIOI
GPIO port
DC power port
COM 1
Ethernet port
(high power POE)
