Chapter 4 — Managing, Troubleshooting, and Upgrading the IF
2
IF2 Network Reader User’s Manual
63
Rebooting the IF2
Y
ou can reboot the IF2 from the web browser interface
as described in
the next procedure. For example, you may need to reboot the IF2 to
enable changes in an application.
T
o
reboot the IF2
1
From the menu, click
Maintenance
>
Reboot

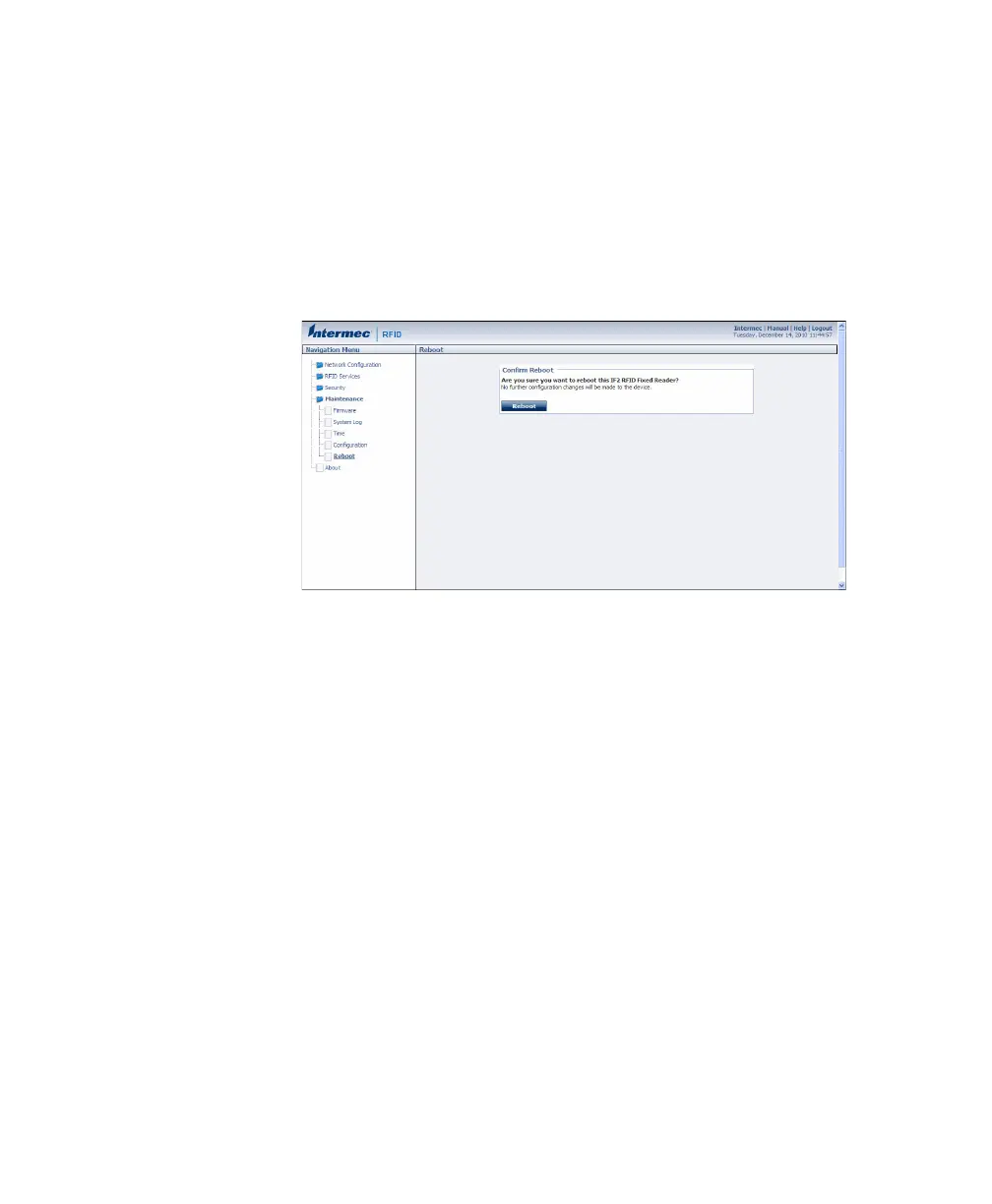

. The Reboot screen
appears.
2
Click
Reboot
to
reboot the IF2. Y
ou need to log in again after
the
IF2 reboots.
